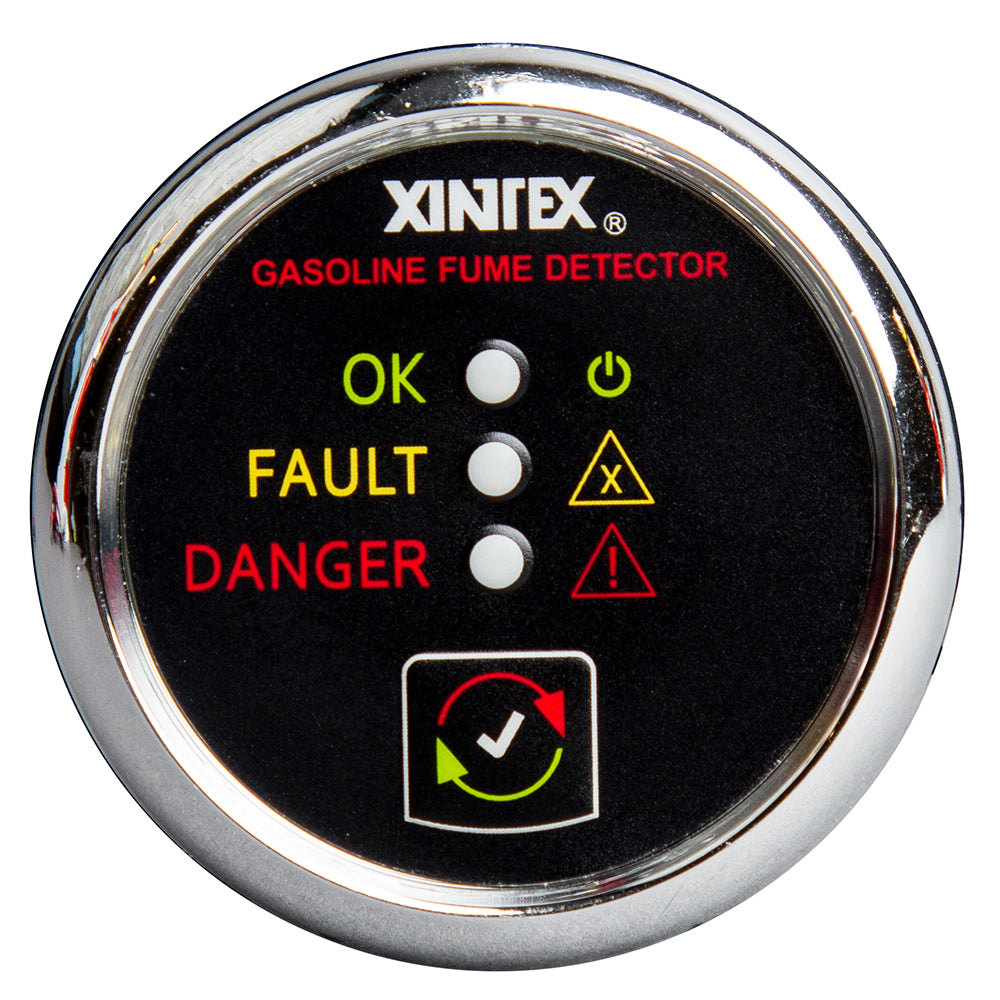

Fireboy-Xintex Gasoline Fume Detector - Chrome Bezel - 12/24V

Ensure the safety of your vessel with our Gasoline Fume Detector, featuring a sleek chrome bezel and compatibility with both 12V and 24V systems. Specifically designed for marine and boating applications, this detector continuously monitors gasoline fumes in critical areas such as engine compartments and fuel storage, providing peace of mind during your voyages.

Key Features

• Easy and straightforward installation tailored for marine environments
• Audible alarm and visual indicators alert you to the presence of Lower Explosive Level (LEL) gasoline fumes
• Monitors a single designated area, ensuring targeted safety
• Durable chrome bezel design complements marine aesthetics

Technical Specifications

Specification	Details
Operating Temperature	-40° to 185°F (-40° to 85°C)
Current Draw (Nominal)	55mA
Current Draw (Maximum)	95mA
Operating Voltage	9 to 30V DC
Alarm Horn	68 dB
Display Style	Round with Chrome Bezel
Display Dimensions	2-3/16" (5.6 cm) round
Cutout Dimension	2-1/16" (5.2 cm) round hole

Included in the Package

• Gasoline Fume Detector Unit
• Fuel Sensor (1)
• 20' Extension Cable
• Comprehensive Instruction Manual

Note: This product is sold individually.

Additional Specifications

Specification	Detail
Blower Relay	No
Fume Type	Gasoline
Generator Shutdown	No
Sensors Included	1
Voltage - Input Range (Volts)	9 to 30
Box Dimensions	4"H x 4"W x 8"L
Weight	1 lb
UPC	619749202530

Additional Resources

• Owner's Manual (PDF)
• Brochure (PDF)
