em-trak I100-X Small Vessel Tracker
em-trak I100-X Small Vessel Tracker is backordered and will ship as soon as it is back in stock.
Product Description
Product Description

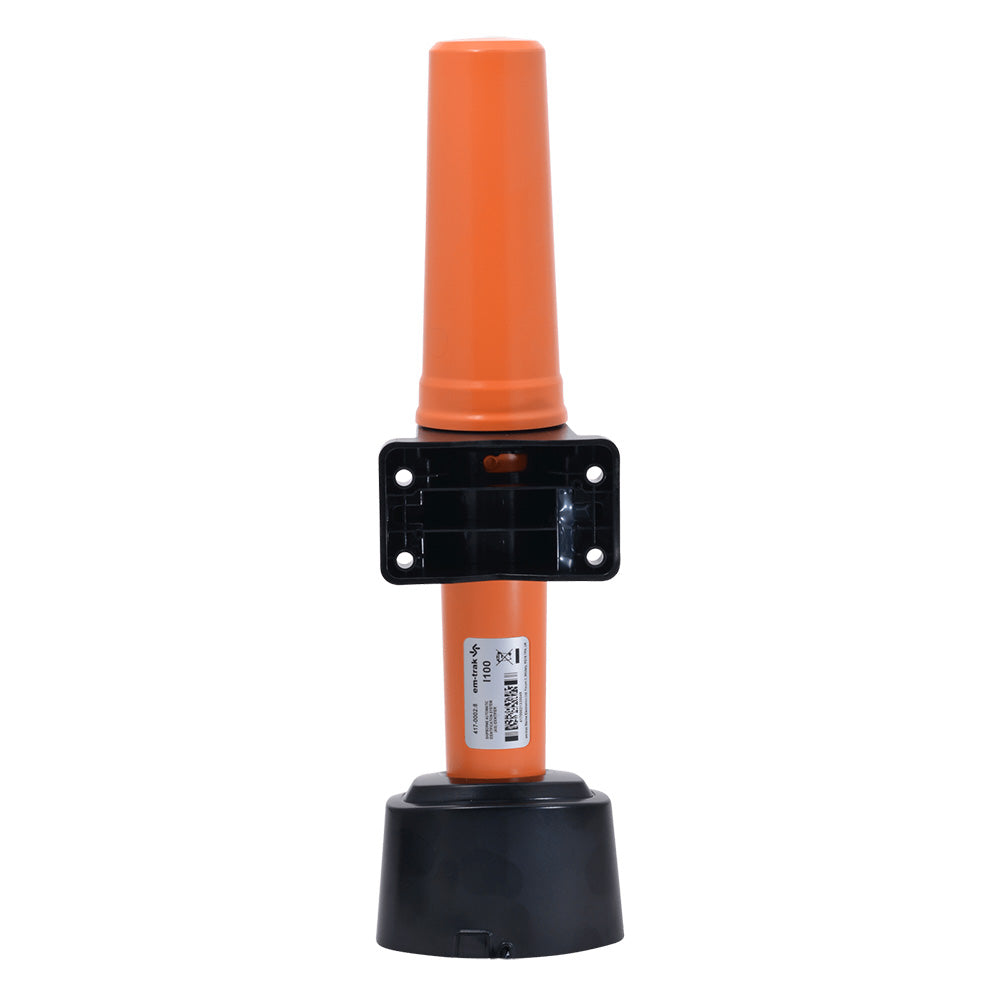

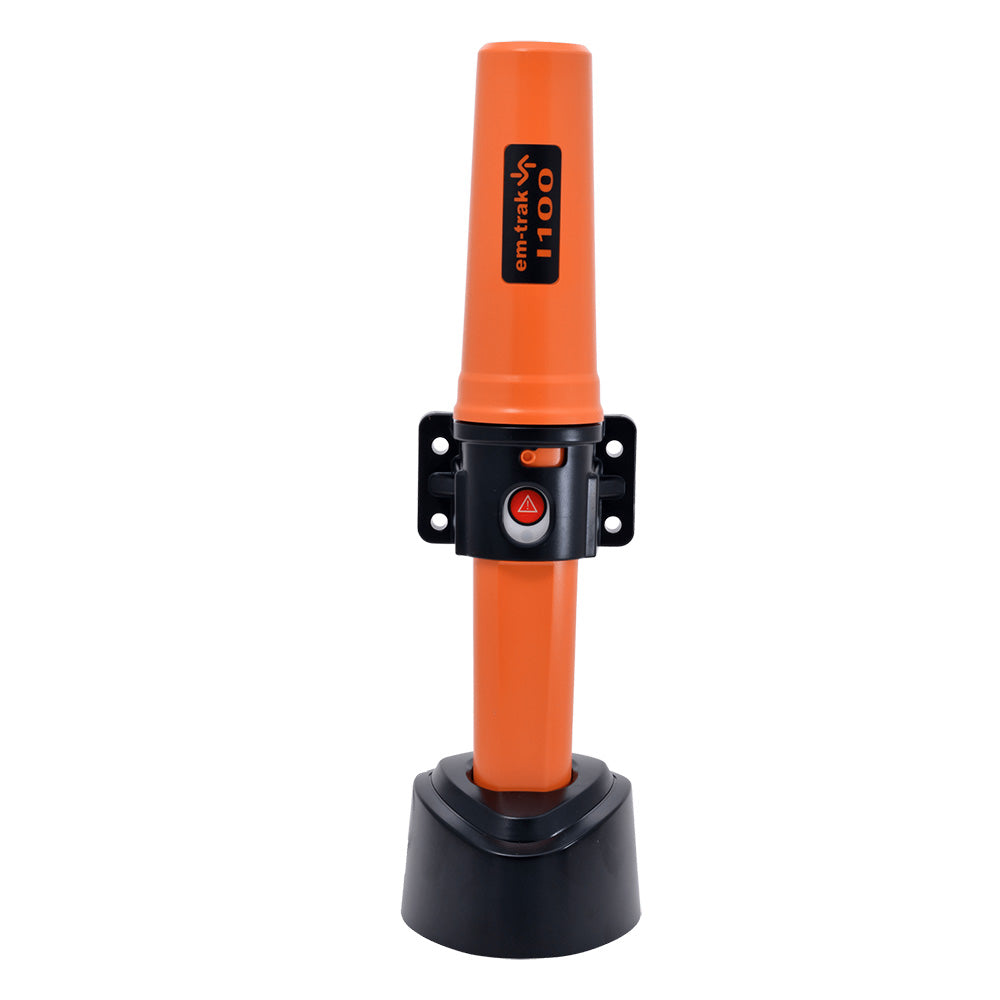

The I100-X Small Vessel Tracker is your ultimate solution for reliable and efficient vessel monitoring. Designed specifically for small boats, this ruggedized AIS Class B transponder ensures continuous tracking and seamless performance in all marine environments.
Reliable Power Options
The I100-X offers versatile power solutions to suit your vessel's needs. It features an internal rapid recharge battery that provides over 120 hours of uninterrupted operation. For permanent installations, you can connect it directly to your boat’s engine, battery, or solar power system, with the internal battery serving as a dependable backup.
Durable and Weatherproof Design
Built to withstand the harshest marine conditions, the I100-X is fully water and weatherproof with an IPx8 certification. Its rugged construction ensures reliable performance without the need for frequent maintenance, even in extreme temperatures, high humidity, or during exposure to shock and vibration.
Comprehensive Kit
Each I100-X package comes complete with everything you need for immediate installation and operation:
- I100-X Transponder
- Mounting Bracket
- Rapid Charging Dock
- Additional Accessories Available: Direct-connect Power Cable, Alert Indicator Box
Key Features
| Feature | Description |
|---|---|
| AIS Class B Certified | Ensures compliance with international AIS standards for reliable vessel tracking. |
| Extended Battery Life | Up to 5 days of continuous use on internal battery or continuous power from an onboard source. |
| Fast Recharge | Fully recharges in just 5 hours, minimizing downtime. |
| Rugged IPx8 Design | Guaranteed operational performance in water immersion up to 1.1 meters for 30 minutes. |
Physical & Environmental Specifications
| Specification | Details |
|---|---|
| Dimensions (H x W) | 370 x 67 mm |
| Weight | 355g |
| Operating Temperature | -25°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Ingress Protection | IPx8 (1.1m for 30 minutes) |
Electrical Specifications
| Specification | Details |
|---|---|
| Battery Capacity | 2300mAh |
| Battery Type | 3.7V Li-Ion rechargeable |
| Battery Life | 120 hours under default operating conditions |
Standards Compliance
- AIS Standards: IEC 62287-1 Ed. 3, ITU-R M.1371.5
- Product Safety: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013
- Environmental: IEC 60945 Ed. 4
- GNSS Performance: IEC 61108-1 Ed 2.0
GNSS Capabilities
| Specification | Details |
|---|---|
| Systems Supported | GPS & GLONASS |
| Channels | 72 |
| Time to First Fix (Cold Start) | 26 seconds |
VHF Transceiver Specifications
| Specification | Details |
|---|---|
| VDL Access Scheme | CSTDMA |
| Operating Frequency | 156.025MHz – 162.025MHz |
| Channel Bandwidth | 25kHz |
| Transmitters | 1 x transmitter |
| AIS Transmitter Power | 2W (33dBm radiated) |
User Interface
- Buttons: SOS
- Indicators: Status indicator
Charging Dock
| Specification | Details |
|---|---|
| Dimensions (H x W x D) | 110mm x 120mm x 78mm |
| Weight | 360g |
| Power Supply | 115V / 240V AC |
Configuration Dock
| Specification | Details |
|---|---|
| Dimensions (H x W x D) | 110mm x 120mm x 78mm |
| Weight | 360g |
| Power Supply | 115V / 240V AC |
| PC Interface | USB (cable supplied) |
What's Included
- 1 x Identifier I100-X
- 1 x Vessel Mounting Bracket and Fixings Pack
- 1 x Charging Dock
Note: A Configuration Dock (Product Code: 417-0074) is required to program the unit before deployment.
Additional Specifications
| Specification | Details |
|---|---|
| Frequency | 156.025MHz – 162.025MHz |
| Operational Life (Hours) | 120.00 |
| Box Dimensions | 5"H x 10"W x 17"L |
| Weight | 3.6 lbs |
