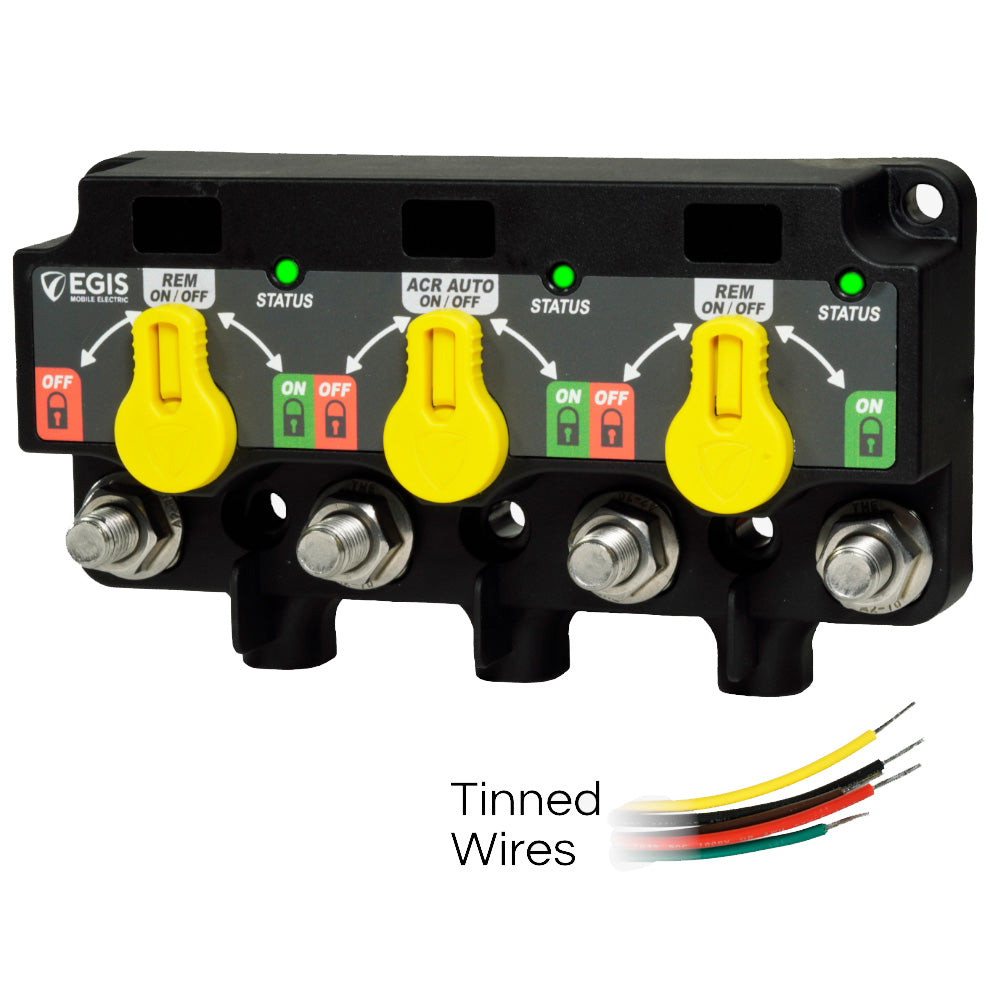

Egis XD Series Triple Flex 2 Relay-ACR-Relay w/Knobs Tinned Wires

The XD Series Triple Flex 2 Relay-ACR-Relay with Knobs & Tinned Wires by Egis is the ultimate solution for marine and boating electrical systems. Designed to streamline your boat’s power management, this compact relay module replaces three high-amp relays, saving space and enhancing the reliability of your vessel’s electrical setup.

Applications

• Enhances multi-battery switching and charge management on boats, enabling seamless dual battery load switching through outer relays and centralized automatic charging relay for efficient charge current distribution.
• Consolidates multiple automatic charging relays (ACR) into a single device, ideal for 3-4 battery marine systems. This consolidation significantly reduces off-state quiescent current draw, minimizes space usage, and eliminates the clutter of unnecessary interconnection cables.
• Supports expansion with link and cross-link busbars to additional dual, triple, or single XD relays, making it perfect for complex marine electrical systems with 3 or 4 battery setups using standard busbar interconnect accessories.

Features

• Bullet-Proof Construction: Sealed to IP67/IP6K9K standards, ensuring durability in harsh marine environments. Features high-temperature electronics, stainless steel cable lug studs, and large mounting holes compatible with 1/4-20 / M6 hardware.
• Intuitive Manual Control: Simplifies operation with clear manual override controls, providing immediate awareness of the relay’s state, a feature not available in competing marine relay solutions.
• Flexible Programming: Easily configurable via dip switches, allowing OEMs and marine installers to tailor each relay function to specific boating applications.
• Space and Weight Efficiency: Achieves a 35-75% reduction in mounting space and product weight through an advanced bi-stable solenoid design, ideal for space-constrained marine installations.
• Plug & Play Compatibility: Compatible with legacy competitor products using DTM/ATM connector pins, supporting single, dual, and triple relay options alongside ML Series bi-stable relays.
• Energy Efficient: Consumes 90-95% less off-state current compared to other marine relay systems, enhancing overall energy efficiency for your boat’s electrical setup.

Specifications

Specification	Details
Total Continuous Current (Amps)	500
Max Cranking Current (Amps)	1500
Mechanical Switching Life	1,000,000 Cycles
Voltage Range (VDC)	8-36
Off-State Current Draw (mA)	1.3
State Change Current	5A @ 12 VDC; 3A @ 24 VDC

Focal Features

LED Status Display

The front-facing LED indicator provides a clear visual status of the device, while the remote LED mirrors the on-device status for easy monitoring from different locations on your boat.

3-Position Manual Override

Allows you to force each relay open or closed and optionally lock the relay in your chosen state, ensuring precise control over your boat’s electrical systems.

40 Circuit Label Sheet Included

Equipped with recesses for the included weatherproof labels, facilitating easy identification of circuits and relays. Blank labels are available for custom marine applications.

Protective Cover Included

Safeguards terminal studs and cable terminals from accidental shorts, enhancing the safety and reliability of your boat’s electrical system.

Stainless Hardware

Constructed with high-quality stainless steel studs and self-locking flanged nuts to resist corrosion in the marine environment.

Programmable Settings

Configuration is straightforward with dip switches located under the protective cover. An easy-to-use configuration guide is provided to simplify customization for various boating applications.

Compact Footprint

The XD relays offer a high amp rating within a compact package, significantly reducing installation space requirements and optimizing your boat’s layout.

Integrated Vent

Features high-quality Gortex vents that regulate internal device pressure, preventing moisture entry and ensuring longevity even in harsh marine conditions.
