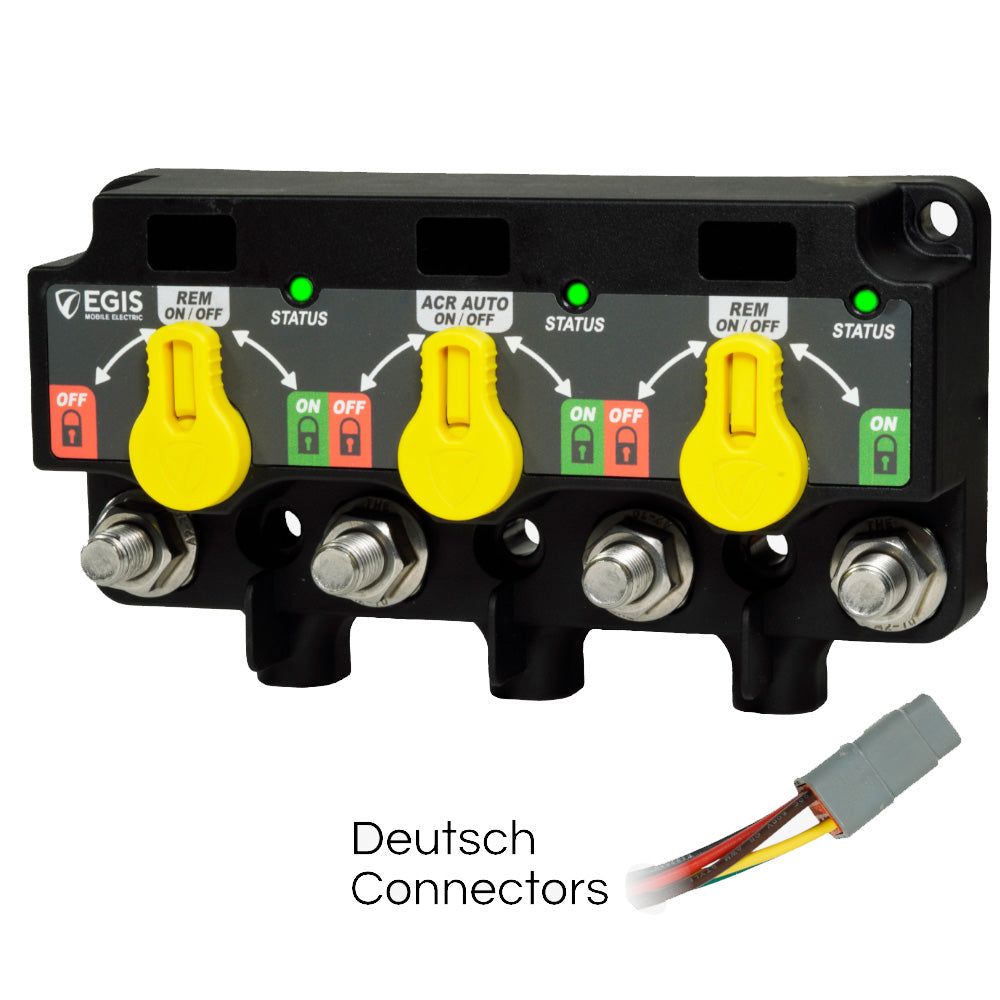

Egis XD Series Triple Flex 2 Relay-ACR-Relay w/Knobs 3X DTM Connector

The XD Series Triple Flex 2 Relay-ACR-Relay with Knobs & 3X DTM Connector by Egis is engineered specifically for marine and boating applications. This advanced relay consolidates three high-amp relays into a single compact module, optimizing space on your vessel, minimizing the need for external link cables, and ensuring reliable connections even in the harshest marine environments. With intuitive manual controls and clear operational indicators, maintaining and managing your boat's electrical system has never been easier.

Applications

• Multi-Battery Management: Perfect for boats requiring common multi-battery switching and charge management functions. Easily implement dual battery load switching through the outer relays and central automatic charging relay to efficiently share charge current.
• Consolidated Automatic Charging Relays: Ideal for 3-4 battery systems needing multiple ACRs. A single three-relay ACR significantly reduces off-state quiescent current draw, saves space, and eliminates unnecessary interconnection cables.
• Expandable Systems: Seamlessly expand your electrical setup with link and cross-link busbars compatible with additional dual, triple, or single XD relays, supporting 3 or 4 battery systems using standard busbar interconnect accessories.

Features

• Durable Construction: Built to withstand marine conditions with an IP67/IP6K9K sealed design, high-temperature resistant electronics, stainless steel cable lug studs, and large mounting holes for versatile installation using 1/4-20 / M6 hardware.
• Intuitive Manual Control: Features a user-friendly manual override option that enhances operational awareness, allowing you to easily see and control the relay state, a feature not typically available in competing products.
• Flexible Programming: Easily programmable via dip switches, granting significant flexibility for OEMs and marine installers to customize relay functions according to specific vessel requirements.
• Space and Weight Efficiency: Achieve a 35-75% reduction in mounting space and product weight thanks to the advanced bi-stable solenoid design and multiple solenoid assemblies, which replace traditional bulky electrical system layouts.
• Compatibility: Plug and play with legacy competitor products. Available in single, dual, and triple relay configurations with DTM/ATM connector pins compatible with ML Series bi-stable relays. This model includes 3x DTM connectors for expanded functionality.
• Energy Efficient: Consumes 90-95% less off-state current compared to competitive relay systems, reducing energy drain and enhancing overall system efficiency.

Specifications

Attribute	Details
Total Continuous Current Amps	500
Max Cranking Current (Amps)	1500
Mechanical Switching Life	1,000,000 Cycles
Voltage Range (VDC)	8-36
Off-State Current Draw (mA)	1.3
State Change Current	5A @ 12 VDC; 3A @ 24 VDC

Focal Features

LED Status Display

The easy-to-see front-facing LED indicator provides real-time visual status of the device, while the remote LED mirrors the on-device indicator, ensuring you can monitor the relay status from multiple locations on your boat.

3-Position Manual Override

Force each relay to open or close with the 3-position manual override knob. Optionally, lock the relay in either the open or closed position for secure and stable operation during long voyages.

40 Circuit Label Sheet Included

Organize and identify your circuits easily with the included weatherproof label sheet. Convenient recesses hold the labels securely, and the blank labels allow for customization to fit your specific marine electrical setup.

Protective Cover Included

Safeguard terminal studs and cable edges from accidental shorts with the included protective cover, ensuring safe and reliable operation even in wet and dynamic marine environments.

Stainless Hardware

Resist corrosion and ensure longevity with high-quality stainless steel studs and self-locking flanged nuts, designed to withstand the corrosive effects of saltwater and marine atmospheres.

Programmable Settings

Easily configure relay settings using dip switches located under the protective cover. The included configuration guide simplifies the setup process, allowing for tailored settings to accommodate a wide range of marine applications.

Compact Footprint

The XD relays offer a high amp rating within a smaller package compared to competitive solutions, minimizing installation space requirements and optimizing your boat's electrical layout.

Integrated Vent

Maintain internal device integrity with high-quality Gortex vents that regulate pressure and prevent moisture entry, ensuring long product life even in harsh, moisture-prone marine environments.
