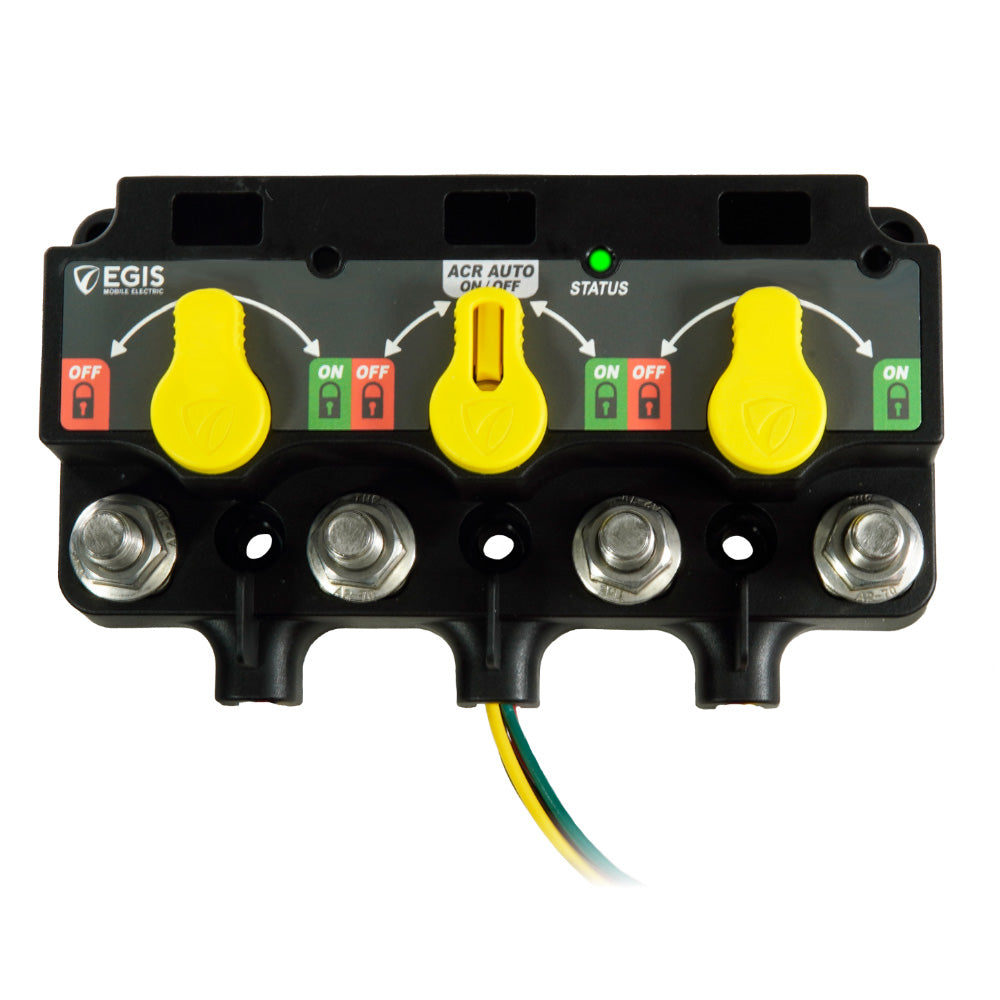

Egis XD Series Triple Flex 2 Mechanical Switch-ACR-Mechanical Switch w/Knobs DTM Connector

Enhance your marine electrical system with the XD Series Triple Flex 2 Mechanical Switch-ACR. Designed specifically for marine and boating applications, this advanced mechanical switch consolidates three high-amp relays into a single, compact module. Save valuable space on your vessel while boosting reliability and performance.

Key Applications

• Optimize multi-battery management with integrated load switching and charge sharing capabilities.
• Expand your system with link and cross-link busbars, supporting 3 to 4 battery setups using standard marine interconnect accessories.

Outstanding Features

• Durable Construction: Sealed to IP67/IP6K9K standards, the XD Series withstands harsh marine environments. Features high-temperature-resistant electronics and stainless steel cable lug studs for lasting performance.
• Intuitive Manual Control: Simplifies operation with clear status indicators, providing unmatched clarity on manual override states compared to competitive solutions.
• Easy Programming: Customize relay functions effortlessly using dip switches, offering flexibility tailored for OEMs and marine installers.
• Compact Design: Advanced bi-stable solenoids reduce mounting space by 35-75%, allowing for more efficient marine installations.
• Legacy Compatibility: Plug and play with legacy products, compatible with ML Series bi-stable relays via the DTM connector.
• Energy Efficient: Consumes 90-95% less off-state current, optimizing your vessel’s power usage and extending battery life.

Technical Specifications

Specification	Details
Total Continuous Current Amps	500
Max Cranking Current (Amps)	1500
Mechanical Switching Life	1,000,000 Cycles
Voltage Range (VDC)	8-36
Off-State Current Draw (mA)	1.3
State Change Current	5A @ 12 VDC; 3A @ 24 VDC

Highlighted Features

LED Status Display

The front-facing LED indicator provides immediate visual status, while the remote LED mirrors the on-device indicator for convenient monitoring from different locations on your vessel.

3-Position Manual Override

Easily force each relay to open or close, with the option to lock the relay in a specific state, ensuring secure and reliable manual control in any boating condition.

40 Circuit Label Sheet Included

Includes weatherproof labels with convenient recesses for effortless circuit and relay identification. Blank labels are available for customized marine applications.

Protective Cover

Protects terminal studs and cable edges from accidental shorts, ensuring safe and reliable operation even in dynamic marine environments.

Stainless Hardware

Equipped with high-quality stainless steel studs and self-locking flanged nuts to resist corrosion, making it ideal for the harsh, salty conditions of marine settings.

Programmable Settings

Configure settings easily using dip switches located under the protective cover. A user-friendly configuration guide simplifies custom setups for a wide range of marine applications.

Smaller Footprint

The XD Series offers a high amp rating in a compact package, minimizing installation space requirements and making it perfect for tight marine electrical setups.

Integrated Vent System

Features high-quality Gortex vents that regulate internal pressure, prevent moisture ingress, and ensure long-lasting performance in harsh marine environments.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Download Quick Guide (PDF)
