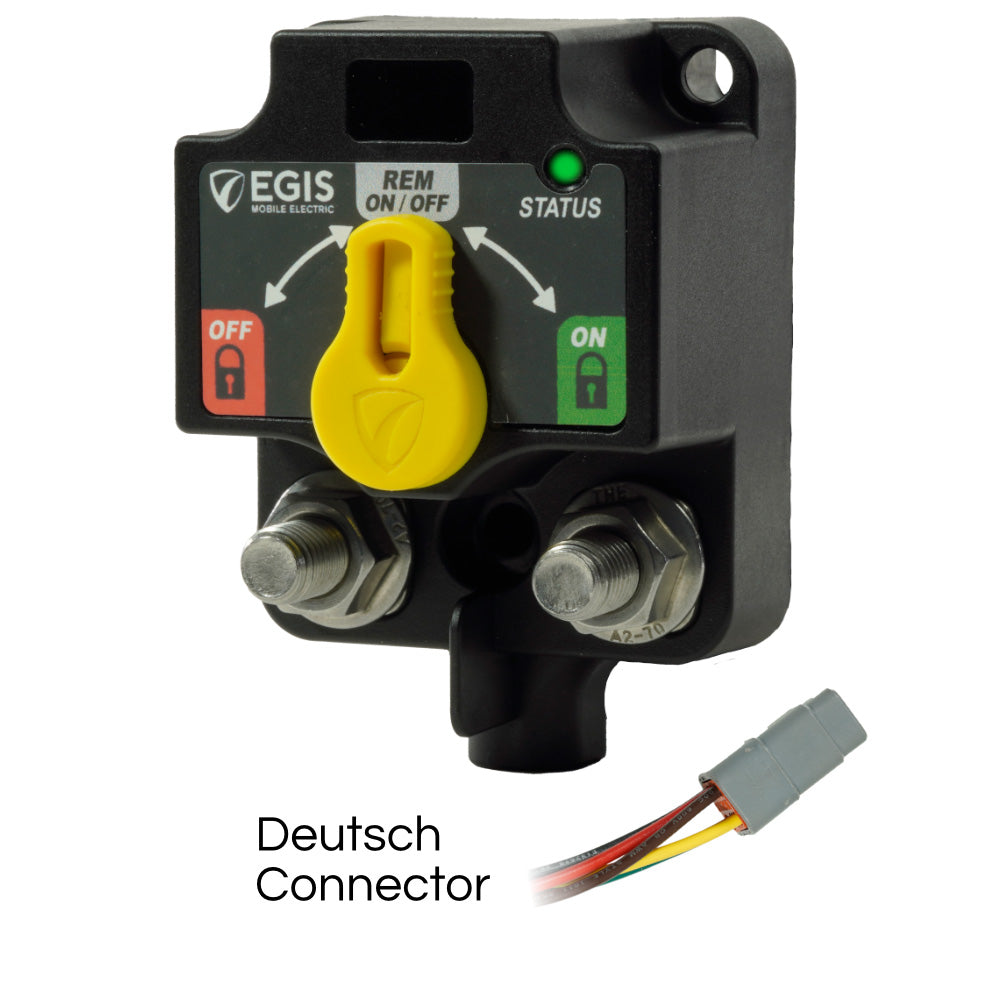

Egis XD Series Single Flex 2 Relay-ACR w/Knobs - DTM Connector

Introducing the XD Series Single Flex 2 Relay-ACR with Knobs and DTM Connector – the ultimate solution for marine electrical systems. Designed specifically for boats and marine environments, this robust relay optimizes space and weight while delivering unparalleled performance and reliability.

Product Overview

The XD Series Single Flex 2 Relay-ACR from Egis revolutionizes marine electrical setups by reducing mounting space and product weight by up to 75%. Its advanced bi-stable solenoid design, coupled with multiple solenoid assemblies, streamlines common electrical layouts. Expandable with link and cross-link busbars, it supports additional dual, triple, or single XD relays, accommodating 2 or 3 battery systems using standard busbar interconnect accessories.

Applications

• Upgrade or replace legacy solenoids and remote battery switches seamlessly
• Wire-for-wire compatible with Blue Sea ML-solenoid and ML-remote battery switch products
• Forward-facing input studs facilitate easy wiring, while a protective cover with integrated label recesses ensures easy identification and shields against short circuits

Key Features

• Durable Construction: Bullet-proof design sealed to IP67/IP6K9K standards, with high-temperature electronics and materials allowing versatile mounting options.
• Stainless Steel Hardware: Features stainless steel cable lug studs and large mounting holes compatible with 1/4-20 / M6 attachment hardware.
• Manual Control: Intuitive manual override option simplifies operation and enhances visibility of relay states – a unique feature not found in competing products.
• Programmable Flexibility: Easily configurable using dip switches, providing OEMs and installers with significant flexibility for diverse applications.
• Plug-and-Play Compatibility: Compatible with legacy competitor products through DTM/ATM connector pins, supporting single, dual, and triple relay configurations.
• Energy Efficient: Consumes 90-95% less off-state current compared to competing products, reducing power usage and enhancing system efficiency.

Specifications

Parameter	Specification
Total Continuous Current (Amps)	500
Max Cranking Current (Amps)	1500
Mechanical Switching Life	1,000,000 cycles
Voltage Range (VDC)	8-36
Off-State Current Draw (mA)	1.3
State Change Current	5A @ 12 VDC; 3A @ 24 VDC

Focal Features

LED Status Display

The easy-to-see front-facing LED indicator provides visual device status, while the remote LED replicates the on-device LED for enhanced monitoring.

3-Position Manual Override

Allows you to force each relay open or closed, with the option to lock the relay in either position, ensuring control and flexibility in your marine electrical system.

40 Circuit Label Sheet Included

Integrated recesses accommodate the included weatherproof label set, simplifying circuit and relay identification. Blank labels are available for custom applications.

Protective Cover Included

Safeguards terminal studs and cable terminal edges, preventing inadvertent shorts and ensuring the safety of your electrical connections.

Stainless Hardware

Equipped with corrosion-resistant stainless steel studs and self-locking flanged nuts, ensuring longevity even in harsh marine environments.

Programmable

Configure settings easily using dip switches located under the protective cover. A user-friendly configuration guide on the reverse side simplifies custom settings for a wide range of applications.

Smaller Footprint

The XD Series relays deliver high amp ratings in a compact package, minimizing installation space requirements on your vessel.

Integrated Vent

High-quality Gortex vents regulate internal device pressure, preventing moisture entry and ensuring long product life in demanding marine conditions.
