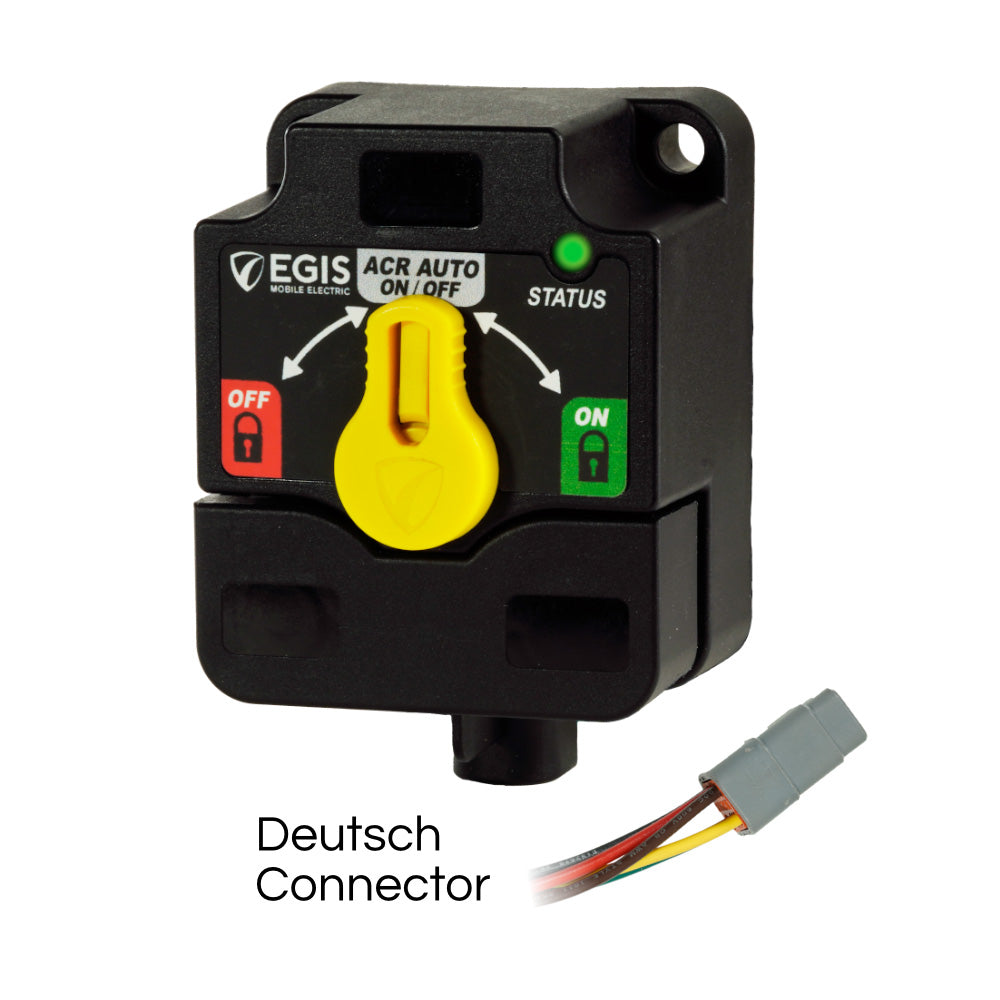

Egis XD Series Single Flex 2 ACR-Relay w/Knobs - DTM Conn

The XD Series Single Flex 2 ACR-Relay with Knobs by DTM Conn is engineered specifically for marine and boating applications, providing superior performance and reliability for your vessel's electrical system. Its innovative bi-stable solenoid design minimizes mounting space and reduces overall weight, making it an ideal choice for optimizing power distribution on boats of all sizes.

Applications

• Supports multiple engines or independent charge systems by incorporating two independent start or engine isolation inputs, allowing isolation of charge sources when both are active to maximize charging performance.
• Expandable with link and cross-link busbars to additional dual, triple, or single XD relays, supporting 2 or 3 battery systems with standard busbar interconnect accessories.

Features

• Durable Marine Construction: Bullet-proof design sealed to IP67/IP6K9K standards with high-temperature electronics and materials, allowing secure mounting in any marine environment. Equipped with stainless steel cable lug studs and large mounting holes compatible with 1/4-20 / M6 attachment hardware.
• Intuitive Manual Control: Features an easy-to-use manual override option that simplifies operation and enhances awareness of the relay's state, indicating whether it is locked off or locked on—a unique advantage over competitive solutions.
• Programmable Flexibility: Simple dip switch programmability provides significant flexibility for OEMs and installers, allowing customization of each relay function to meet specific marine electrical system requirements.
• Plug-and-Play Compatibility: Compatible with legacy competitor products, offering single, dual, and triple relay options with DTM/ATM connector pins for seamless integration with ML Series bi-stable relays.
• Energy Efficient: Consumes 90-95% less off-state current compared to competitive products, reducing overall energy consumption and enhancing the efficiency of your boat’s electrical system.

Specifications

Parameter	Value
Total Continuous Current Amps	500
Max Cranking Current (Amps)	1500
Mechanical Switching Life	1,000,000 Cycles
Voltage Range (VDC)	8-36
Off-State Current Draw (mA)	1.3
State Change Current	5A @ 12 VDC; 3A @ 24 VDC

Key Features

LED Status Display

The clear, front-facing LED indicator provides real-time visual status of the device, while the remote LED replicates the local on-device LED for convenient monitoring from a distance.

3-Position Manual Override

Easily force each relay to open or close and optionally lock the knob in either position to maintain the relay in a locked-off or locked-on state, providing enhanced control over your boat’s electrical system.

40 Circuit Label Sheet Included

Included weatherproof label set features convenient recesses for easy circuit and relay identification, with additional blank labels available for custom applications.

Protective Cover Included

Protects terminal studs and cable terminal edges from accidental shorts to each other or to ground, ensuring safe and reliable operation in marine environments.

Stainless Hardware

High-quality stainless steel studs and self-locking flanged nuts resist corrosion, ensuring longevity and reliability even in harsh marine conditions.

Programmable via Dip Switches

Located under the protective cover, the dip switches are accompanied by an easy-to-use configuration guide on the reverse, making it simple to customize settings for a wide variety of marine applications.

Compact Design

The XD Series relays offer a high amp rating within a compact footprint, minimizing installation space requirements and simplifying integration into your boat’s electrical system.

Integrated Ventilation

Equipped with high-quality Gortex vents, the relay regulates internal device pressure to prevent moisture entry through seals, ensuring long product life even in challenging marine environments.
