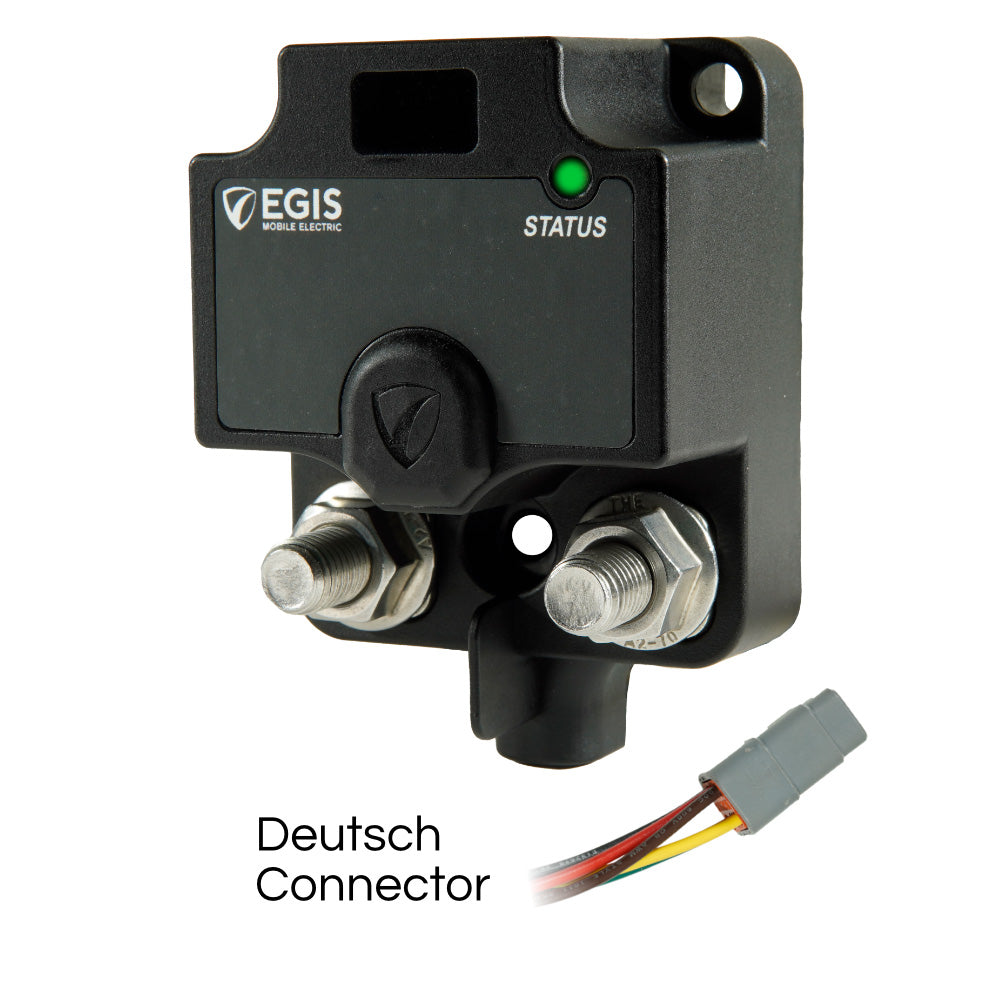

Egis XD Series Single Flex 2 ACR-Relay - DTM Connector

The XD Series Single Flex 2 ACR-Relay with DTM Connector is engineered for marine and boating applications, delivering exceptional performance and reliability. Its advanced bi-stable solenoid design significantly reduces mounting space and product weight, while intelligently managing multiple battery systems to ensure optimal charging and isolation when necessary.

Key Benefits

Designed specifically for the demanding marine environment, the XD Series ACR-Relay offers:

• 35-75% reduction in mounting space and product weight
• Elimination of dead-start batteries by sharing charges between two batteries
• Isolation of batteries when no charge sources are present

Applications

• Supports multiple engines or independent charge systems by incorporating two independent start or engine isolation inputs, allowing charge sources isolation when both are active to maximize charging performance.
• Expandable with link and cross-link busbars to additional dual, triple, or single XD relays, supporting 2 or 3 battery systems with standard busbar interconnect accessories.

Features

• Durable Construction: Bullet-proof design sealed to IP67/IP6K9K standards, made with high-temperature electronics and materials. Includes stainless steel cable lug studs and large mounting holes compatible with 1/4-20 / M6 hardware.
• Manual Control Option: Intuitive manual override simplifies operation and increases awareness of the relay's state, a feature not available in competitive solutions.
• Programmable: Easily configurable via dip switches, offering significant flexibility for OEMs and installers.
• Plug-and-Play Compatibility: Compatible with Legacy competitor products through DTM/ATM connector pins, supporting single, dual, and triple relay options.
• Energy Efficient: Consumes 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality.

Specifications

Parameter	Value
Total Continuous Current Amps	500
Max Cranking Current (Amps)	1500
Mechanical Switching Life	1,000,000 cycles
Voltage Range (VDC)	8-36
Off-State Current Draw (mA)	1.3
State Change Current	5A @ 12 VDC; 3A @ 24 VDC

Focal Features

LED Status Display

The easy-to-see front-facing LED indicator provides visual device status, while the remote LED replicates the on-device LED for convenient monitoring.

3-Position Manual Override

Force each relay open or closed, and optionally lock the relay in either position to ensure consistent operation.

40 Circuit Label Sheet Included

Convenient recesses for the included weatherproof label set make circuit and relay identification straightforward. Blank labels are available for custom applications.

Protective Cover Included

Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground, enhancing safety and reliability.

Stainless Hardware

Corrosion-resistant stainless steel studs and self-locking flanged nuts ensure durability in harsh marine environments.

Programmable

Configure settings easily via dip switches located under the protective cover. An intuitive configuration guide on the reverse side simplifies custom settings for a wide variety of applications.

Smaller Footprint

The XD relays offer a high amp rating in a compact package, minimizing installation space requirements compared to competitive solutions.

Integrated Vent

High-quality Gortex vents regulate internal device pressure, eliminating moisture entry across seals and ensuring long product life in harsh environments.
