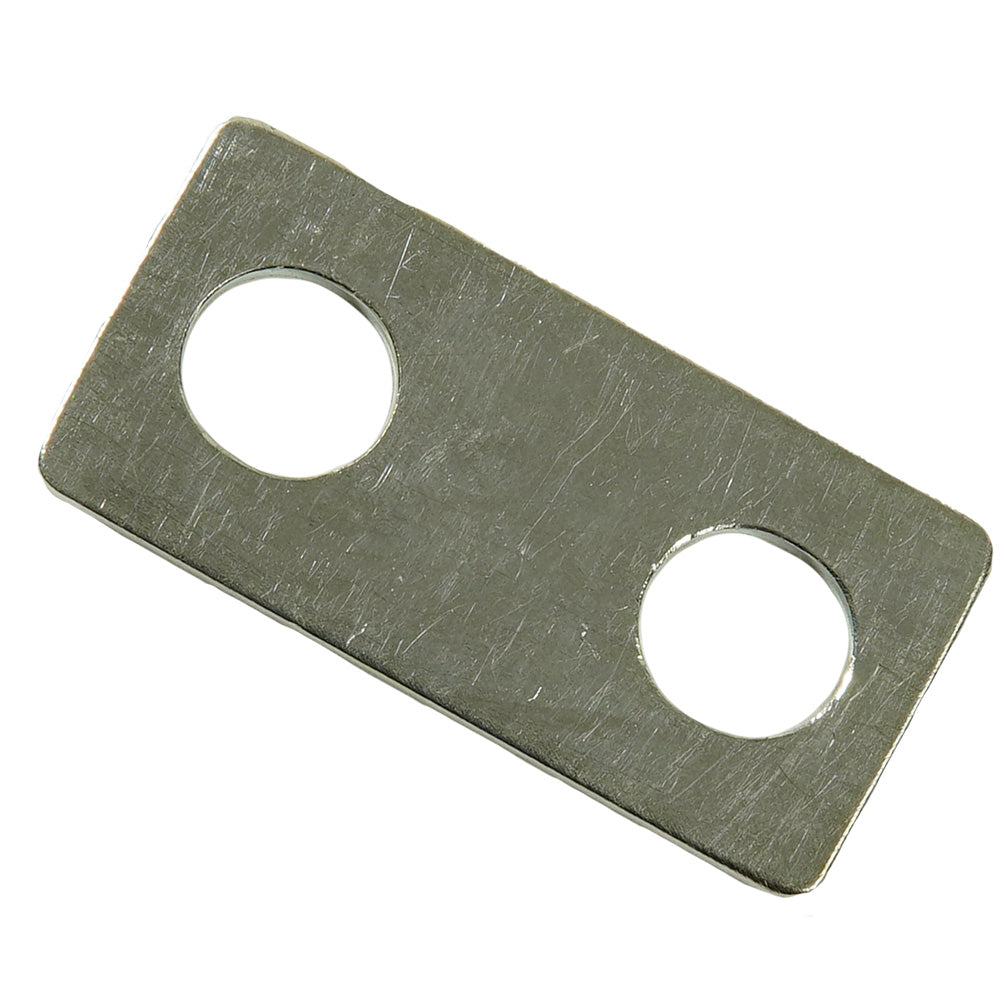

Egis XD Relay Link Busbar

The XD Relay Link Busbar is an essential component for marine electrical systems, providing robust and reliable connectivity for your boat's circuitry. Crafted from tin-plated copper, it ensures long-lasting performance even in harsh marine environments.

Applications

Designed specifically for marine and boating applications, the XD Relay Link Busbar allows you to seamlessly connect XD Single, Dual, and Triple XD relays in various configurations. It can also integrate with Egis's 8700 Mechanical Disconnect, enabling compact installations that enhance circuit switching and battery management on your vessel.

Features

• Exceptional electrical conductivity with anti-corrosion tin plating ensures reliable connections in marine conditions
• Durable construction withstands high amperage loads and resists deformation from nut-tightening, perfect for the demanding marine environment
• Space-saving design allows linking of XD Relays for expanded functionality while maintaining a clean and professional installation

Specifications

Continuous Current (Amps)	500
Maximum Voltage (VDC)	72
Material	Tin-plated copper
Size (L x W)	47.8mm x 22.8mm
Thickness	2.8mm (1/8”)
Terminal Stud Hole Size	10.5mm (3/8”)
