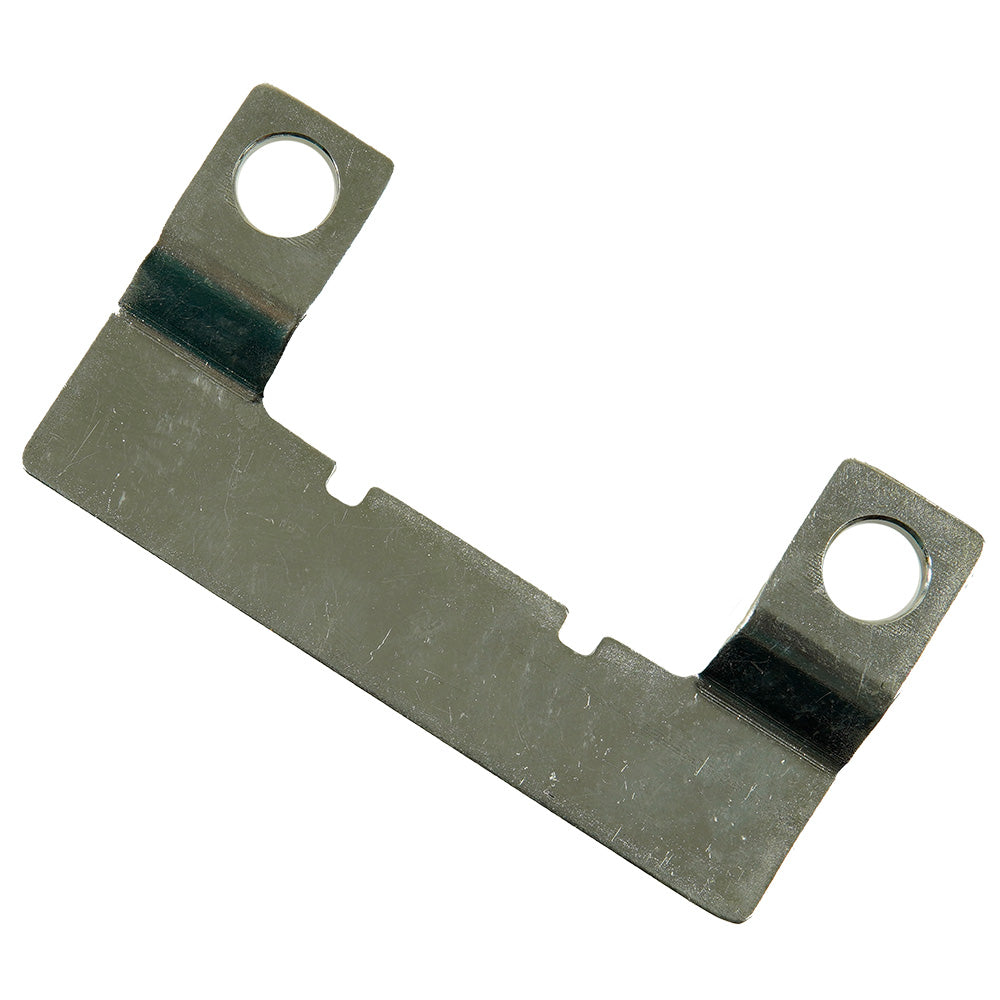

Egis XD Relay Cross-Over Bus Bar

The XD Relay Cross-Over Bus Bar is a vital component for optimizing your marine electrical system. Designed specifically for boating applications, it enables seamless integration and management of multiple Egis XD Relays, ensuring efficient power distribution and reliable battery management on your vessel. Whether you're configuring single, dual, or triple relays or connecting to the Egis 8700 Mechanical Disconnect, this bus bar provides a compact and robust solution for your boat's circuit switching needs.

Key Features

• Tin-Plated Copper Construction: Offers exceptional electrical conductivity and anti-corrosive properties, ensuring long-term performance even in the harsh marine environment.
• Protective Insulation: High-quality insulation prevents accidental short circuits between connected XD relays, enhancing the safety and reliability of your boat’s electrical system.
• Flexible Configuration: Supports multiple relay configurations, allowing you to customize your electrical setup to meet the specific demands of your marine application.
• Easy Integration: Compatible with Egis XD Single, Dual, and Triple Relays, as well as the Egis 8700 Mechanical Disconnect, facilitating a streamlined installation process.

Technical Specifications

Continuous Current (Amps)	500
Maximum Voltage (VDC)	72
Material	Tin-plated copper
Dimensions (L x W)	90 x 47 mm
Thickness	2.8 mm (1/8")
Terminal Stud Hole Size	10.5 mm (3/8”)

Application Benefits

• Enhanced Power Management: Efficiently manage and distribute power across multiple circuits, reducing the risk of overloads and ensuring consistent performance.
• Space-Saving Design: Compact installation minimizes clutter in your boat’s electrical panel, freeing up space for other critical components.
• Durability: Built to withstand the vibrations and moisture commonly found in marine environments, providing reliable performance over time.
• Easy Maintenance: Simplified wiring and connection points make troubleshooting and maintenance tasks straightforward.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
