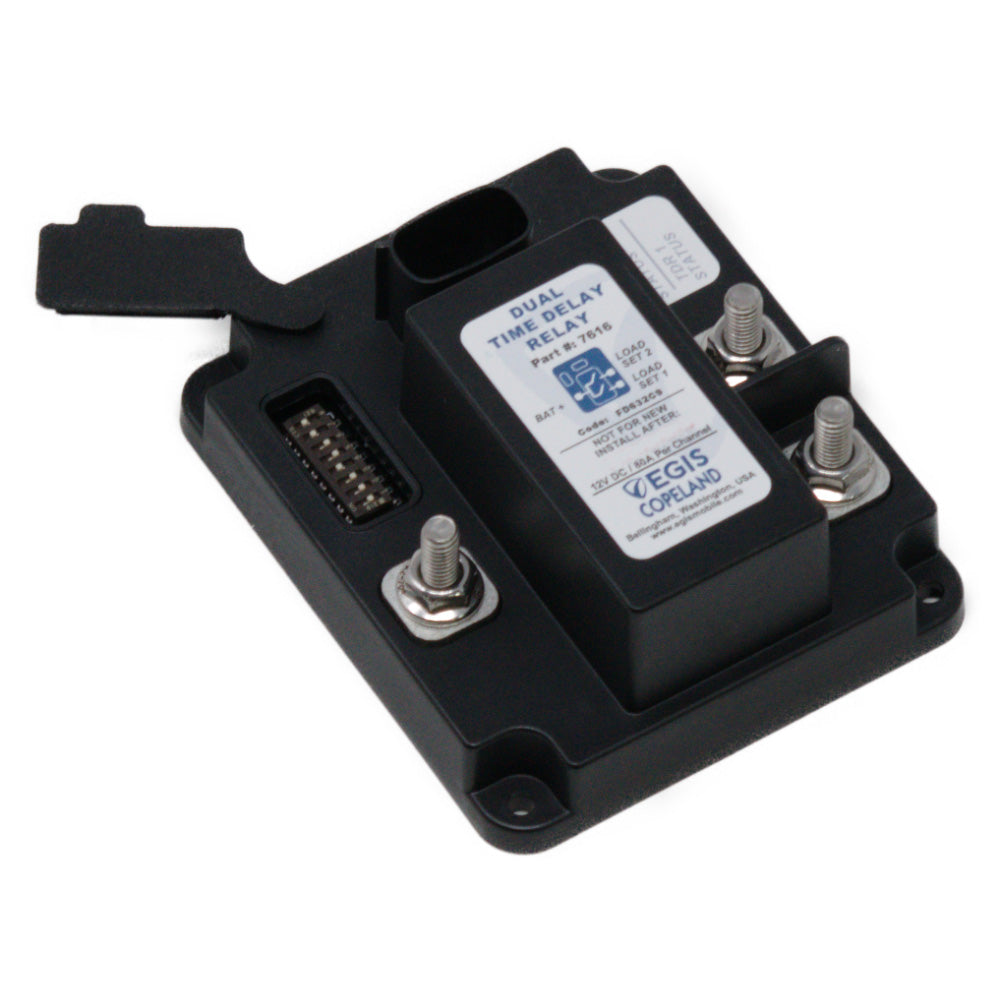

Egis TDR Series Dual Output Time Delay Relay 12V (2 x 80A)

Ensure your boat's battery remains reliable and your onboard electronics stay protected with the TDR Series Dual Output Time Delay Relay 12V (2 x 80A). Specifically designed for marine applications, this dual-time relay effectively prevents battery drain from additional equipment loads when your engine is off, enhancing your vessel's operational readiness.

Why Choose the TDR Series Dual Output Time Delay Relay?

Marine environments demand robust and reliable electrical solutions. The TDR Series offers superior performance, minimizing the risk of dead batteries and safeguarding your sensitive onboard electronics. Whether you're powering video systems, navigation tools, or other critical equipment, this relay ensures everything operates smoothly without compromising your battery life.

Applications

• Supports on-board video systems during periods when the vessel is not in use, allowing extended downloads while systematically shutting down less critical equipment.
• Protects sensitive marine electronics with optional under/over voltage shutdown and start event isolation, ensuring longevity and reliability.

Features

• Battery Protection: Prevents vehicle downtime caused by dead batteries with an ultra-low off-state current draw of just 1.3 mA.
• Easy Installation: Features a sealed plug and optional long wire leads, replacing multiple control units and high-amp relays to reduce installation time, costs, and potential failure points.
• Additional Low-Amp Output: Maintains 24-hour memory circuits or directs other equipment to shut down.
• Durable Construction: Sealed unit with high-temperature materials allows for versatile mounting on your vessel, complemented by integrated thermal overload protection.
• OEM Standards: Meets stringent Original Equipment Manufacturer standards for electrical transient self-protection.
• Adjustable Time Delay: Customize the OFF time delay from 0 seconds up to 4 hours to suit your specific needs.
• Kill Switch Control: Offers kill switch input options to prevent inadvertent load activation, facilitate vehicle maintenance, and enable emergency shutdowns.
• Flexible Control Options: Control via ignition key, alternator voltage sense, or a combination of both for enhanced flexibility.
• Warranty: Comes with a 4-year industry-leading warranty for peace of mind.

Specifications

Parameter	Details
Maximum Current	Continuous: 80 Amps DC per Output (160 A Total); Intermittent: 120 Amps DC (5 Minutes) per Output
Off-State Current Draw	1.5 mA (less than 1 Amp-hr battery dissipation per month of standby)
Operating Voltage	12 Vdc Nominal (8 - 18 Vdc)
Operating Temperature	-40°C to 85°C
Time Delay Options	5 Seconds to 4 Hours via Dip Switches
Environmental Protection	Waterproof to IP66, IP6K9K; Ignition Protected to ISO 8846
Optional Features	Input stud voltage sense trigger for relay OFF; Under-voltage and over-voltage load protection

Key Features

Top Side Dip Switches

Easily accessible after installation for programming time delays and activating features. Protected by a secure, self-retained cover to prevent accidental changes.

Stainless Steel Self-Locking Hardware

Constructed with 100% non-ferrous, corrosion-resistant materials. All attachment screws and nuts are self-locking to ensure a secure and durable installation.

Integral I/O Connector

Features a Molex MX-150 connector for rapid and accurate assembly, eliminating the risk of poor field connections and ensuring reliable performance.

Standard and Optional Harnesses

Includes mating plugs with 2 feet of ground and ignition wire. Optional harnesses with additional outputs and alternative wire lengths are available to meet diverse installation needs.

Easy Integration with Fuse Blocks

Compatible with CT and RT series Fuse Blocks through optional EasyLink bus bars, reducing space requirements and connection costs.

LED Diagnostics

Provides visual indicators for pending relay OFF events due to under/over voltage or external off triggers, as well as output on/off status for easy monitoring.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Download the Quick Guide (PDF)
