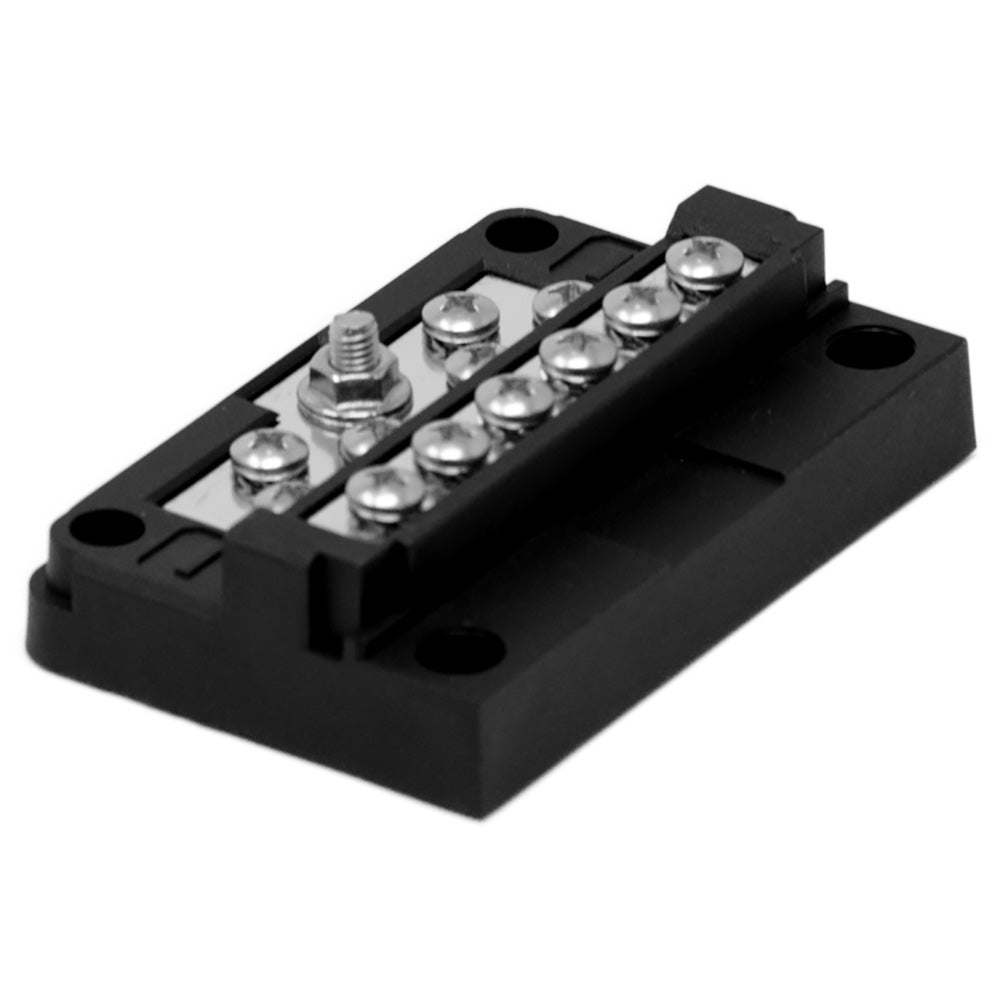

Egis RT Screw Terminal 12 Circuit Dual Lever Bus Bar

Enhance your boat's electrical system with the RT Screw Terminal 12 Circuit Dual Lever Bus Bar, engineered for reliability and seamless integration in marine environments. Whether you're upgrading your existing setup or building a new marine electrical network, this bus bar provides the optimal solution for managing multiple circuits with ease.

Applications

• Ensure dependable ground connections with the 12-circuit block, tailored for compact and sturdy marine installations.
• Compatible with RT series fuse blocks, enabling a streamlined installation footprint and easy access to negative terminals in marine fuse block applications.

Features

• Durable Construction: Crafted from high-temperature materials and stainless steel self-locking hardware, allowing secure mounting in any part of your vessel.
• Versatile Integration: Functions as a standalone ground bus or can be seamlessly assembled with existing RT Series fuse block lines for a cohesive marine electrical system.

Specifications

Parameter	Details
Maximum Current (Entire Block)	100 Amps
Maximum Current (Per Circuit)	30 Amps
Maximum Output Wire Size	#10 AWG
Voltage Range	0-36 VDC
Number of Fuse Positions	12
Output Terminal Connection	Ring Terminal Size: M4 / (#8)

Robust Materials for Marine Applications

Designed to withstand the harsh conditions of marine environments, all attachment hardware is made from stainless steel with self-locking mechanisms, ensuring long-lasting performance. The bus bar conductor is constructed from a plated copper alloy, providing excellent corrosion resistance and maximum conductivity. Additionally, engineering-grade composite insulators are used to support high-temperature exposures typical in engine compartments.

Seamless Integration with RT Fuse Blocks

The RT Screw Terminal Bus Bar offers versatile installation options. It can be mounted independently or attached to the end of a 6, 12, or 18-position RT Series fuse block, reducing the overall footprint and simplifying your marine electrical setup.

WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Quick Guide (PDF)
