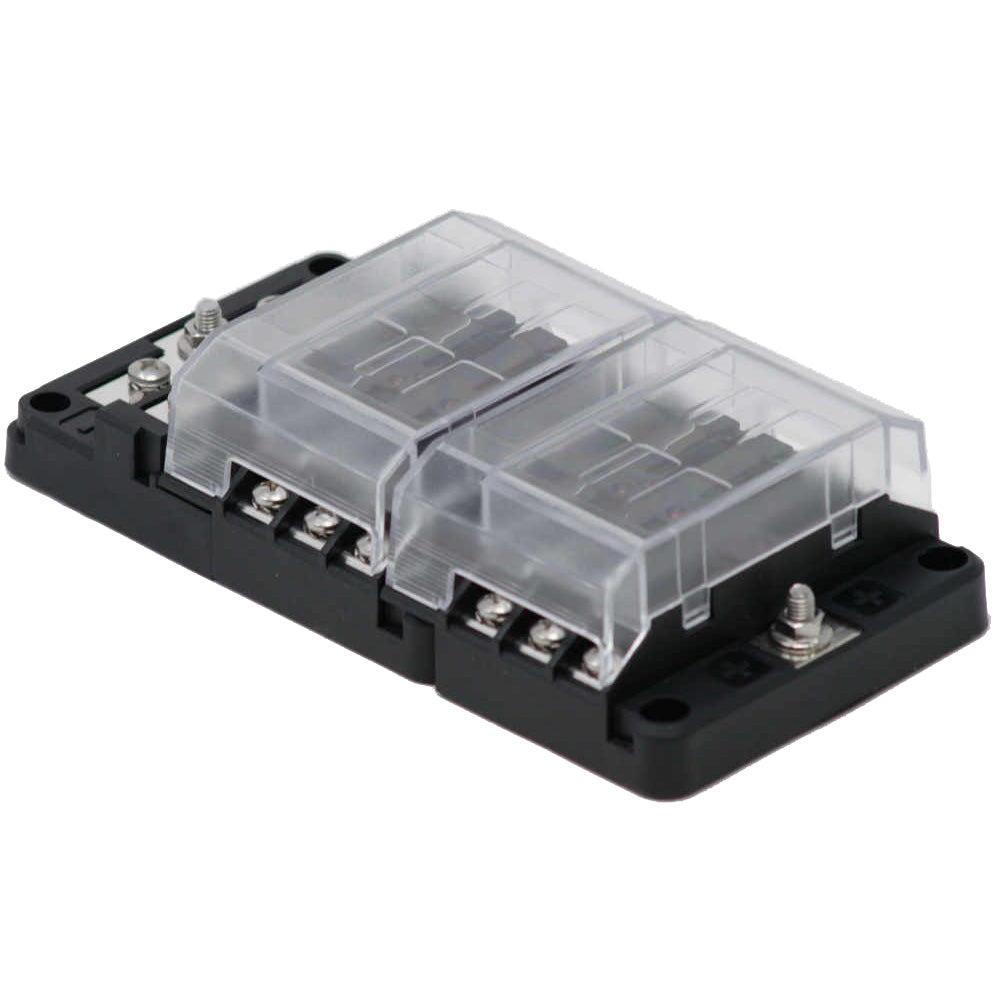

Egis RT Fuse Block 12 Position w/Ground LED Indication

The RT Fuse Block 12 Position with Ground & LED Indication is designed specifically for marine and boating applications, offering reliable electrical protection and enhanced diagnostics in harsh marine environments. Its modular design allows for versatile configurations, reducing the need for multiple part numbers and streamlining your vessel's electrical setup.

Applications

• Facilitates quick identification of blown fuses with LED indicators, enabling faster resolution of electrical issues on board.
• Engineered for marine environments with stainless steel self-locking hardware and customizable weather-proof labels, ensuring durability and longevity in harsh conditions.

Features

• Bullet-Proof Construction: Crafted from high-temperature materials and equipped with stainless steel self-locking hardware, this fuse block can be securely mounted anywhere on your vessel.
• Comprehensive Protection: Protects branch circuits by accommodating ATO style fuses ranging from 1 to 40 Amps, ensuring each circuit is safeguarded against overloads.
• Standards Compliant: Supports SAE circuit protection standards, effectively handling thermal and short circuit events to maintain system integrity.

Specifications

Focal Features

Spare Fuse Locations

Includes two spare fuse slots per set of six circuits, allowing for spare or test resistors. This feature helps reduce siren volumes during system evaluations by providing alternative paths.

Stainless Steel Self-Locking Hardware

Constructed from 100% non-ferrous, corrosion-resistant materials, all attachment screws and nuts are self-locking to ensure a secure and lasting installation in marine environments.

LED Fuse Diagnostics

Each output circuit is equipped with an LED indicator that lights up when a fuse is blown, offering a clear and immediate visual cue for faulty circuits. This makes remote troubleshooting and maintenance more efficient.

Cover/Label Recesses

Designed to protect terminal studs and cable edges from accidental shorts to each other or to the ground, enhancing overall safety and reliability of your electrical system.

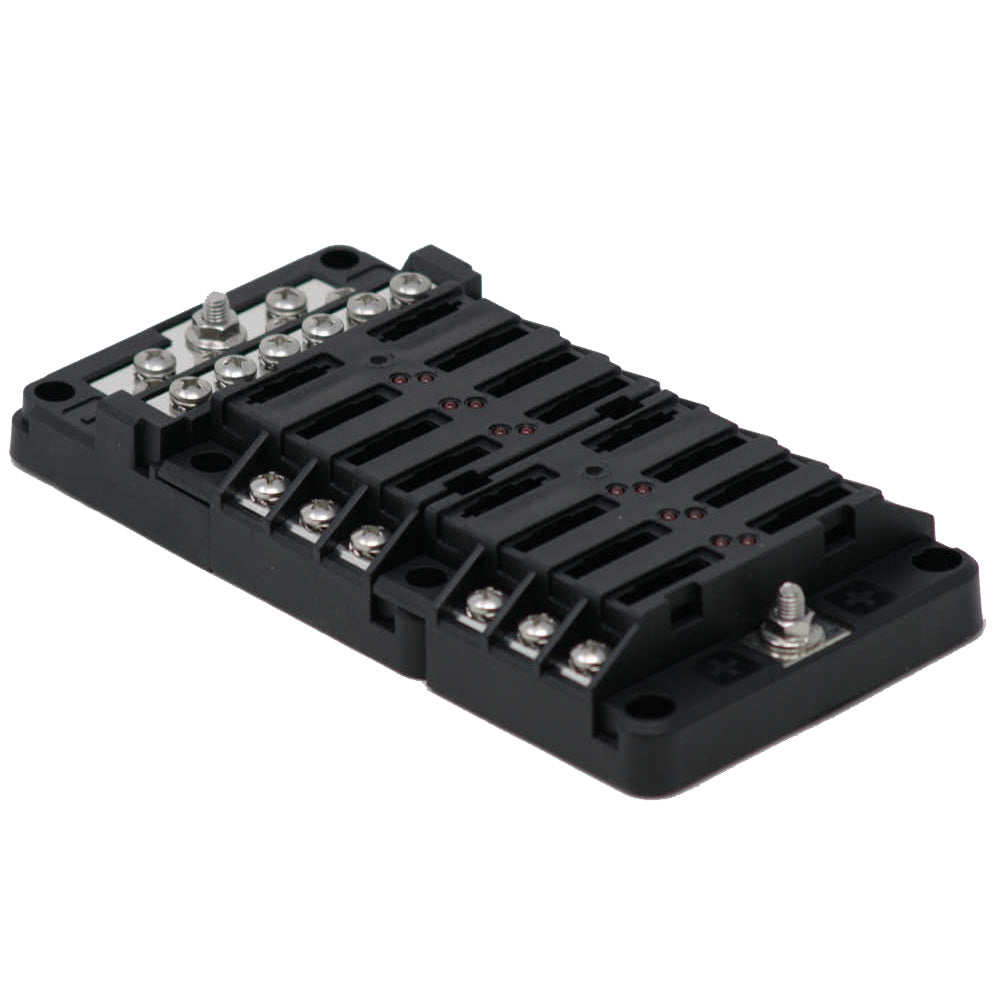

Ground Block Included

Comes with a 12-position ground return block featuring multi-level low amp terminal screws, providing improved mounting options and ensuring a stable ground connection.

Ground Block Separates

The ground block section can optionally be separated from the fuse block section, offering increased deployment flexibility for challenging installation scenarios on your vessel.

Additional Resources

Quick Guide (PDF)
