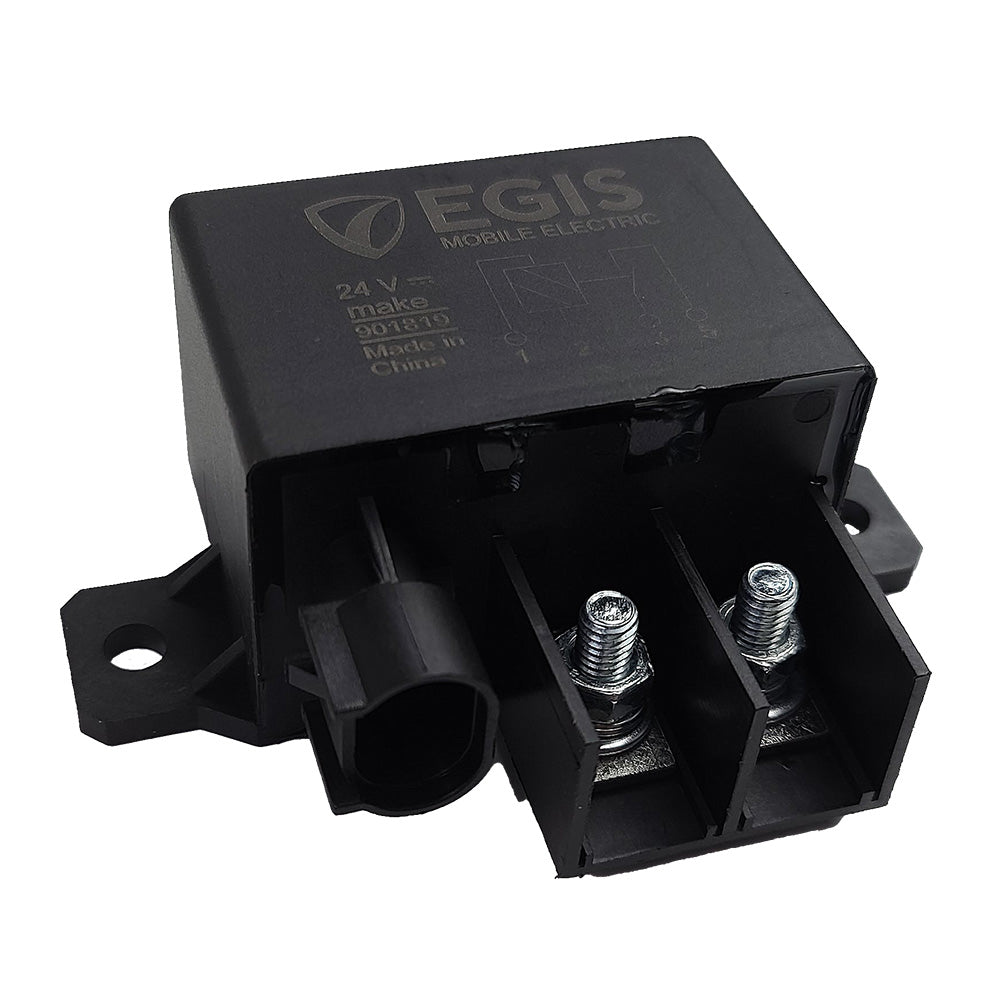

Egis Relay 24V, 150A w/Resistor

The 24V, 150A Relay with Resistor is specially designed for marine and boating applications, ensuring reliable performance in harsh marine environments. Whether you're upgrading your boat's electrical system or protecting sensitive marine electronics, this robust relay delivers exceptional durability and functionality.

Key Features

• Bullet-Proof Construction: Built with automotive-grade materials, this relay offers IP54 ingress protection and reinforced mounting tabs for secure installation, even in vibration-prone marine settings.
• Dual Mounting Options: Features dual mounting holes on each side, compatible with ¼-20”/M6 1.25 bolts or screws up to #14, allowing flexible installation on various surfaces.
• High Electrical Endurance: Capable of 1,000,000 switching cycles, ensuring long-term reliability for your marine electrical systems.
• Enhanced Vibration and Shock Resistance: Designed to withstand the demanding conditions of boating, including constant motion and exposure to the elements.

Technical Specifications

Specification	Details
Intermittent Current @ 3 SEC (Amps)	300
Ambient Temperature Rating	-40°C to 125°C (-40°F to 257°F)
Max Continuous Current	180 Amps @ 23°C (73.4°F)
Electrical Endurance Rating	1,000,000 Cycles
On State Current Draw @ 24 VDC	163 mA
Operating Voltage Range	17.6-32 VDC

Applications in Marine and Boating

• Circuit Protection: The built-in resistor safeguards your boat's control circuits from flyback voltage, making it ideal for sensitive marine electronics.
• High-Current Demands: With a high intermittent amp rating of 300 amps for up to 3 seconds, this relay is perfect for handling temporary high-amp draw during equipment startup.
• Durable Connectors: Automotive-grade connectors prevent moisture and dust from infiltrating the control circuitry, ensuring longevity in marine environments.
• High-Temperature Tolerance: Suitable for installation in engine bays and other high-temperature areas on your vessel, where ventilation may be limited.

Additional Features

Sealed Housing

The IP67-rated housing provides complete protection against moisture ingress, ensuring reliable operation even in wet and humid marine conditions.

Reinforced Mounting

Robust mounting tabs with strengthening gussets keep the relay securely in place, resisting vibrations, heat, and wire tension typical in marine settings.

Terminal Protection

Shielded dual M6x1.0 terminals are designed to prevent accidental short circuits, enhancing the safety of your boat's electrical system.

Delphi Metripak Connector

These automotive-grade sealed control wire connectors protect the control circuit from moisture intrusion, ensuring dependable performance.

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
