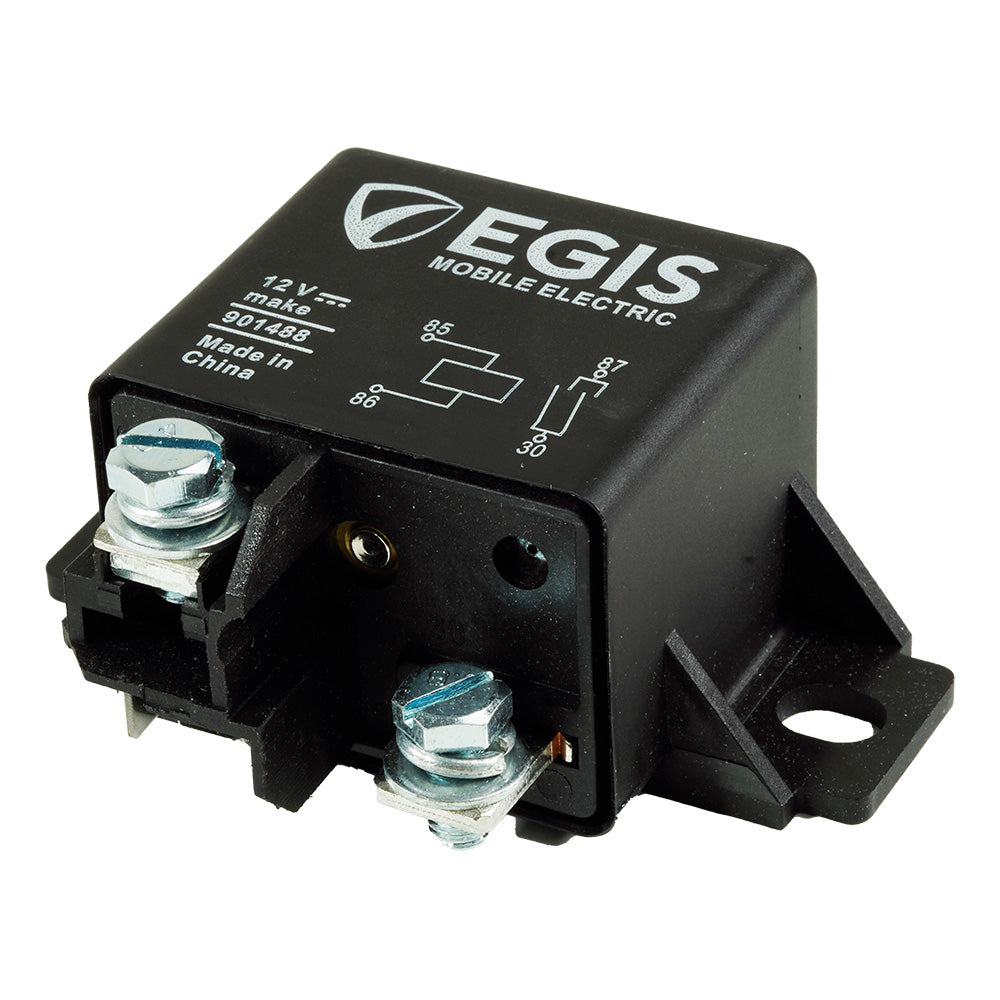

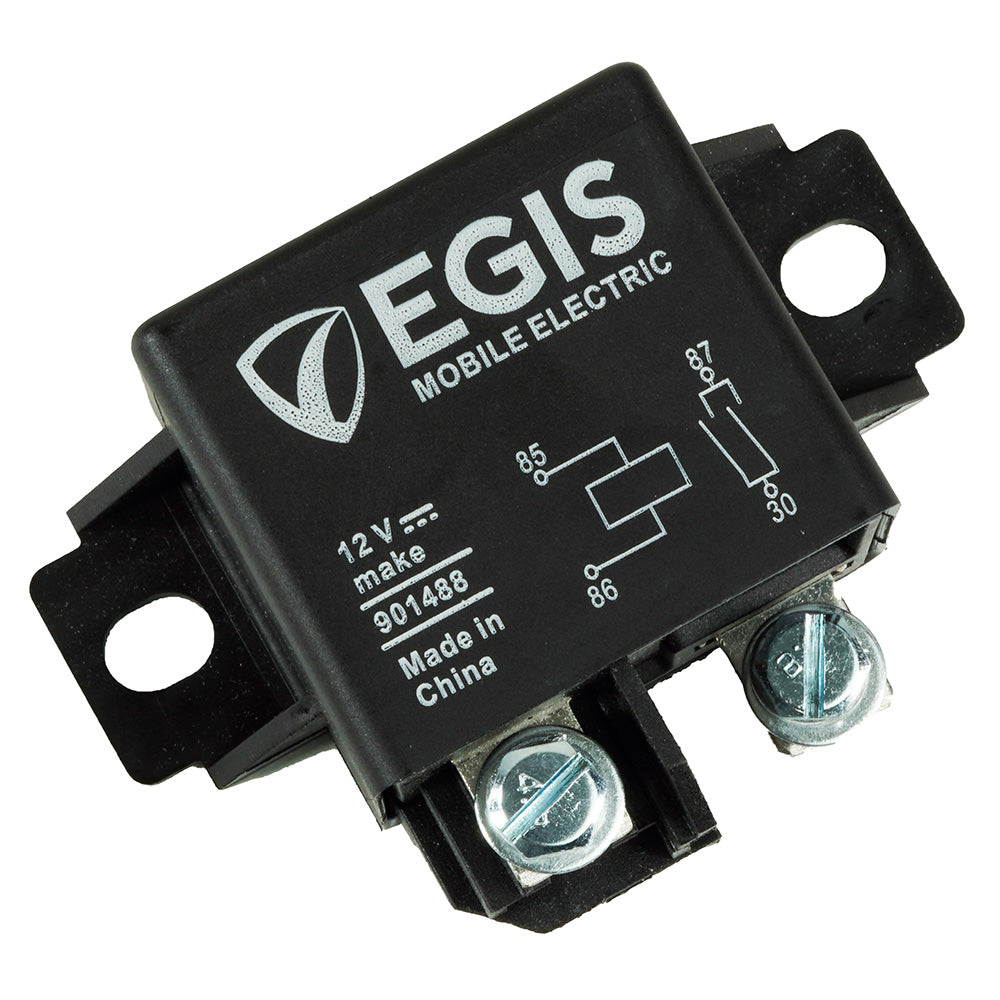

Egis Relay 12V, 75A

Enhance your marine electrical systems with our high-performance 12V, 75A relay, specifically engineered to meet the demanding conditions of marine and boating applications. This robust relay ensures reliable power management, safeguarding your vessel's electrical components with superior durability and efficiency.

Applications

• Marine Electrical Switching: Bi-furcated contacts reduce contact bounce, enhancing long-term reliability and ensuring efficient electrical switching to prevent unnecessary heat buildup and contact wear.
• High-Current Demands: With a high intermittent amperage rating of 150 amps for up to 3 seconds, this relay is ideal for handling temporary high-amp draw scenarios such as motor start-ups and heavy equipment activation.
• Secure Connections: Offset input/output terminals and an integrated divider design help prevent accidental short circuits, ensuring the safety and integrity of your boat's electrical system.
• Extreme Environments: Rated for high temperatures up to 125°C (257°F), this relay performs reliably in engine bays and other high-heat, low-ventilation areas common in marine settings.

Features

• Bullet-Proof Construction: Built with robust automotive-grade materials and IP54 ingress protection, this relay withstands harsh marine environments and ensures secure mounting with reinforced tabs.
• Flexible Mounting Options: Dual mounting holes on either side accommodate ¼-20”/M6 1.25 bolts or screws up to #14 size, allowing for versatile installation in tight marine spaces.
• High Endurance: Crafted from premium materials, this relay boasts a 100,000 electrical switching cycle capacity, guaranteeing superior performance and longevity.
• Vibration and Shock Resistance: Enhanced protection against vibration and shock ensures consistent reliability and extends the service life of your boat's electrical system.

Specifications

Key Features

Long-Term Reliability

Constructed from high-quality materials, this relay delivers outstanding electrical switching performance, ensuring dependable operation for prolonged periods in marine environments.

Secure Locking Hardware

Equipped with zinc-plated M5-size input/output terminal screws and secured with held-in-place nuts, connections remain tight and secure, allowing for easy tightening of wire terminations.

Marine-Grade Durability

Designed to withstand the harsh conditions of marine settings, this relay meets or exceeds IEC 60068-2-27 and IEC 60068-2-6 standards, along with IP54 and IEC 60068-2-2 ratings for superior performance in wet and vibration-prone environments.

Versatile Fastener Sizes

The 6mm x 8.7mm elongated holes accommodate up to 1/4-20" or M6x1.25 bolts, as well as up to #14/1/4" screws, allowing for precise centering and secure installation even in confined boat spaces.

Reinforced Mounting

Featuring robust mounting tabs with strengthening gussets, this relay remains securely in place despite continuous vibrations, high temperatures, and wire tension typical in marine applications.

Compact Design

Its small mounting footprint is ideal for installations where space is limited, ensuring it fits seamlessly into your boat's electrical system without occupying excessive room.

Quick Connectors

Dual 6.3 x .03 mm flat male terminal connectors are shielded for protection and allow for fast, secure, and easy connection of control wires, simplifying installation and maintenance.

Safety with Offset Terminals

The integrated divider tab design and varied mounting height input/output pads help protect against accidental shorts, enhancing the safety and reliability of your marine electrical setup.
