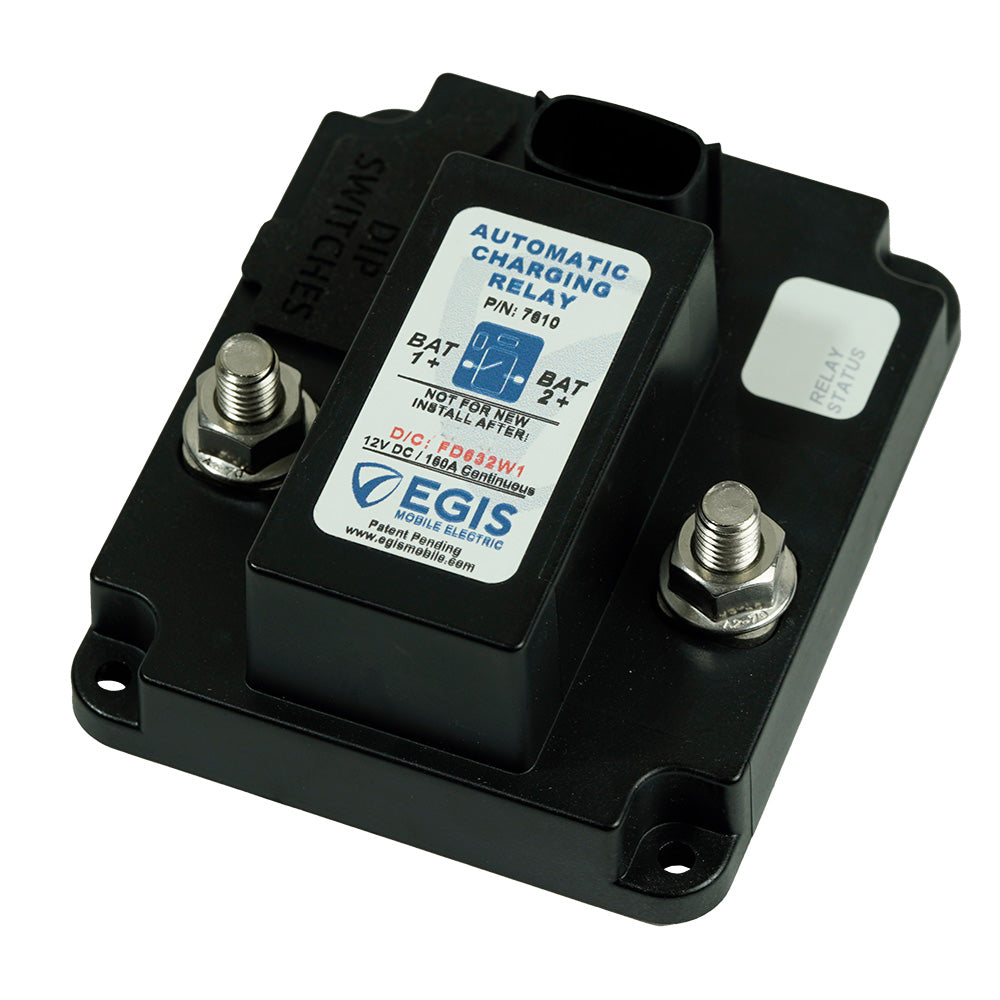

Egis Programmable Automatic Charging Relay (ACR) 160A, 12V

The Programmable Automatic Charging Relay (ACR) 160A, 12V is an essential component for maintaining the health and performance of your boat’s electrical system. Designed specifically for marine applications, this high-capacity charging relay ensures seamless power management between multiple batteries, preventing dead starts and optimizing charging efficiency for your vessel.

Key Features

• High Current Capacity: Supports continuous current of up to 160A, ensuring efficient power distribution and charging for multiple boat batteries.
• Ultra-Low Power Consumption: With an off-state current draw of only 1.3 mA, this ACR prevents battery drain during extended periods of inactivity.
• Programmable Settings: Easily adjustable voltage settings via top-side dip switches, allowing customization to match your boat’s specific electrical requirements.
• Robust Marine-Grade Construction: Sealed unit with stainless steel hardware and high-temperature materials, built to withstand the harsh marine environment.
• Integrated Thermal Protection: Features thermal overload shutdown to safeguard against overheating and potential system failures.
• Multiple Connection Options: Comes with a Deutsch DT/AT style connector harness and offers MX-150, DT/AT, and wire lead connections for versatile installation.
• LED Diagnostics: Provides real-time status indicators for relay operation, voltage levels, and system alerts, ensuring easy monitoring of your electrical system.

Applications

• Multi-Engine Boats: Manages charging systems for multiple engines, allowing independent start or engine isolation inputs to maximize charging performance.
• Battery Bank Management: Shares charging between dual battery setups and isolates them when no charge source is present, preventing dead start batteries.
• Electrical System Protection: Protects against cascading faults with an optional lock-out feature that prevents relay closure if a battery terminal is shorted.

Specifications

Attribute	Details
Continuous Current (Amps)	160
Voltage Range	8-18 VDC
Off-State Current Draw (mA)	1.3
Interrupt Current (Amps)	240
ACR Closing Voltage (VDC)	12.9-13.6
ACR Opening Voltage (VDC)	12.1-12.8
Lockable	Yes
Dimensions (H x W x L)	3" H x 4" W x 8" L
Weight	0.85 lbs
UPC	850035199633

Advanced Features

Top Side Dip Switches

Easily accessible after installation, the top-side dip switches allow you to program voltage settings and activate desired features. The switches are protected by a secure, self-retained cover to prevent accidental adjustments.

Stainless Steel Self-Locking Hardware

All hardware components are crafted from 100% non-ferrous, corrosion-resistant stainless steel. Self-locking screws and nuts ensure a secure and durable installation, ideal for the demanding marine environment.

Integral I/O Connector

The sealed Molex MX-150 connector provides a reliable connection, eliminating the risk of corrosion and ensuring stability even in high-vibration conditions commonly found on boats.

Flexible Connection Options

Standard inclusion of a Deutsch DT/AT style connector harness offers three connection options: MX-150, DT/AT, and direct wire leads, providing versatility for various installation scenarios.

Seamless Integration with RT Fuse Blocks

Compatible with EasyLink bus bars, this ACR integrates effortlessly with TH Series relays and RT Series Fuse Blocks, reducing space and simplifying the wiring process for your boat’s electrical system.

LED Diagnostics

Stay informed about your electrical system’s status with built-in LED indicators. Monitor relay operations, voltage levels, temperature alerts, and output statuses at a glance for proactive maintenance and troubleshooting.
