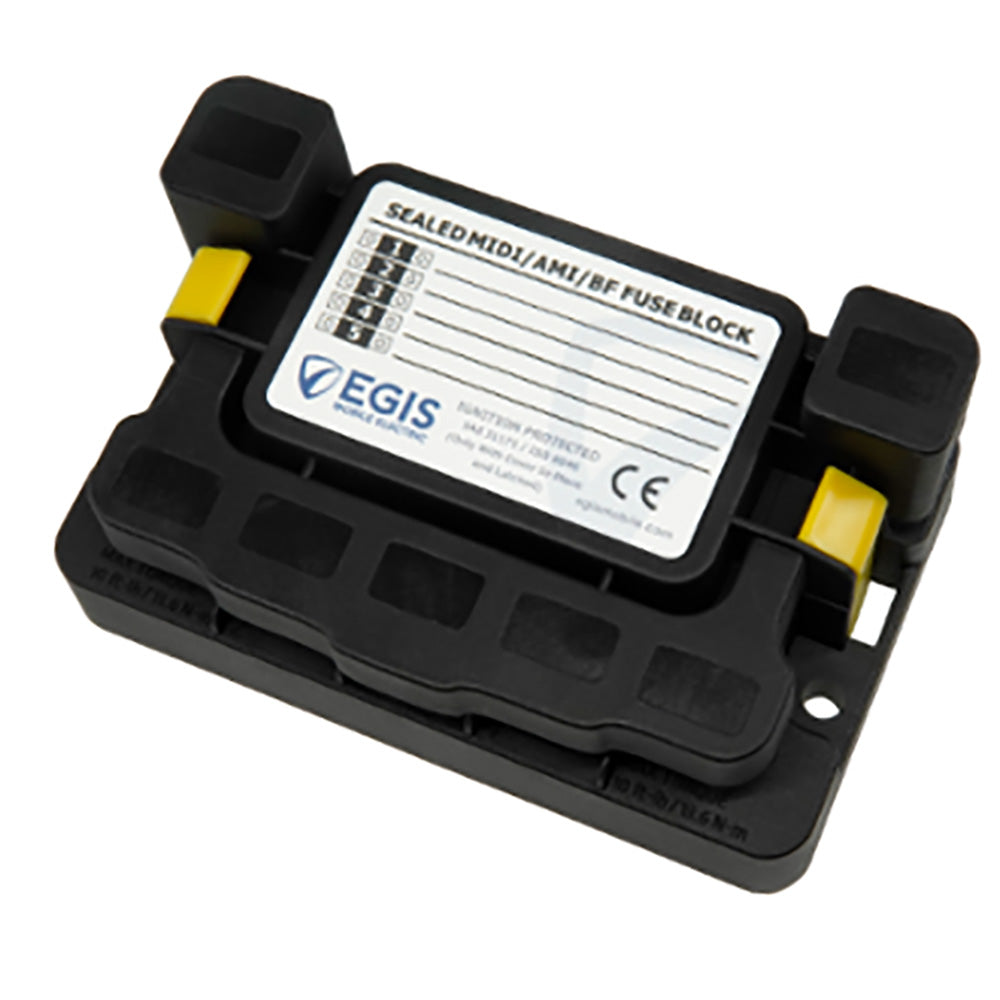

Egis MIDI 5x Fuse Block w/Sealed Cover

MIDI 5x Fuse Block with Sealed Cover

• Sealed marine grade construction fuse block compatible with 5 MIDI/AMI/BF type fused outputs
• Protects add-on circuits from accidental short circuits to frame ground or battery negative, or from overload events
• Expandable with dual, triple, and quad link busbars for plug-and-play install and complete switching/protection solutions

Features:

• Reduce Installation Space when combined with other Egis Mobile Electric power management devices and other sealed circuit breaker/fuse blocks.
• Expandable with Dual, Triple, and Quad Link Busbars for Plug and Play installation and Complete Switching/Protection Solutions.
• Bullet-proof Construction: Sealed to IP66/IP6K9K, high-temperature materials, Gore-Tex vent allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
• Protective Cover Stored 2 (Two) spare fuses and 4 (Four) screws. Easy to operate latching mechanism holds cover on securely.

Specifications:

• Total Continuous Current Amps: 500
• Max MIDI?AMI Fuse Value (Amps): 200
• Ingress Protection Rating: IP67
• Ignition Protected (SEA J1171)? Yes
• Output Stud Size: M6
• Input Stud Size: M8

Specifications:

• Fuse Type: MIDI/AMI
• Type: Fuse Blocks

Brochure (pdf)
