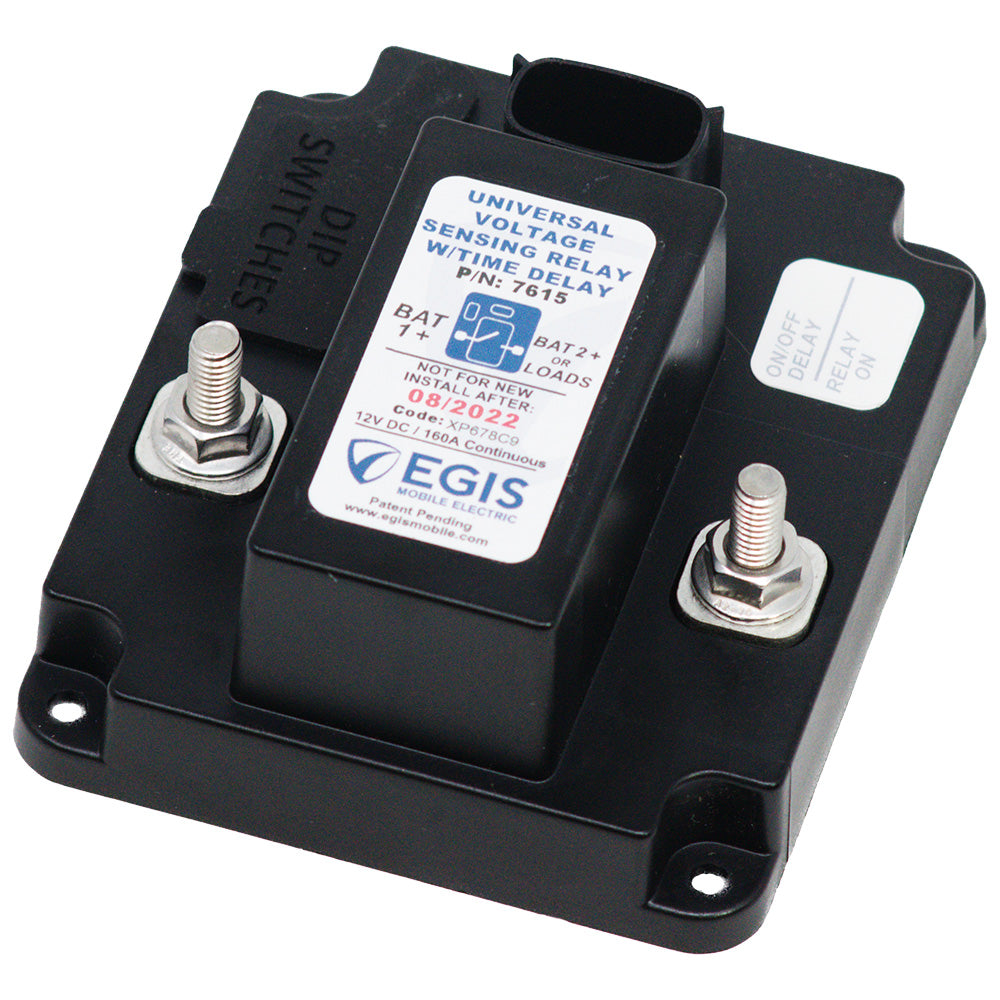

Egis Automatic Timer Disconnect 160A - 12V

Automatic Timer Disconnect 160A - 12V

Prevents auxiliary loads from draining batteries, maximizing operational readiness by eliminating dead batteries, and reducing the total lifetime cost of vehicle use.

Ensures power after engine off or at the end of shift (video downloads) is available while automatically turning off after a preset time or if battery voltage is low.

Protects sensitive on-board electronics via optional under/over voltage shutdown and start event isolation.

Adjustable Time Delay: 0 sec - 4 hr, Optional Voltage Sense On/Off Trigger, Adjustable Low Voltage Off Trigger, Dip Switches On Top Side of Device

Features:

• Ultra-Low Power Draw: Lowest off-state current draw in industry (1.3 mA).
• Flexible Application Options: Install as a Time Delay Relay, Battery Management Relay, Low Voltage Disconnect, or Simple Relay. On/Off trigger via external Ignition signal and/or alternator voltage sense, and adjustable low voltage protection levels increase flexibility
• Simple & Robust Installation: Sealed plug/harness included. Combined timer & high-amp relay reduces install time/costs. The optional output bus bar connects RT or CT fuse blocks.
• Adjustable Optional OFF Time Delay: 0 seconds to 4 hours.
• Diagnostic Feedback via optional external LED and on-board LEDs
• Bullet-proof Construction: Sealed unit, high-temperature materials allow mounting anywhere on the vehicle. Integrated thermal overload protection.
• The optional kill switch eliminates the need for using thermal circuit breakers as service maintenance switches, reducing voltage drop to electrical loads.
• Meets Stringent OEM Standards for electrical transient self-protection
• 4 Year Industry-Leading Warranty

Specifications:

• Type: Electric

Brochure (pdf)
