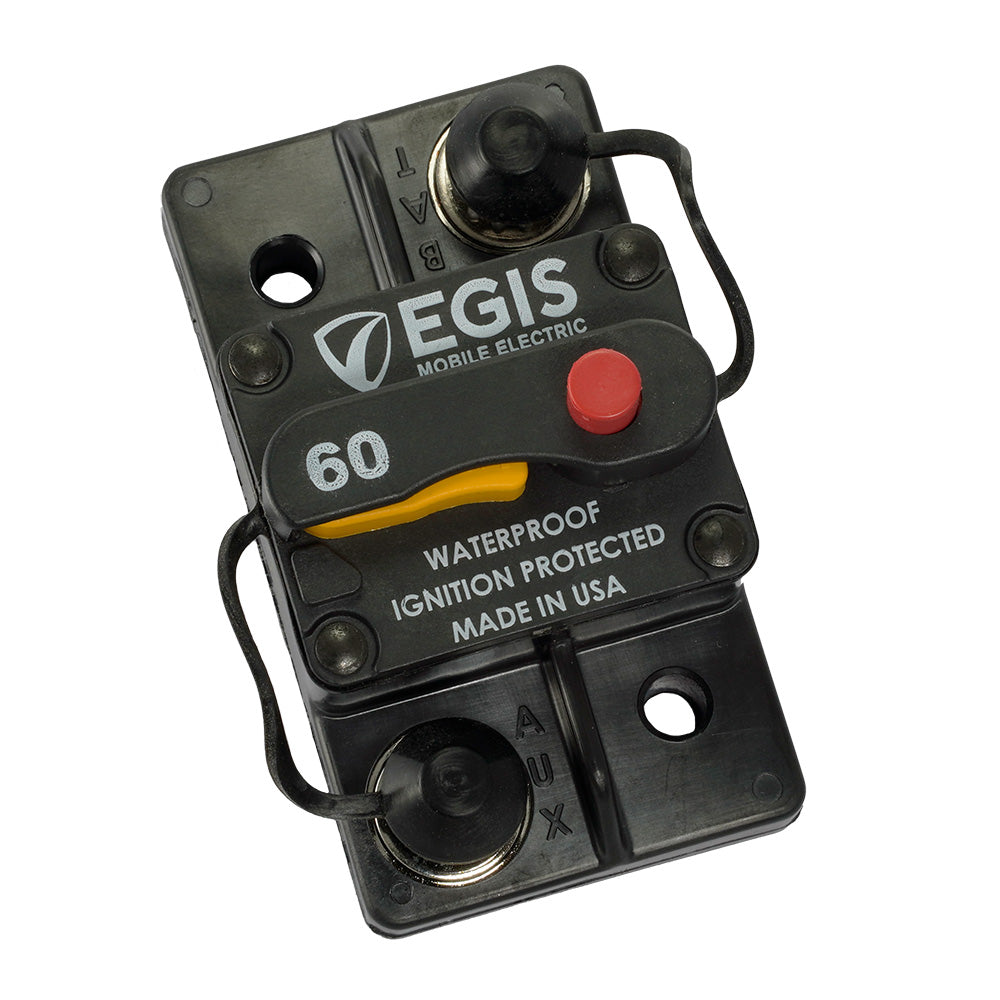

Egis 60A Surface Mount Circuit Breaker - 285 Series

The 60A Surface Mount Circuit Breaker - 285 Series by Egis is an essential component for marine electrical systems, providing reliable protection against short circuits and over-current situations. Designed to ensure the safety and longevity of your vessel's wiring, this circuit breaker is built to withstand the harsh conditions commonly found in marine environments.

Key Applications

• Combines automatic circuit protection with manual on/off switching, offering dual functionality in a compact and reliable unit.
• Enables easy isolation and maintenance of load circuits, allowing for safe switching and protection of electrical systems adjacent to battery setups regardless of their placement on the boat.

Outstanding Features for Marine Use

• Durable Sealing: Rated IP67, the circuit breaker is sealed against dust and water intrusion, ensuring dependable performance in the challenging marine environment.
• High Voltage Compatibility: With a 48 Vdc rating, it seamlessly supports 12V and 24V DC applications while providing advanced protection for 36V and 48V DC systems commonly used in boats.
• Extended Switching Endurance: Capable of handling 6,000 full-current cycles, ensuring longevity even with frequent use typical in marine settings.
• High Interrupt Current: Safeguards circuits connected to large paralleled battery banks, offering reliable protection for vessels with substantial power demands.
• 4-Year Warranty: Egis stands by the quality and durability of their product, providing peace of mind for your marine electrical installations.

Technical Specifications

Specification	Details
Continuous Current Amps	60A
Maximum Voltage	48 Vdc
Cycling Endurance	6,000 cycles at full current
Interrupt Current @16 Vdc	5,000 Amps
Interrupt Current @28 Vdc	3,000 Amps
Ingress Protection Rating	IP67
Box Dimensions	3"H x 3"W x 5"L
Weight	0.4 lbs
UPC	850035199145

Focal Features for Enhanced Performance

High Visibility ON/OFF Controls

Designed with clear and easy-to-read controls, this circuit breaker ensures quick and accurate operation, even in low-light conditions common on boats.

Integrated Terminal Insulators

Protects against accidental short circuits by insulating the terminals, safeguarding your marine electrical systems from unintended grounding or contact.

Stainless Steel Hardware & Serrated Flange Nuts

Built to resist corrosion and vibrations, making it ideal for the demanding and fluctuating conditions on marine vessels.

Proudly Made in the USA

Manufactured in the USA using high-quality components, ensuring reliability and performance for your boat's electrical setup.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

Download the Quick Guide (PDF) for detailed installation and usage instructions.
