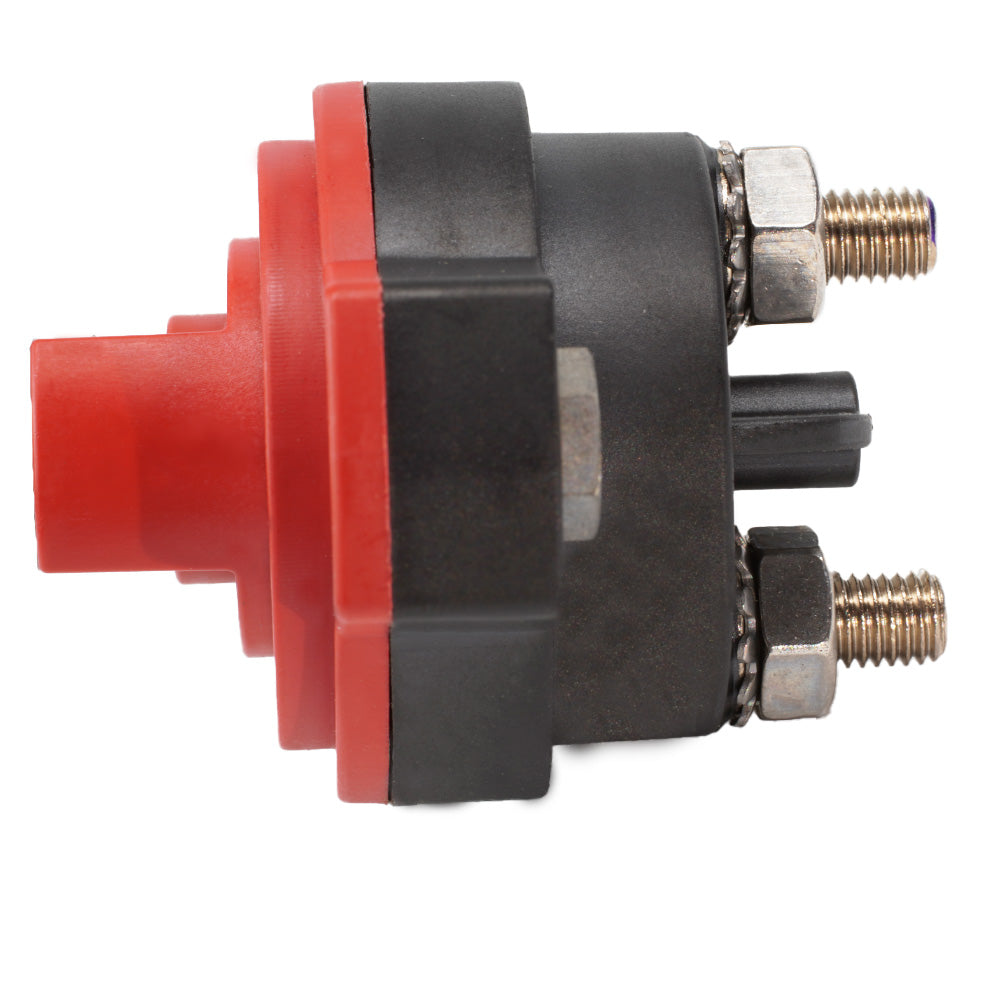

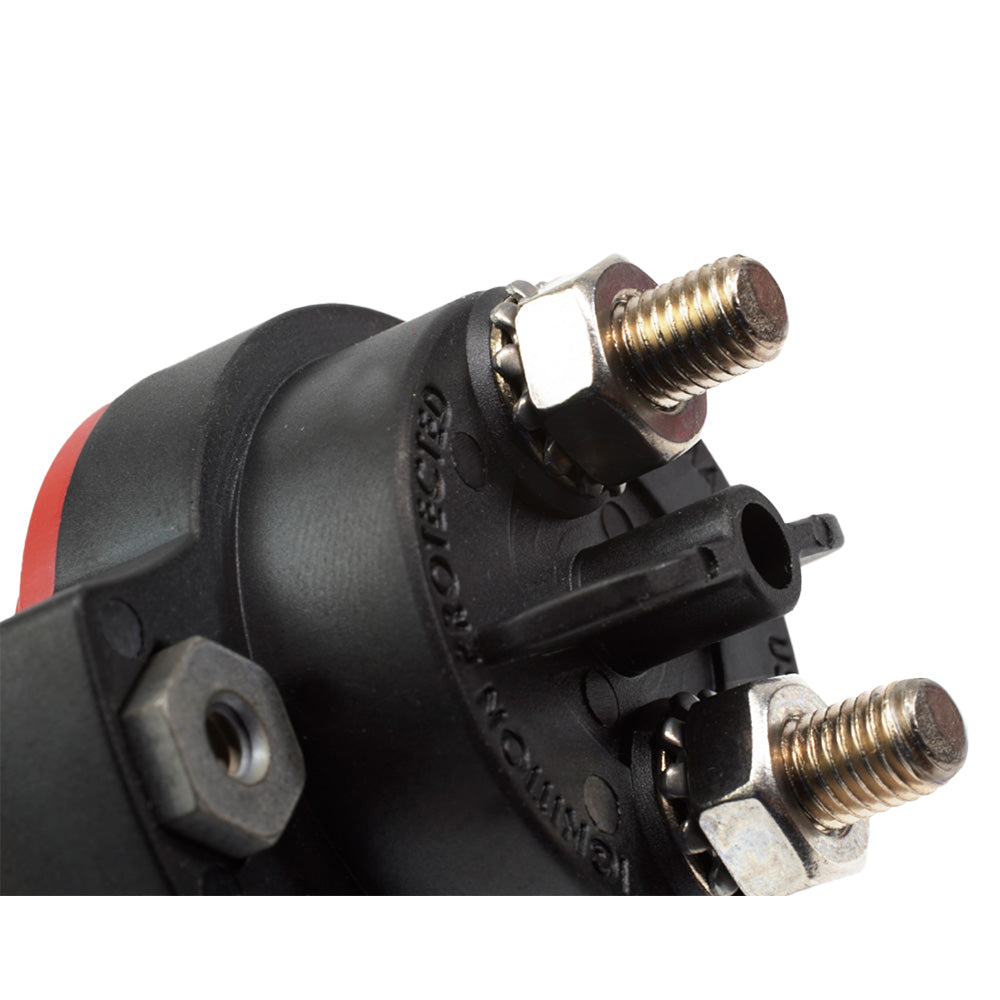

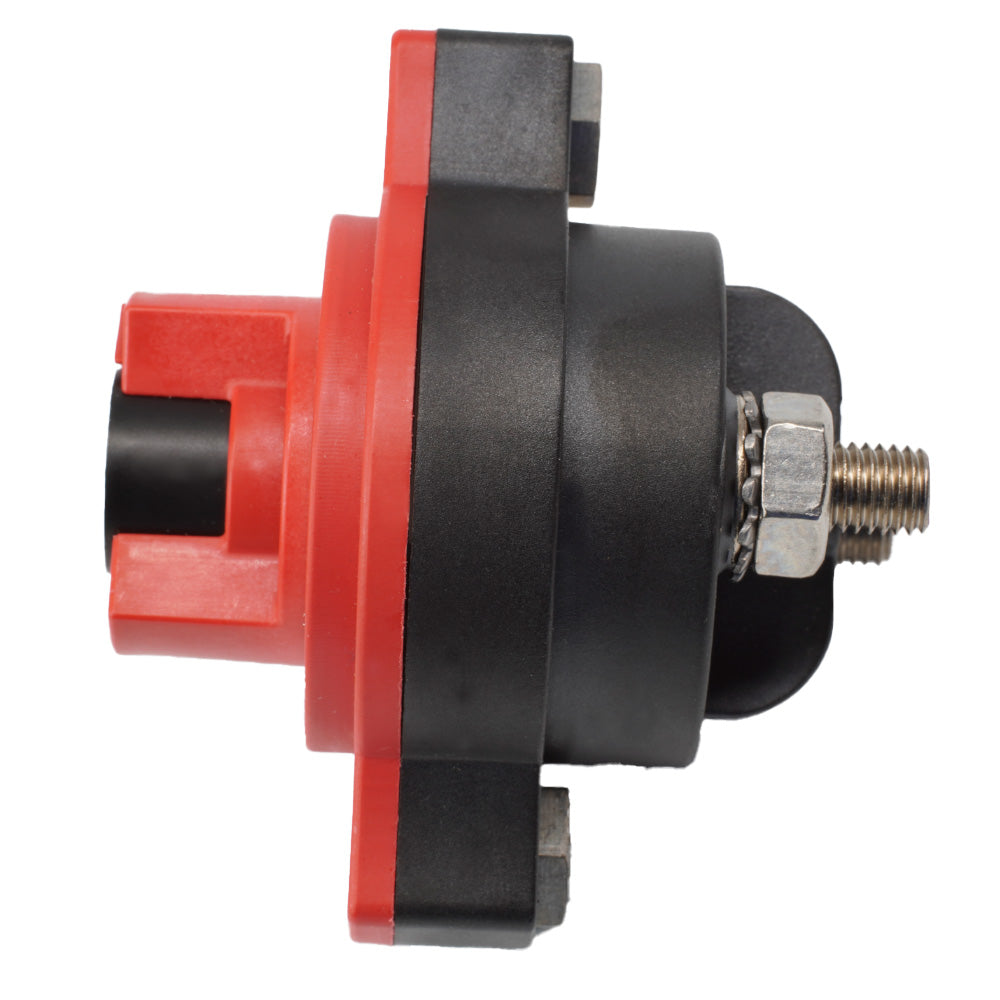

Egis 20A Panel Mount Mini Circuit Breaker

Ensure the safety and reliability of your boat's electrical system with our 20A Panel Mount Mini Circuit Breaker. Designed specifically for marine applications, this dual-function device provides both circuit protection and easy disconnect capabilities, making it an essential component for any boating enthusiast.

Key Features

• Dual Functionality: Combines a circuit breaker and disconnect switch in one compact unit, ideal for managing trolling motor circuits.
• Marine-Grade Construction: Built with corrosion-resistant stainless steel and sealed for IP66 dust and water protection, ensuring durability in harsh marine environments.
• High-Endurance Switching: Capable of 2,000 manual switching cycles and 5,000 automatic switching cycles, providing long-lasting performance.
• Wide Voltage Range: Supports up to 42 Vdc, making it versatile for 12V, 24V, and 36V DC marine applications.
• High Interrupt Capacity: Safely handles up to 3,000 amps at 14 VDC, protecting circuits connected to large battery banks.
• Easy Installation: Compact size allows for more circuit protection options on smaller panels, and it mounts easily adjacent to battery systems.
• USA Made: Proudly manufactured in the USA with high-quality components and backed by a 4-year warranty.

Applications

Our 20A Panel Mount Mini Circuit Breaker is perfect for a variety of marine electrical systems, including:

• Protecting trolling motor circuits from short-circuits and over-current conditions.
• Isolating and maintaining load circuits with ease.
• Ensuring safe operation of battery banks in both recreational and commercial vessels.
• Managing electrical systems in boats, yachts, and other marine vehicles.

Technical Specifications

Focal Features

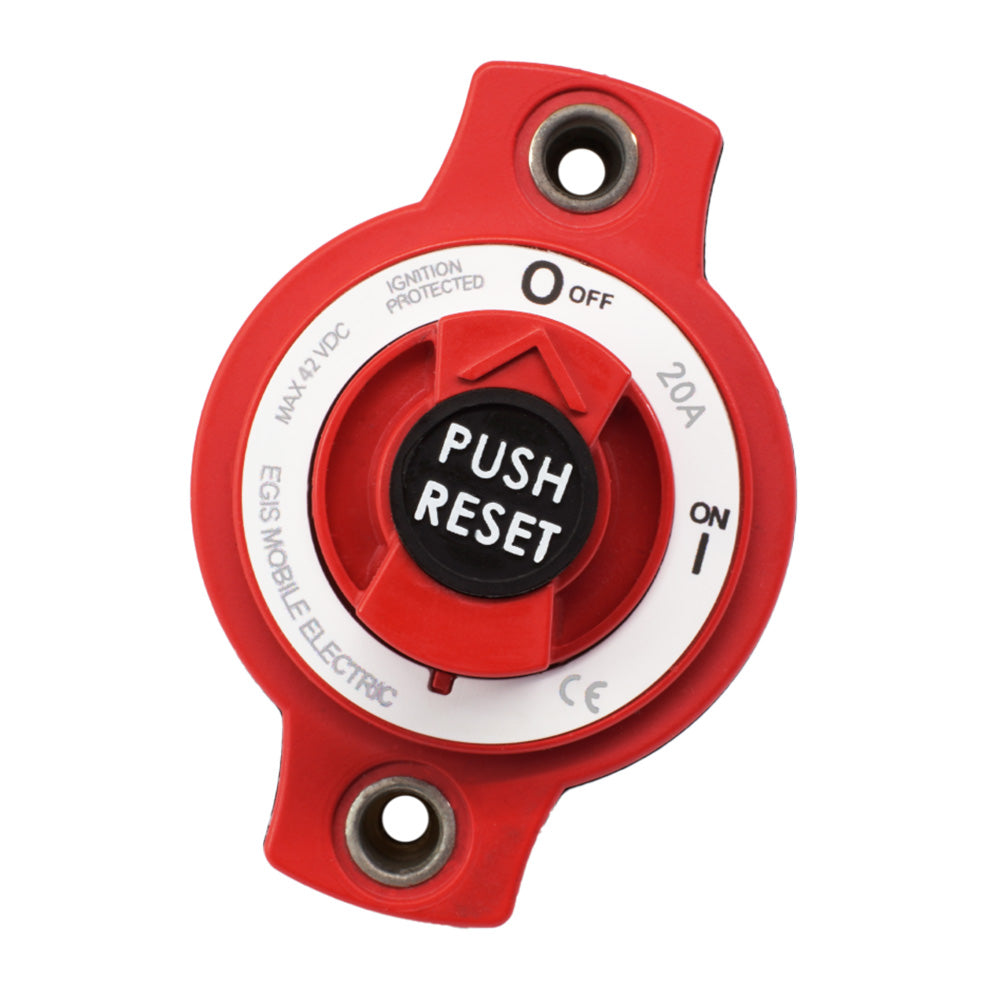

Easy ON/OFF Rotary Switch

Operate your circuits effortlessly with a user-friendly rotary switch that clearly indicates the on or off position.

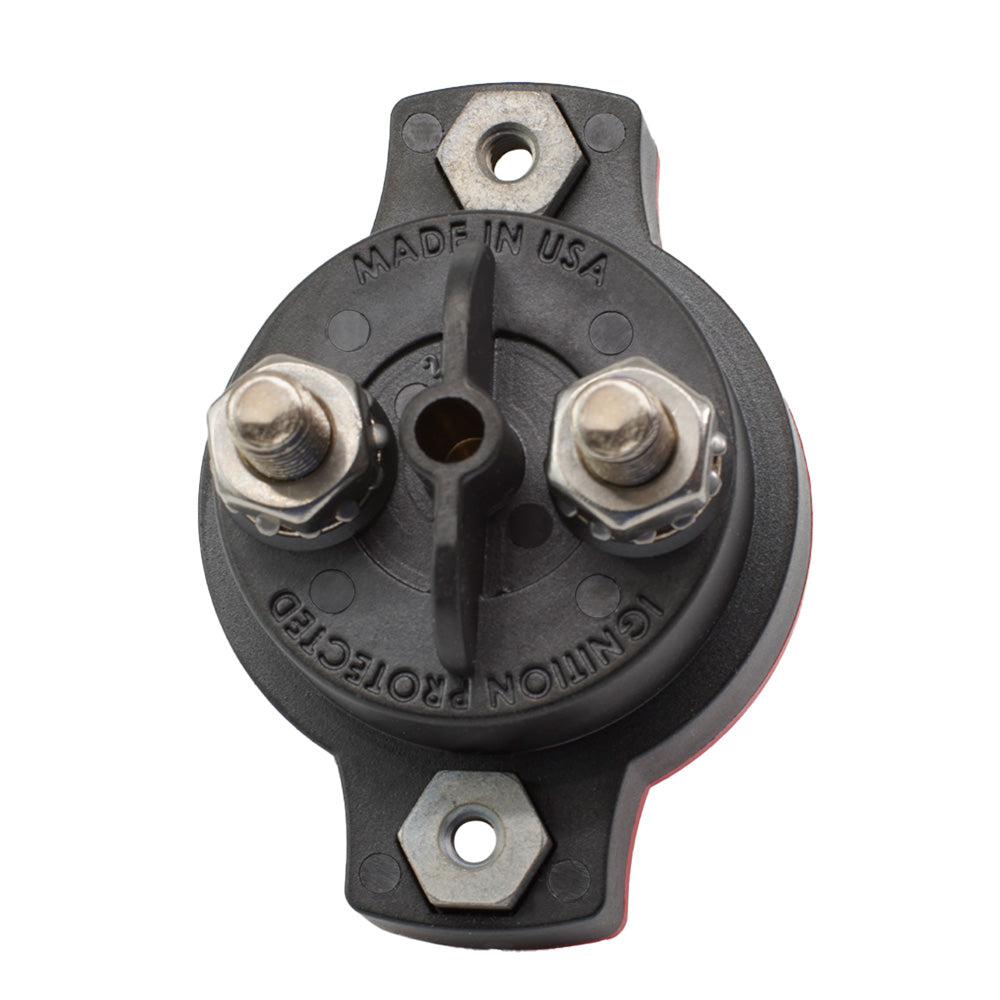

Stainless Steel Self-Locking Hardware

Designed to resist corrosion and vibrations, this hardware ensures reliable performance even in the most demanding marine environments.

Weatherproof Construction

Fully sealed against dust and moisture, the weatherproof design is rated for high temperatures, making it suitable for all installation locations on your vessel.

Compact Size

Maximize your panel space with a compact design that allows for more circuit protection options without sacrificing performance.

Proudly Made in the USA

Manufactured in the USA using high-quality components, our circuit breaker is built to meet the rigorous demands of marine applications.

Ignition Protected

Safeguard your electrical system against accidental shorts from positive terminals to adjacent grounded surfaces, enhancing overall safety on board.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Additional Resources

• Quick Guide (PDF)
