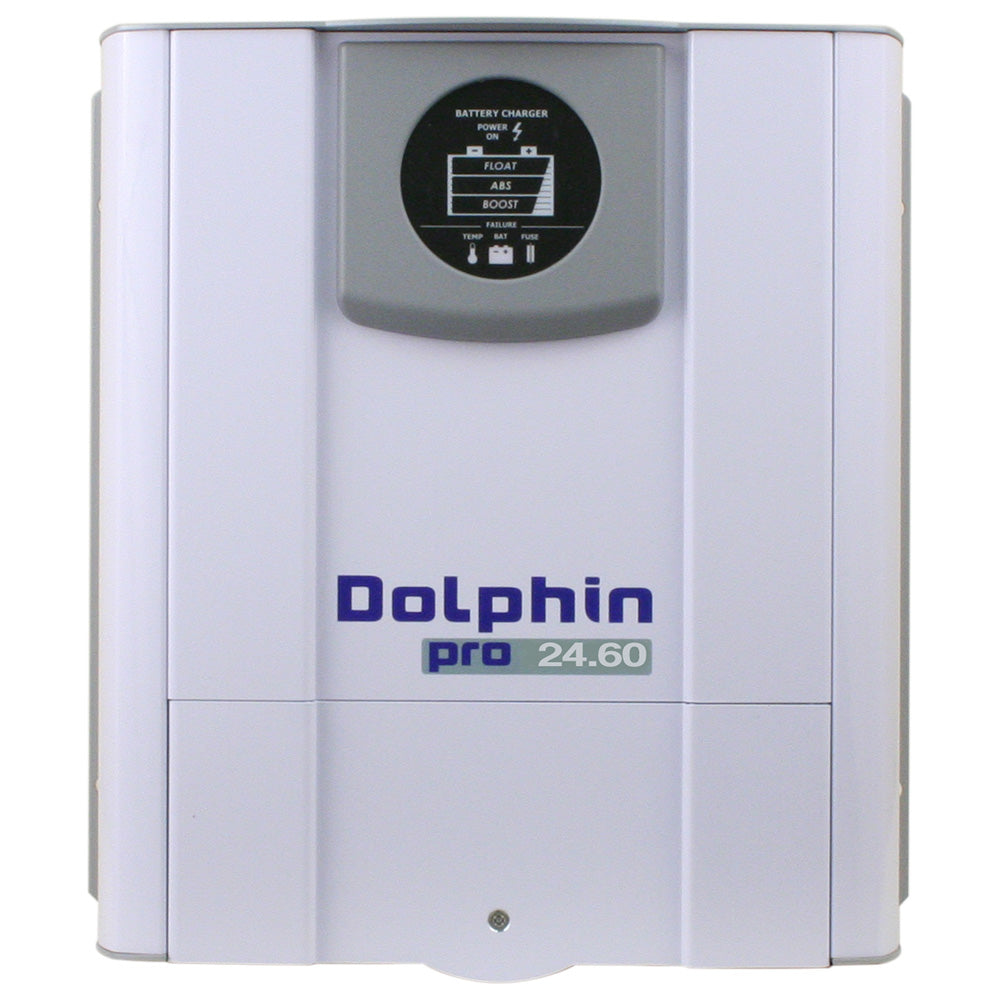

Dolphin Charger Pro Series Dolphin Battery Charger - 24V, 60A, 110/220VAC - 50/60Hz

The Dolphin Pro Series Battery Charger is a robust and reliable solution designed to meet the demanding power needs of marine and boating applications. With its high-capacity 24V, 60A output and versatile input options, this charger ensures your boat's battery systems are efficiently maintained, providing peace of mind during your adventures on the water.

Exceptional Quality and Warranty

The Dolphin Pro Series is renowned for its superior quality, backed by a comprehensive 2-year warranty. Manufactured on a large scale, Dolphin delivers top-tier, internationally recognized battery chargers at competitive prices, making premium battery management accessible for all marine enthusiasts.

Advanced Features for Marine Applications

• High Capacity Charging: Capable of charging battery banks up to 1000 amps, ensuring your boat's power systems are always ready.
• CE-Marked and Certified: Complies with UL and ABYC standards, guaranteeing safety and reliability in marine environments.
• Pro Touch Range: Optional TouchView touchscreen offers an intuitive interface, replacing the standard display panel for enhanced control.
• Enhanced Monitoring: The TouchView panel provides detailed information on charging phases, available power, and potential operating faults.
• CAN Bus Communication: Integrates seamlessly with professional land and industrial energy management systems, offering versatility for various applications.
• LED Display: Facilitates easy programming and real-time monitoring of charging functions.
• Temperature Compensation: Built-in temperature sensor ensures optimal charging performance under varying environmental conditions.
• Efficient Charging Design: Utilizes switch mode technology and a three-stage charging process for maximum efficiency and battery longevity.
• Durable Construction: Features a modern, lightweight, and compact white aluminum powder-coated casing, ideal for the harsh marine environment.
• Easy Installation: Simple 4-screw installation with an accessible removable panel for effortless maintenance.
• Certified Manufacturing: Produced in an ISO 9002-certified facility, ensuring consistent quality and performance.

Three-Stage Charging Process

The Dolphin Pro Series employs a three-stage charging curve to maximize battery life and performance:

Stage	Description
Bulk Stage	Delivers a high current to rapidly charge the battery up to approximately 80% of its full capacity.
Absorption Stage	Maintains the voltage level while gradually reducing the current to complete the charging process to 100%.
Float Stage	Reduces both voltage and current to maintain the battery at full charge, ensuring it stays ready for use without overcharging.

Technical Specifications

Specification	Details
Charger Input Voltage	110/220 VAC
Charger Output Amperage	60 A
Charger Output Voltage	24 V
Portable	No
Dimensions	8" H x 16" W x 19" L
Weight	16.7 lbs
UPC	786142995038

Reliable Support and Documentation

For detailed guidance on installation and operation, please refer to the Owner's Manual (PDF).
