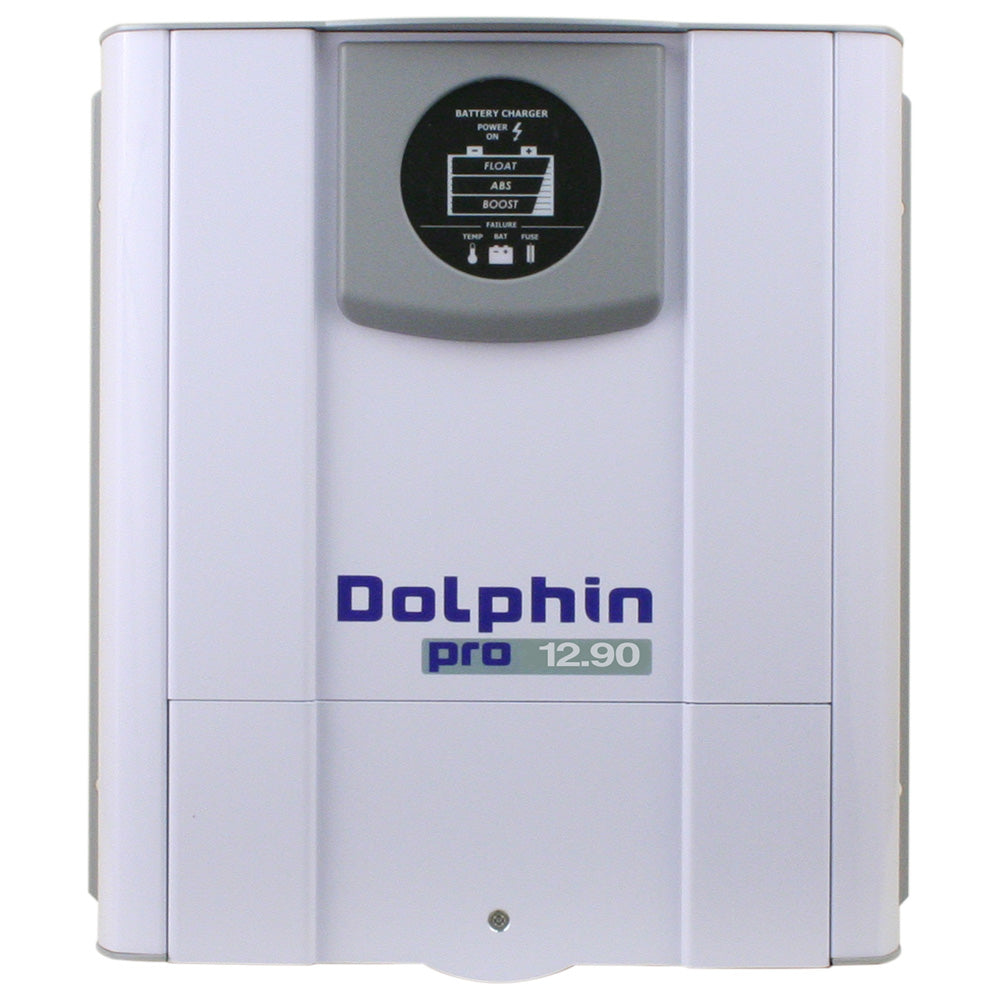

Dolphin Charger Pro Series Dolphin Battery Charger - 12V, 90A, 110/220VAC - 50/60Hz

The Pro Series Dolphin Battery Charger is engineered for marine enthusiasts, providing reliable and efficient charging for your boat’s 12V battery systems. With a robust 90A output and versatile input options of 110/220VAC, this charger ensures your batteries are maintained and ready for any maritime adventure.

Exceptional Quality and Warranty

The Dolphin Pro Series is renowned for its superior build quality, backed by a 2-year warranty from the manufacturer. Manufactured in an ISO 9002-certified plant, these chargers meet stringent CE, UL, and ABYC standards, ensuring safe and dependable performance in all marine environments.

Advanced Charging Technology

The Pro Range supports charging of battery banks up to 1000 amps, making it ideal for demanding marine applications. An optional TouchView touchscreen enhances user interaction, displaying real-time measurements, charging phases—boost, absorption, and float—available power allocation, and any operational faults. Equipped with CAN bus communication, it integrates seamlessly into professional land and industrial energy management systems.

Key Features

• 12V-90A Dolphin Pro charger specifically designed for marine and boating applications
• CE-marked and compliant with UL and ABYC specifications for safety and reliability
• Optional TouchView remote for enhanced monitoring and control, replacing the standard display panel
• Intuitive LED display for programming and monitoring charging functions
• Integrated temperature sensor for accurate battery compensation
• Switch mode technology with a three-stage charging design ensures efficient power usage
• Compact and lightweight design with a durable white aluminum powder-coated casing, perfect for marine environments
• Easy installation with a 4-screw setup and a removable access panel for maintenance
• Manufactured in an ISO 9002-certified facility, ensuring top-tier production quality

Three-Stage Charging Process

The Dolphin Pro Series employs a precise three-stage charging curve to optimize battery health and longevity:

1. Bulk Stage: Delivers a high current to rapidly charge the battery until it reaches approximately 80% capacity.
2. Absorption Stage: Maintains the voltage while gradually reducing the current to complete the charging process up to 100%.
3. Float Stage: Lowers the voltage and current to maintain the battery at full charge without overcharging.

Technical Specifications

Charger Input Voltage	110/220VAC
Charger Output Amperage	90A
Charger Output Voltage	12V
Portability	No
Dimensions	9"H x 16"W x 19"L
Weight	16.65 lbs
UPC	786142995014

Owner's Manual (pdf)
