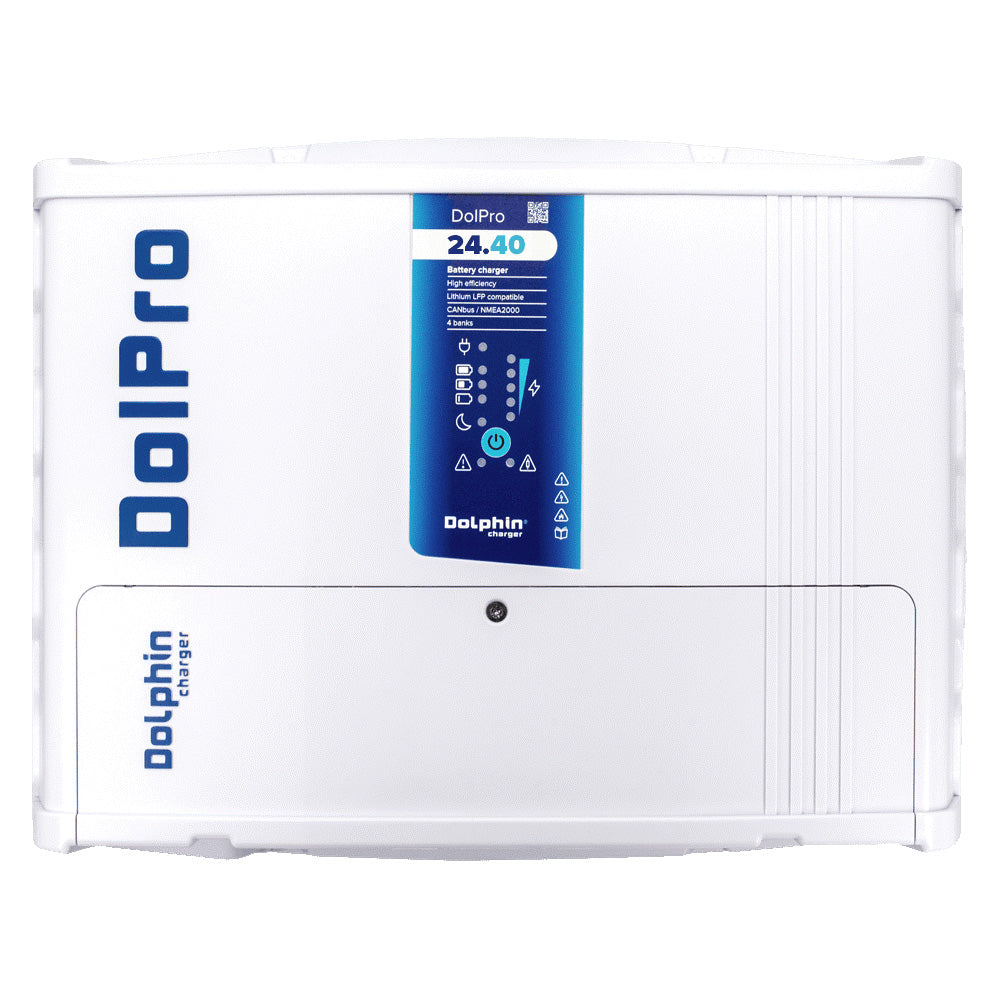

Dolphin Charger PRO Evo3 - 24V - 40A

The PRO Evo3 Marine Battery Charger series sets a new standard in power management for modern boats, combining cutting-edge power electronics with compact design. Engineered to deliver exceptional performance, these chargers are ideal for boat builders and marine enthusiasts seeking reliable and efficient charging solutions for their vessel's electrical systems.

Product Overview

The PRO Evo3 range offers versatile options tailored to various marine power needs, including models with 12V/90A, 24V/40A, 24V/60A, and 24V/100A outputs. These chargers are designed to be significantly more compact and lighter than previous models, reducing overall dimensions by up to 30% and weight by 60%, with the 24V/100A unit weighing just under 9 lbs. This makes the PRO Evo3 the highest power-to-space ratio charger available on the market.

Available Models

Model	Voltage	Amperage	Weight	Size Reduction
PRO Evo3	12V	90A	~14 lbs	16%
PRO Evo3	24V	40A	~9 lbs	16%
PRO Evo3	24V	60A	~9 lbs	16%
PRO Evo3	24V	100A	~9 lbs	30%

Key Features

• Ultra-Compact and Lightweight: The new PRO Evo3 chargers are engineered to be 30-60% lighter than their predecessors, ensuring easy installation and reduced space requirements without compromising on power.
• 4 Independent Isolated Outputs: Each PRO Evo3 charger provides four separate DC outputs, simplifying the management of multiple battery banks and enhancing system reliability.
• NMEA 2000 Integration: Seamlessly connect with your boat's electronic systems using the built-in NMEA 2000 communication ports, featuring certified N2K ports with the latest PGEN for optimal performance.
• High-Efficiency DSP Technology: Maintain full charging power even in extreme temperatures up to 50°C (122°F), thanks to advanced DSP technology that ensures no derating under harsh conditions.
• Selectable Battery Chemistries: Customize your charging process with eight selectable profiles, compatible with Lead Acid, Gel, AGM, and Lithium-Ion batteries, all equipped with temperature compensation for precise charging.
• Ignition Protected: Certified to ISO 8846 and SAE J1171 standards, the PRO Evo3 chargers offer ignition protection, ensuring safety and compliance with marine electrical regulations.

Why Choose PRO Evo3?

The PRO Evo3 Marine Battery Chargers are designed to meet the rigorous demands of modern boating. Their lightweight and compact design make them easy to install in confined spaces, while the robust feature set ensures reliable performance in diverse marine environments. Whether you're outfitting a new vessel or upgrading your existing electrical system, the PRO Evo3 offers unmatched efficiency, flexibility, and durability.

Technical Specifications

Specification	Details
Input Voltage	12V / 24V
Output Current	12V/90A, 24V/40A, 24V/60A, 24V/100A
Weight	Approximately 9 lbs (24V/100A model)
Dimensions Reduction	16% (12V/90A, 24V/40A, 24V/60A), 30% (24V/100A)
Operating Temperature	Up to 50°C / 122°F
Certifications	ISO 8846, SAE J1171
Communication	NMEA 2000 (CAN)
Battery Compatibility	Lead Acid, Gel, AGM, Lithium-Ion
Charging Profiles	8 Selectable Profiles with Temperature Compensation

Installation and Support

Installing the PRO Evo3 chargers is straightforward, thanks to their compact design and robust build quality. Each unit comes with comprehensive installation instructions and is backed by our dedicated customer support team, ensuring you have all the assistance you need to get your marine electrical system up and running efficiently.

Customer Reviews

"The PRO Evo3 charger has been a game-changer for our boat. Its lightweight design saved us valuable space, and the multiple DC outputs make managing our battery banks seamless." – John D.

"Reliable and efficient, even in high temperatures. Highly recommend the PRO Evo3 for any serious boater." – Sarah L.

Conclusion

For boat owners seeking a high-performance, reliable, and compact marine battery charger, the PRO Evo3 series offers unparalleled features and benefits. Upgrade your vessel's power management system with PRO Evo3 and experience the difference in performance and efficiency on your next voyage.
