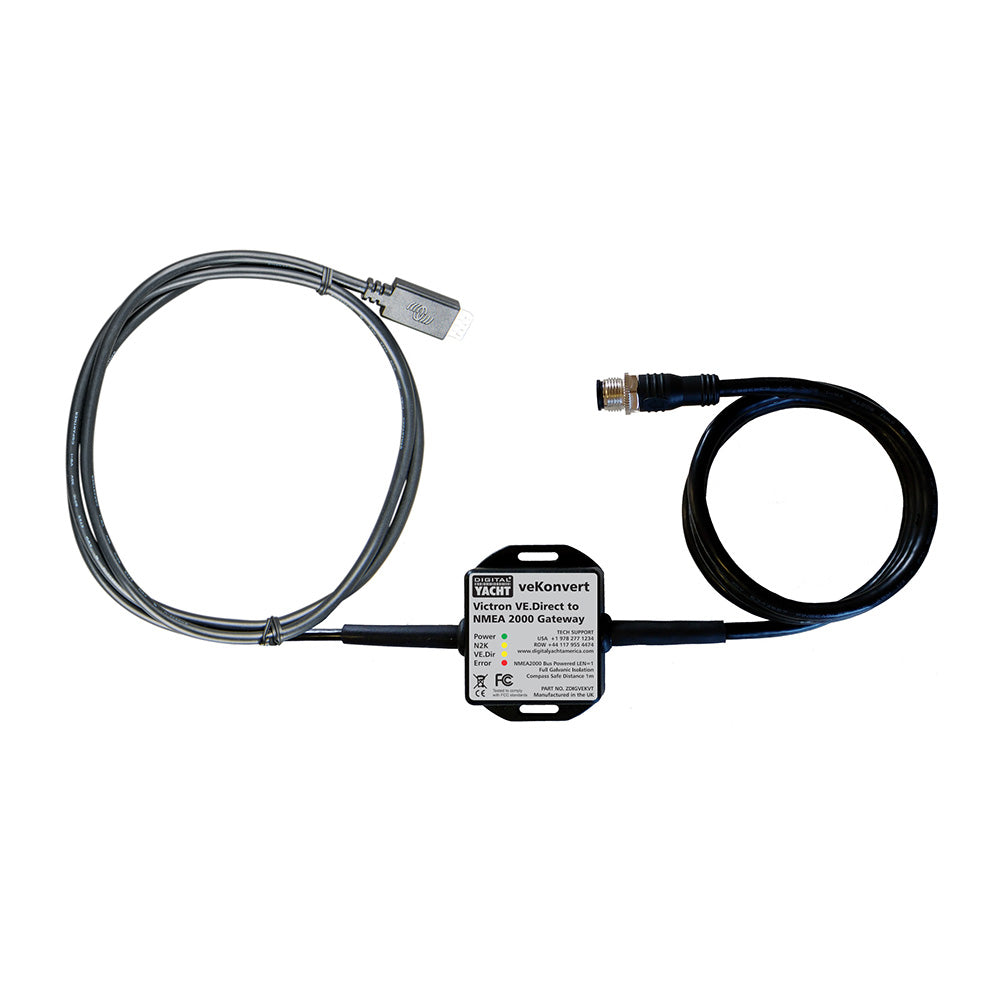

Digital Yacht veKonvert NMEA 2000 Gateway f Victron VE.Direct Output Devices - SmartShunts, BMVs, & MPPTs

The veKonvert NMEA 2000 Gateway seamlessly integrates Victron’s SmartShunt battery monitoring system into your boat’s NMEA 2000 network, transforming your navigation display into an advanced battery and energy management hub. Perfect for boaters and marine enthusiasts seeking a streamlined and efficient way to monitor their vessel’s electrical systems.

Key Features

• Seamless Integration: Connects VE.Direct compatible Victron devices such as SmartShunt, BMV Battery Monitors, and MPPT Solar Charge Controllers to NMEA 2000 networks.
• Cost-Effective Solution: Offers a more affordable and straightforward alternative to the sophisticated Cerbo module, ideal for smaller marine installations.

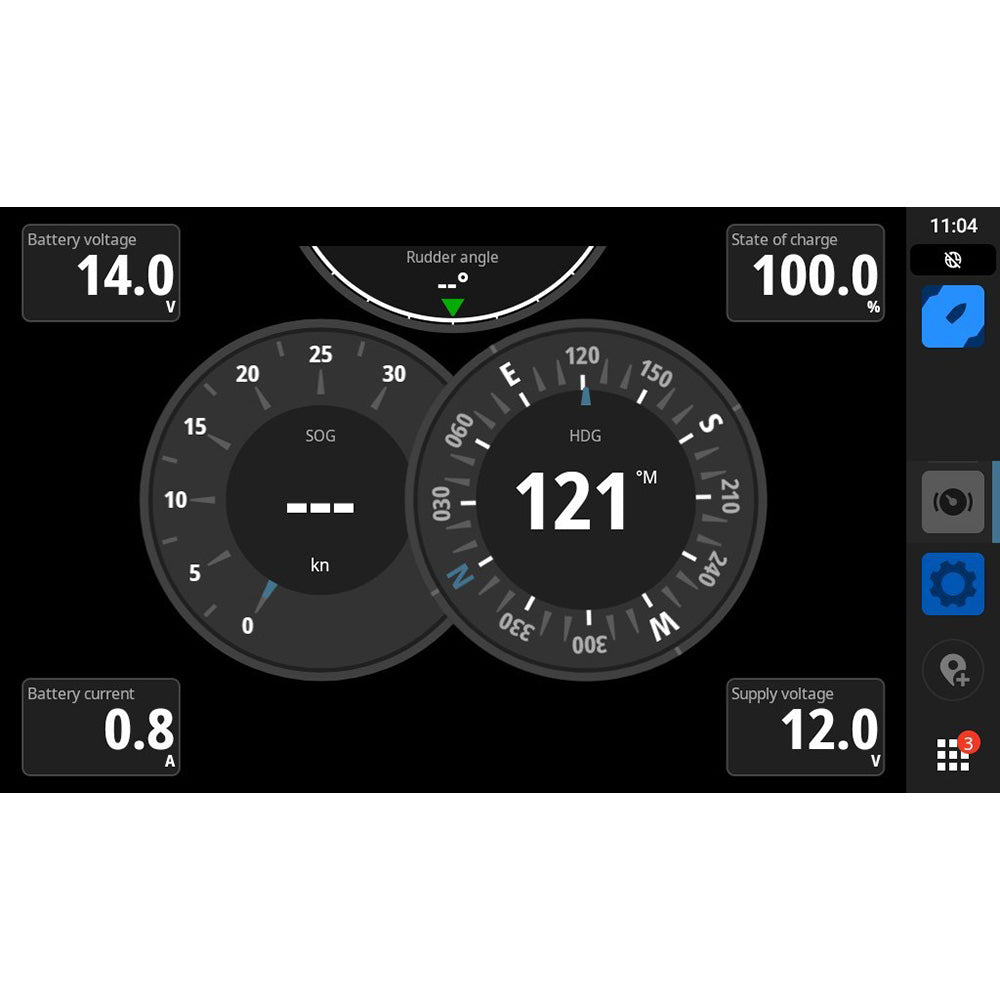

• Enhanced Dashboard Clarity: Consolidates electrical data into your main navigation display, maintaining a clear and uncluttered cockpit.
• Collaborative Design: Developed in partnership with Victron Energy and Digital Yacht, ensuring reliable performance and compatibility.
• Comprehensive Data Display: Provides essential battery information such as voltage, charge/discharge current, state of charge, and estimated time to depletion using advanced algorithms.
• Self-Powered Operation: Draws power directly from the NMEA 2000 bus, eliminating the need for additional power sources.
• Alert Generation: Converts alarms from BMV and SmartShunt monitors into NMEA 2000 alerts for real-time notifications on your display.
• Multi-Battery Support: Capable of managing multiple SmartShunt units, making it ideal for larger battery systems.

Easy Installation

Setting up the veKonvert NMEA 2000 Gateway is straightforward and hassle-free:

1. Connect the veKonvert unit into the NMEA 2000 backbone using a "T" connector.
2. Plug the VE.Direct custom connector from your SmartShunt into the veKonvert interface.
3. Power on your NMEA 2000 network, and the gateway will automatically integrate your battery and electrical data into the system.

Technical Specifications

Compatibility

The veKonvert NMEA 2000 Gateway is compatible with the following Victron Energy products:

• BMV-700, BMV-702, BMV-700H, BMV-712 Smart, BMV-710H Smart, BMV-712 Smart Rev2
• SmartShunt 500A/50mV, SmartShunt 1000A/50mV, SmartShunt 2000A/50mV
• All Victron MPPT Solar Charge Controllers

For a complete compatibility list, please refer to the FAQ tab on our store.

Important Notes

• The veKonvert gateway is not compatible with Victron Chargers and Inverters.
• Do not connect veKonvert to the VE.Direct interfaces of Victron "Consumers" such as Multiplus, Quattro, Cerbo, etc.

Ensure proper installation by following the guidelines to avoid any compatibility issues and to maintain the integrity of your marine electrical systems.
