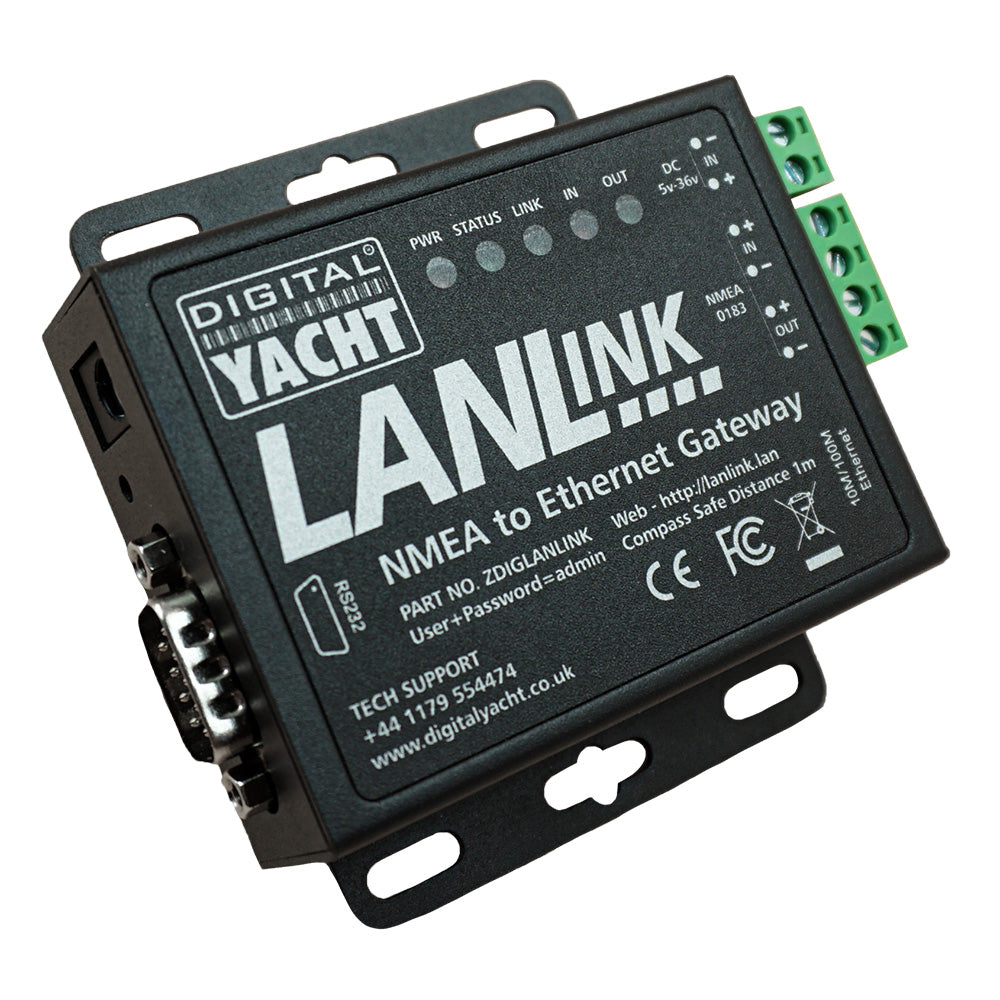

Digital Yacht LANLink NMEA 0183 To Ethernet Gateway

The LANLink NMEA 0183 To Ethernet Gateway seamlessly integrates your boat’s NMEA data into your existing network, enhancing connectivity and enabling a range of marine applications to access vital information effortlessly. Whether upgrading your vessel’s networking capabilities or expanding your onboard system, LANLink provides a reliable and user-friendly solution tailored for modern boating needs.

Key Features

• Dual Compatibility: Available in both NMEA 0183 and NMEA 2000 versions to suit various marine equipment standards.
• Low Power Consumption: Operates efficiently on 12/24V DC, drawing approximately 50mA at 12V DC.
• Easy Connectivity: Connects to your router or devices using simple RJ45 Cat 5/6 patch cables.
• User-Friendly Interface: Features a web-based interface that allows easy configuration of NMEA baud rates and IP/Port settings from any browser-enabled device.
• Multiple Connection Modes: Supports both TCP/IP and UDP connection modes, accommodating up to 5 simultaneous TCP/IP connections.
• Bi-Directional Communication: Facilitates two-way data exchange, enhancing the versatility of your onboard systems.
• Advanced NMEA 2000 Options: The NMEA 2000 variant offers raw mode with encapsulated PGNs and a conversion mode for applications supporting AIS, instruments, and GPS.
• Additional Connectivity: Includes an RS232 port for PC applications, providing expanded connectivity options.
• Status Indicators: Equipped with LED indicators for power, data input/output, network link, and server status for easy monitoring.

Easy Set-Up

• Intuitive Web UI: Access the menu-driven web interface through any web browser on a client device without the need for additional software.
• Configurable Settings: Adjust NMEA data rates (4800 or 38400 baud), choose between TCP/IP or UDP modes, and set your preferred port numbers with ease.
• Flexible IP Configuration: Set up your gateway with either a fixed or dynamic IP address to suit your network requirements.
• System Diagnostics: Utilize the status page to perform comprehensive system diagnostics and monitor the gateway’s performance.

Technical Specifications

Power	10-35V DC (approx. 50mA at 12V DC)
Network Port	Ethernet RJ45 10/100MB
IP Mode	Static or DHCP
Operating Mode	TCP/IP or UDP; supports up to 5 connected devices in TCP/IP mode (recommended)
NMEA Input	Configurable 4800 or 38400 baud (NMEA 0183)
NMEA 2000 Option	Available via iKonvertgateway
Operating Temperature	-25 to +70°C
LED Indicators	Power, Status, Link, Data In, Data Out
Additional Options	RS232 connectivity (non-concurrent with NMEA)
Dimensions (W x H)	95mm x 86mm

Compatible Applications

Enhance your navigation and monitoring capabilities by connecting with popular marine apps such as TZ iBoat, iNavX, NavLink, iSailor, Imray, and Weather 4D. Simply enter the gateway’s IP address and port to start streaming NMEA data to your preferred applications.

Why Choose LANLink?

LANLink stands out as a versatile and dependable gateway solution for modern boats, ensuring seamless data integration and connectivity. Its robust feature set, combined with ease of use and wide compatibility, makes it an essential component for any boating enthusiast looking to optimize their onboard systems.
