Digital Yacht iSeaSense Wireless Speed Depth Temp Pack

The iSeaSense Wireless Speed Depth Temp Pack by Digital Yacht revolutionizes marine instrumentation with its advanced NMEA 2000 and wireless connectivity, providing boaters with unparalleled flexibility and seamless data integration. Whether you're using a smartphone, tablet, or industry-standard multi-function display, iSeaSense ensures you have real-time access to critical boat data anytime, anywhere.

Comprehensive Marine Data Monitoring

The iSeaSense Pack 1 offers a complete solution for monitoring your vessel's depth, speed, temperature, and GPS data with top-quality, highly accurate sensors. Additionally, it includes a spatial sensor to detect pitch and roll, ensuring precise calibration of boat speed information even when the vessel heels.

Key Features:

• All-in-one wireless server and NMEA 2000 cabling for easy installation
• Advanced transducers for depth, speed, temperature, and heel/pitch measurements
• Fast 5Hz data updates for real-time monitoring
• Supports up to 3 connected devices with additional TCP/IP and UDP data connections
• Data compatibility with popular navigation apps like Navionics and OpenCPN

Seamless Connectivity and Integration

Designed for versatility, the iSeaSense system connects effortlessly to your existing NMEA 2000 network. The wireless interface allows you to view data on any browser-enabled device without the need for additional apps. The expandable backbone cabling pack includes spare cables and connection points for adding more NMEA 2000 devices, such as multi-function displays or other Digital Yacht instruments.

Wireless Server Capabilities:

• Creates beautiful graphical and numeric display pages accessible via any web browser
• Optimized for touchscreen displays on smartphones, tablets, and iPads
• Supports e-ink displays like Kindle for low-power monitoring
• Integrated Wi-Fi antenna covers boats up to 20 meters

User-Friendly Web Interface

Accessing and customizing your iSeaSense dashboard is simple. Open your preferred web browser, navigate to iSeaSense.local or enter the device's IP address, and instantly view all your instrument data in an intuitive layout. No complicated software or programming is required.

Customizable Display Pages:

• Pre-defined pages featuring digital data boxes and analog-style instruments
• Fully editable layouts to display the data you need
• Save and share configurations, perfect for production boats and OEMs

Advanced Transducer Technology

The integrated transducer delivers precise measurements for depth, speed, water temperature, and boat heel/pitch. With a robust 235KHz depth operation, it minimizes interference with other marine electronics and supports up to 100 meters of depth.

Transducer Specifications:

Feature	Details
Data Update Rate	Depth: 1X/second, Speed: 5X/second, Heel/Trim: 10X/second
Operating Frequency	235KHz
Maximum Depth	100 meters
Hull Deadrise Support	Up to 22 degrees
Cable Length	6 meters NMEA 2000
Mounting Size	Standard 2” thru-hull diameter
Additional Features	Bluetooth interface for advanced calibration and setup

Easy Installation and Expansion

The iSeaSense Pack 1 includes everything you need for a hassle-free setup, including the wireless server, NMEA 2000 cabling, and an advanced transducer. The included extra NMEA 2000 T piece allows for easy system expansion, making it simple to add more sensors or displays as your needs grow.

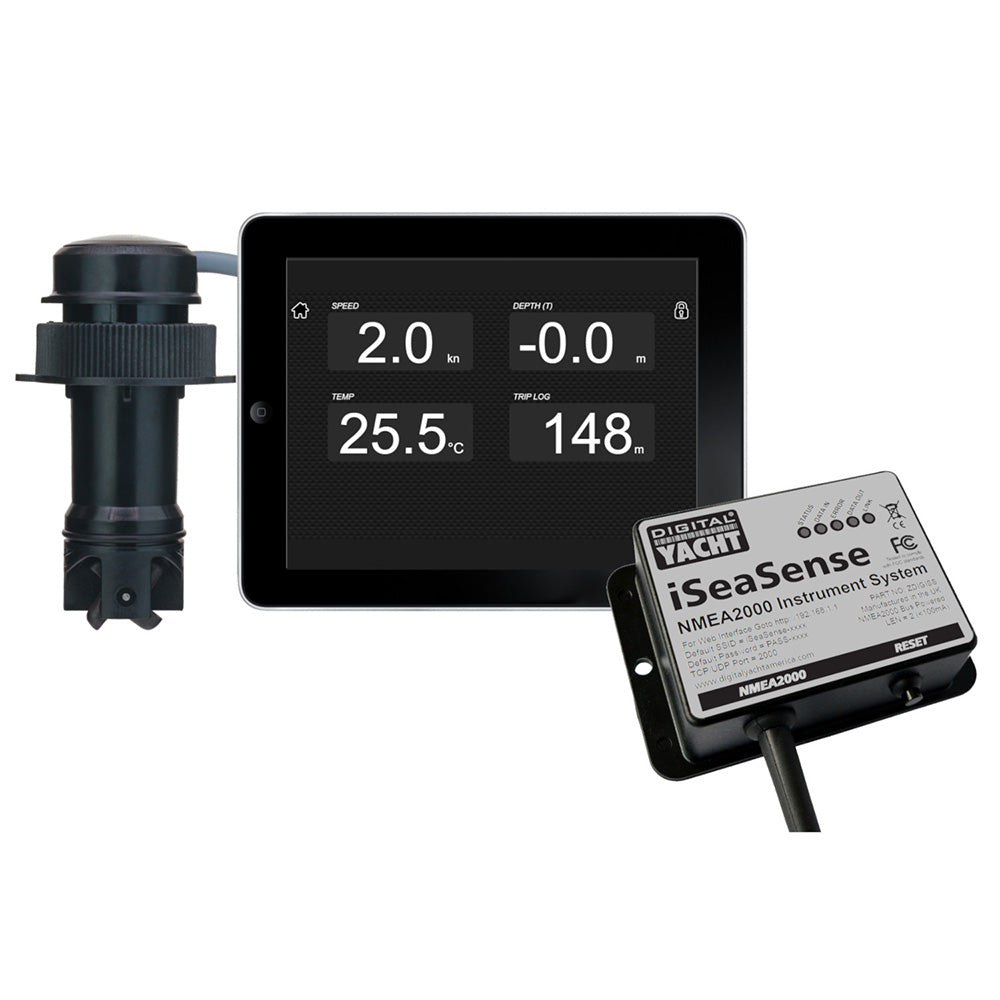

Included Components:

• iSeaSense wireless server
• NMEA 2000 backbone cabling pack
• Advanced depth, speed, temperature transducer with pitch and heel sensor
• Extra NMEA 2000 T piece for system expansion

Enhanced Data Utilization

iSeaSense doesn't just display data; it integrates seamlessly with hundreds of popular navigation applications and software, enhancing your boating experience. Whether you're planning a route with SailGrib or navigating with OpenCPN, iSeaSense ensures your data is readily available across platforms.

Compatible Applications:

• Navionics
• TZ iBoat
• OpenCPN
• SailGrib
• And many more...

Additional Resources

For more detailed information, download the Brochure (PDF).
