Digital Yacht iSeaSense Wireless Speed Depth Temp Pack Plus Wind

Enhance your boating experience with the iSeaSense Wireless Speed, Depth, Temp Pack Plus Wind from Digital Yacht. This comprehensive marine instrumentation kit seamlessly integrates speed, depth, temperature, and wind data, providing you with real-time insights to navigate your vessel with confidence.

Product Overview

The iSeaSense Wireless Speed, Depth, Temp Pack Plus Wind is part of Digital Yacht's iSeaSense range, designed for optimal marine performance. Utilizing the robust NMEA 2000 network and advanced wireless connectivity, this pack offers unparalleled flexibility and connectivity. It allows you to display your boat's vital data on smartphones, tablets, and industry-standard multi-function displays, making it an ideal choice for both recreational boaters and OEMs.

Easy Operation

Accessing your marine data is straightforward with the iSeaSense dashboard. Simply open your web browser and navigate to the iSeaSense IP address or iSeaSense.local to view all your instrument data on an intuitive dashboard. There's no need for complicated programming software or dedicated apps.

The dashboard comes with pre-defined pages displaying digital databoxes and analog instruments for various navigation data available on the NMEA 2000 network. Customize these pages to suit your preferences by adding or removing databoxes, and save or share configurations for standardized setups on production boats.

Key Features

• High-Accuracy Sensors: Equipped with precise sensors for depth, speed, wind, compass, and GPS, ensuring reliable data sharing across the NMEA 2000 network.
• Comprehensive Starter Packs: Two main starter packs simplify installation and ordering, eliminating the need for additional apps with powerful browser-based displays.
• WND100 Wind Sensor Integration: Includes a masthead wind sensor with a 20m cable and direct NMEA 2000 interface, reducing complex cabling and mast terminations.
• Advanced Transducers: Features depth, speed, temperature, and spatial sensors with algorithms that adjust boat speed data based on heel for enhanced accuracy.
• Expandable System: Full NMEA 2000 backbone cabling with spare connections allows easy addition of Digital Yacht instruments like GPS, AIS, and electronic compasses.
• Versatile Web Interface: Accessible via any web browser on iOS, Android, PC, Linux, or Mac, supporting up to three connected devices with rapid 5Hz updates.
• App Integration: Compatible with over 100 popular navigation apps and software, including Navionics, TZ iBoat, OpenCPN, and SailGrib.

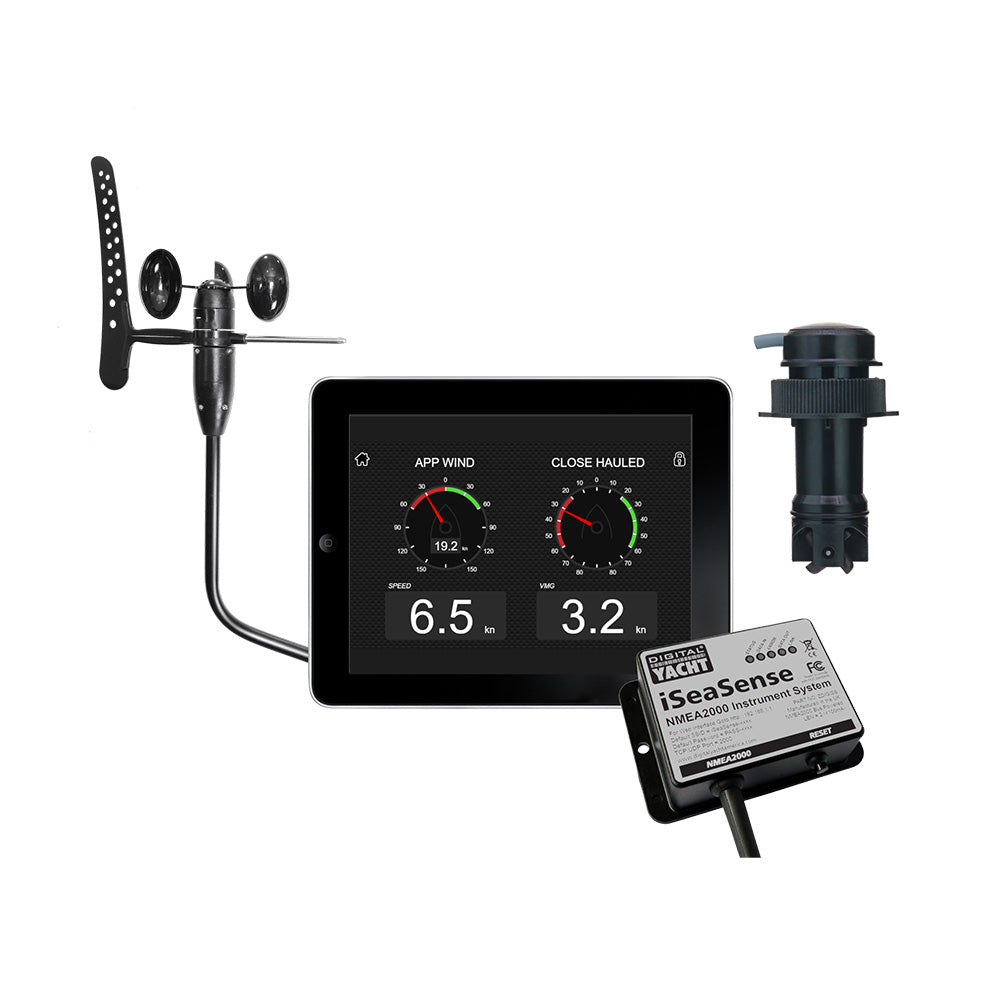

iSeaSense Pack Includes

• iSeaSense wireless server
• NMEA 2000 cabling
• Advanced depth, speed, temperature transducer with pitch and heel sensor
• WND100 masthead wind sensor with 20m cable and NMEA 2000 interface
• Extra NMEA 2000 T piece for system expansion

Interface Features

• Integrated NMEA 2000 interface and wireless gateway
• Customizable display pages for depth, speed, temperature, GPS, wind, navigation, and compass
• Network diagnostics, settings, and calibration tools
• Data logging capabilities
• Self-powered from the NMEA 2000 backbone
• Wi-Fi antenna suitable for boats up to 20m
• Supports additional TCP/IP and UDP connections for third-party apps on up to seven devices

Transducer Specifications

Feature	Details
Measurement Capabilities	Depth, boat speed, water temperature, boat heel/pitch
Update Rate	Depth: 1/sec, Speed: 5/sec, Heel/Trim: 10/sec
Frequency	235KHz (minimizes interference with 50/200KHz fish finders)
Maximum Depth	100m
Hull Deadrise Support	Up to 22 degrees
Cabling	6m NMEA 2000 cable, self-powered
Installation	Standard 2” thru-hull size/diameter
Additional Features	Bluetooth interface for advanced calibration; optional stainless steel and bronze skin fittings

Wind Sensor Details

• WND200 Package: Includes WND100 masthead unit and iKonvert NMEA 0183-2000 interface supporting 5Hz wind data updates.
• Power Specifications: 8-18V with ultra-low 25mA consumption.
• Cabling: Supplied with a 20m ultra-thin 4mm masthead cable, featuring 4-core screened wiring for easy installation.
• Integration: Comes with iKonvert NMEA 2000 interface for seamless system integration.
• Accuracy: Wind angle within 4 degrees and wind speed accuracy better than 3%.
• Wind Speed Range: 1.7 to 80 knots.
• Settling Time: Approximately 1.3 seconds.

Additional Resources

For detailed installation instructions and usage guidelines, download the Owner's Manual (PDF).
