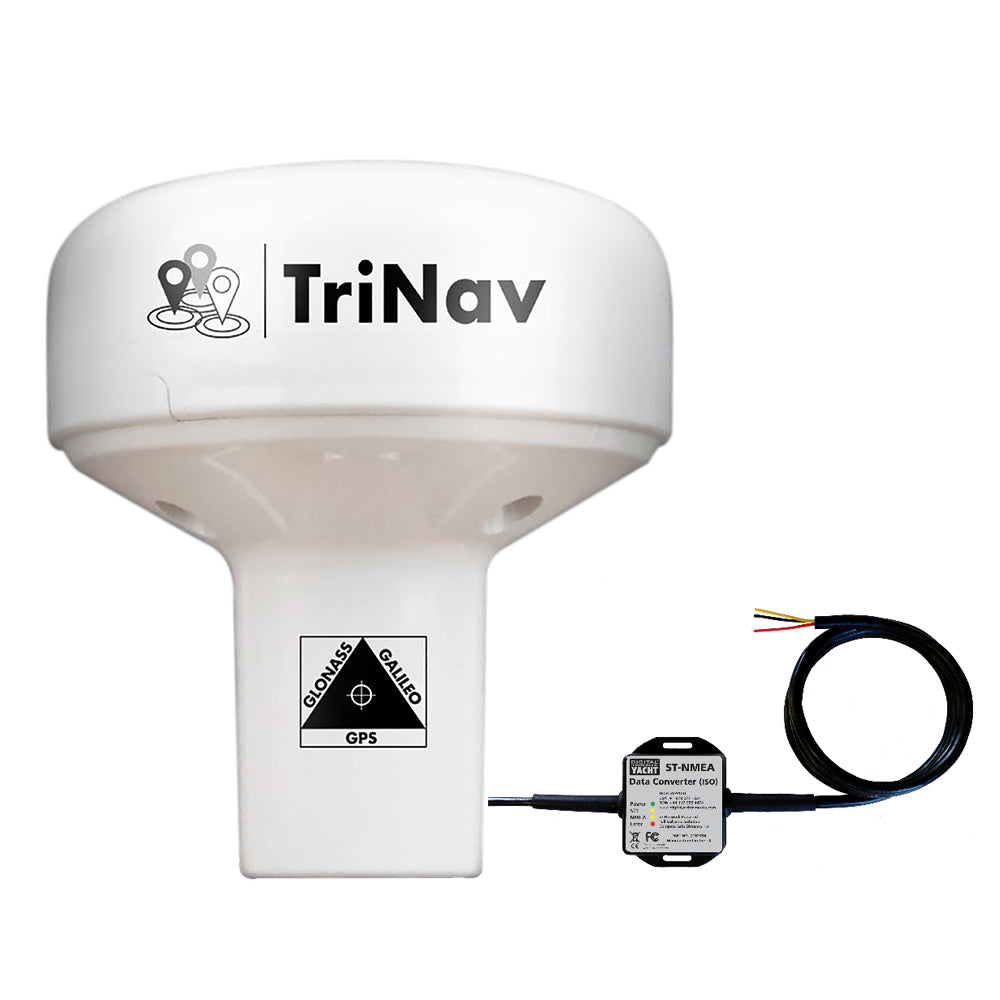

Digital Yacht GPS160 TriNav Sensor w/SeaTalk Interface Bundle

The GPS160 TriNav Sensor with SeaTalk Interface Bundle is a cutting-edge positioning device designed specifically for marine and boating applications. Combining GPS, Galileo, and Glonass satellite systems, it delivers unparalleled accuracy and reliability to enhance your navigation experience on the water.

Advanced TriNav Technology

The GPS160 leverages TriNav technology to utilize GPS, Galileo, and Glonass satellites simultaneously. This multi-GNSS approach ensures superior positioning accuracy and redundancy, providing you with the most reliable navigation data even in challenging environments.

Customizable Configuration

Field programmable to suit your specific needs, the GPS160 can operate in various modes, including:

• Single GNSS operation (e.g., using Galileo only)
• Multiple GNSS systems concurrently for enhanced accuracy
• Configurable output settings such as update rate and NMEA sentence structure

Connectivity Options

Choose the connectivity option that best fits your marine setup:

Variant	Description
NMEA 0183	Available with programmable baud rates of 4800, 38400, and 115200. Ideal for integrating with existing NMEA 0183 systems.
NMEA 2000	Bundled with the iKonvert interface for seamless installation into NMEA 2000 networks without cumbersome drop cables.
USB	Compatible with PC, Mac, and Linux systems, allowing direct connection for data logging and analysis.
Wireless (WLN10SM)	Provides wireless connectivity for flexible installation and ease of use.

MOB Support and Safety

The GPS160 includes support for an external MOB (Man Overboard) switch or device. When activated, it generates a “synthesized” AIS (Automatic Identification System) SART (Search and Rescue Transponder) MOB message on the NMEA output. This feature enables seamless interfacing with local plotters for immediate MOB identification and response.

Unmatched Positioning Accuracy

With support for GPS, Glonass, and Galileo positioning, the GPS160 ensures optimal fix accuracy and reliability. The TriNav technology synergizes signals from all three satellite systems, offering sub-meter accuracy in most scenarios.

High-Speed Data Transmission

The device supports multiple NMEA data output formats, including datum information, which is configurable via internal DIP switches. Users can select baud rates up to 115200 and adjust the update rate up to 18Hz to meet diverse data transmission requirements.

Energy Efficient Design

Designed with low power consumption in mind, the GPS160 operates at less than 20mA on a 12V DC system, ensuring it doesn't strain your vessel's power resources.

Easy Installation

The GPS160 features a puck installation or fits onto any third-party industry standard 1” x 14TPI threaded mount, allowing for versatile installation options tailored to your marine environment.

Additional Features

• 72 channel GPS, Glonass, and Galileo GNSS positioning receiver
• Sophisticated anti-spoofing algorithms for robust performance and interference rejection
• Professional ECDIS system support with datum sentence structures (DTM/GBS/GNS/GRS/GSA/GST)

For more detailed information, please refer to our Brochure (PDF).
