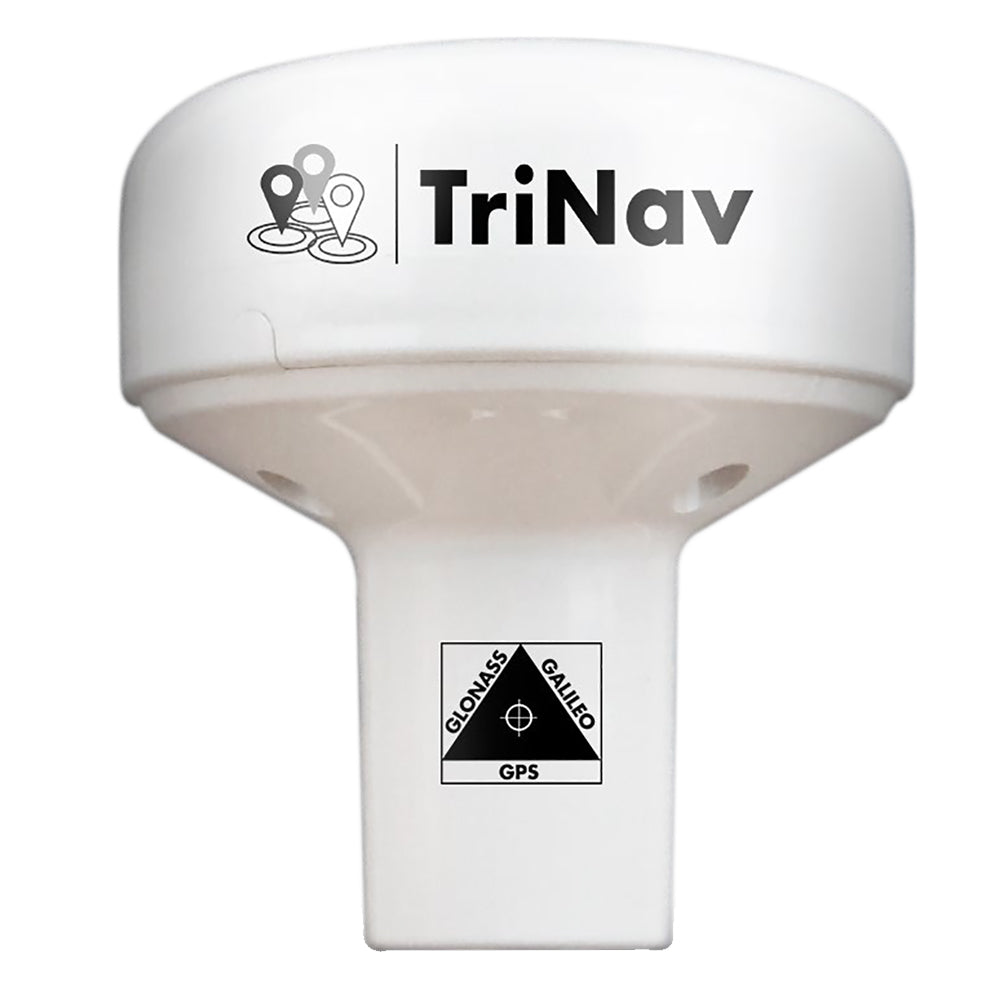

Digital Yacht GPS160 TriNav Sensor w/NMEA 0183 Output

The GPS160 TriNav Sensor is a cutting-edge marine navigation device that leverages GPS, Galileo, and Glonass satellite systems to deliver exceptional positioning accuracy and reliability. Designed for boaters and maritime professionals, this high-performance sensor ensures precise navigation even in challenging conditions.

Advanced TriNav Technology

The heart of the GPS160 lies in its TriNav technology, which simultaneously utilizes GPS, Galileo, and Glonass satellites. This multi-GNSS approach enhances positioning accuracy and provides robust redundancy, ensuring uninterrupted navigation data. Whether you're sailing, cruising, or engaged in professional marine operations, the GPS160 offers the precision you need.

Flexible Configuration Options

The GPS160 is highly adaptable, allowing field programming for various modes and output configurations. You can configure the device for single GNSS operation, such as using Galileo only, or customize settings like update rate and NMEA sentence structure to suit your specific marine navigation requirements.

Connectivity and Compatibility

Available in multiple variants, the GPS160 accommodates diverse connectivity needs:

• NMEA 0183 Output: Programmable baud rates of 4800, 38400, and 115200.
• USB Option: Compatible with PC, Mac, and Linux systems.
• NMEA 2000 Bundle: Includes the iKonvert interface for seamless NMEA 2000 integration without bulky drop cables.

Additionally, the GPS160 supports an external MOB switch or device, enabling the generation of a “synthesized” AIS SART MOB message on the NMEA output for MOB identification on local plotters.

Key Features

• 72-channel GPS, Glonass, and Galileo GNSS positioning receiver
• Sub-1 meter accuracy with TriNav technology for optimal signal combination
• Configurable for dedicated GPS, Glonass, or Galileo operation
• Advanced anti-spoofing algorithms for secure and reliable positioning
• Multiple output variants: NMEA 0183, NMEA 2000 (with iKonvert), and wireless (with WLN10SM)
• USB variant available for direct PC/Mac connections
• Selectable baud rates: 4800, 38400, and 115200 through internal DIP switches
• Customizable NMEA data formats, including datum information via DIP switches
• Adjustable update rate up to 18Hz
• Ultra-low power consumption (<20mA) at 12V DC
• Input for MOB switch/system to generate synthetic AIS MOB NMEA output
• Professional ECDIS system support with various datum sentence structures (DTM, GBS, GNS, GRS, GSA, GST)
• Versatile installation options: puck installation or 1” x 14 TPI threaded mount for 3rd party accessories

Technical Specifications

Specification	Details
Data Interface	NMEA 0183
Dimensions	4" H x 7" W x 10" L
Weight	1.2 lbs
UPC	703791696031

Galileo GNSS Integration

Galileo is Europe’s global navigation satellite system, offering mariners a third reliable positioning source alongside GPS and GLONASS. Fully operational since 2020, Galileo enhances the GPS160’s capability, providing higher precision and improved signal robustness for maritime navigation.

Enhance Your Marine Navigation

Equip your vessel with the GPS160 TriNav Sensor to experience superior navigation performance. Whether you're embarking on a leisure cruise or managing a commercial fleet, the GPS160 delivers the accuracy, flexibility, and reliability you need to navigate confidently.

Download the Brochure (PDF)
