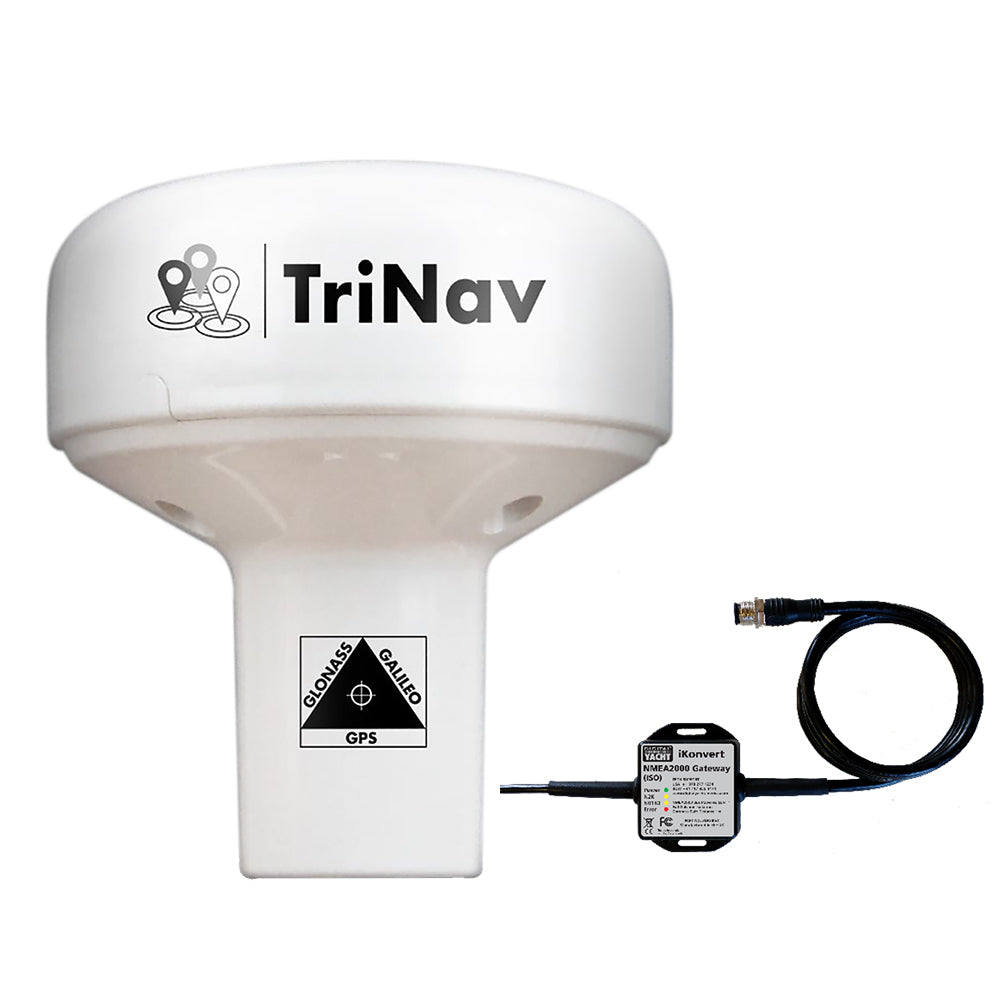

Digital Yacht GPS160 TriNav Sensor w/iKonvert NMEA 2000 Interface Bundle

The GPS160 TriNav Sensor with iKonvert NMEA 2000 Interface Bundle is a cutting-edge marine positioning system designed to deliver exceptional accuracy and reliability. Utilizing GPS, Galileo, and Glonass satellite systems simultaneously, the GPS160 ensures precise navigation and robust performance for all your boating needs.

Advanced TriNav Technology for Superior Accuracy

The GPS160 employs TriNav technology to integrate signals from GPS, Galileo, and Glonass, providing sub-meter positioning accuracy and enhanced reliability. This multi-GNSS capability ensures optimal performance and redundancy, making it an indispensable tool for mariners seeking dependable navigation solutions.

Flexible Configuration Options

Customize the GPS160 to suit your specific marine applications. The device can be programmed to operate with a single GNSS system, such as Galileo only, or utilize all three systems simultaneously for maximum accuracy. Additionally, you can configure output settings including update rates and NMEA sentence structures to align with your onboard electronics.

Seamless NMEA 2000 Integration

Included with the GPS160 is the iKonvert NMEA 2000 interface bundle, facilitating easy and flexible installation into your existing NMEA 2000 network without the need for cumbersome drop cables. This ensures smooth data communication across all your marine electronic devices, enhancing overall vessel navigation capabilities.

Enhanced Safety with MOB Support

The GPS160 supports an external MOB (Man Over Board) switch or device. When activated, it generates a synthesized AIS SART MOB message on the NMEA output. This feature allows for immediate MOB position identification on compatible plotters, significantly improving safety during marine operations.

Key Features

• 72-channel GPS, Glonass, and Galileo GNSS positioning receiver
• Sub-1 meter accuracy through advanced TriNav technology
• Configurable for dedicated GPS, Glonass, or Galileo operation
• Advanced anti-spoofing algorithms for enhanced positioning security
• Available in multiple variants:
  • NMEA 0183 with programmable baud rates (4800, 38400, 115200)
  • NMEA 2000 with iKonvert interface
  • Wireless option with WLN10SM
  • USB variant for PC, MAC, and Linux
• User-selectable baud rates via internal DIP switches
• Multiple NMEA data output formats, including datum information
• Up to 18Hz update rate, configurable by the user
• Ultra-low power consumption (<20mA) at 12V DC
• Input for MOB switch/system with synthetic AIS MOB NMEA output
• Professional ECDIS support with various datum sentence structures (DTM, GBS, GNS, GRS, GSA, GST)
• Compact puck installation or compatibility with 1” x 14 TPI threaded mounts

Technical Specifications

Data Interface	NMEA 2000
Box Dimensions	4" H x 7" W x 10" L
Weight	1.5 lbs
UPC	703791696055

Downloadable Resources

Download the Brochure (PDF)
