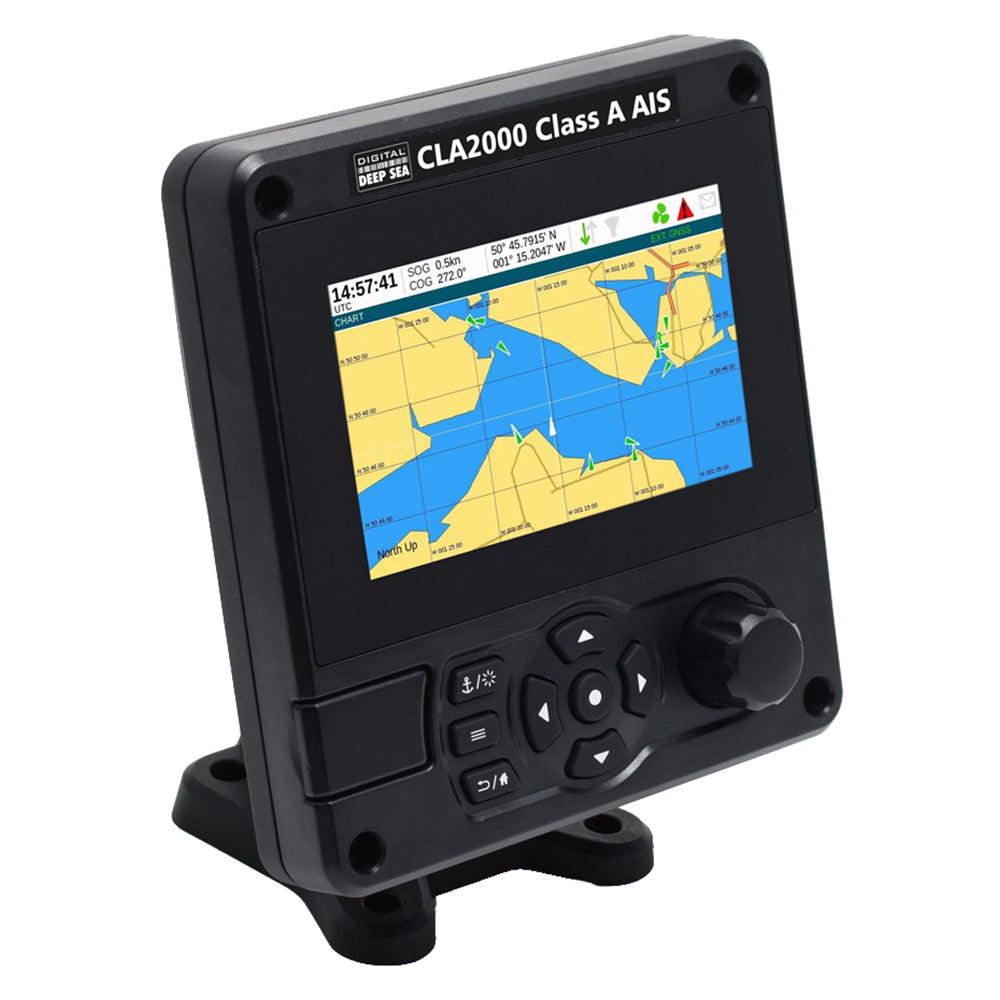

Digital Yacht CLA2000 Deep Sea Class A AIS Transponder

The CLA2000 Deep Sea Class A AIS Transponder by Digital Yacht offers unparalleled performance and reliability for maritime navigation and safety. Designed to meet SOLAS standards, this robust device ensures superior AIS message handling in both open seas and inland waterways.

Key Features

• Globally Approved Class A AIS Transponder: Meets SOLAS and inland waterway regulations for vessels over 300GRT.
• High-Resolution Display: 5” hi-res color screen (800 x 480 pixels) with an intuitive user interface for easy navigation and management.
• Durable and Waterproof: IP67 rated, ensuring reliable performance in harsh marine environments.
• Advanced SDR AIS Technology: Enhanced message receive, transmit, and processing capabilities for maximum target range and accuracy.
• Integrated GPS: Comes with an internal GPS module and external antenna options, or can utilize an external NMEA feed based on user preference.
• Comprehensive Connectivity:
  • 3 x NMEA 0183 interfaces for bi-directional communication with plotters, ECDIS, and radar systems.
  • 1 x NMEA 2000 interface for seamless integration with modern marine networks.
  • 3 x sensor input ports for additional devices like BlueBoard, external GNSS, or gyros.
• Expandable Storage: Micro SD card slot for software updates, AIS data logging, and compatibility with C-Map MAX charting cards.
• Wireless Connectivity: Integrated Wi-Fi allows connection to smartphones, tablets, PCs, and Macs, supporting up to 5 simultaneous devices in client or AP mode.
• AIS SART and MOB Detection: Optimized software with dedicated icons and automatic alarms for enhanced safety during rescue operations.
• User Programmable Alarms: Customizable alarms for CPA (Closest Point of Approach) and TCPA (Time to Closest Point of Approach).
• Advanced Target Filtering: Reduces clutter and enhances target identification for better situational awareness.
• External Alarm and Remote Silence: Additional safety features for integrated alarm systems and remote control of alerts.

Specifications

Feature	Details
GPS Included	Yes
Function	Receive/Transmit
Display Included	Yes
AIS Class	A
Dimensions	5" H x 10" W x 16" L
Weight	6.25 lbs
Waterproof Rating	IP67
Display Resolution	800 x 480 pixels
Wireless Connectivity	Built-in Wi-Fi

Applications

The CLA2000 is versatile and ideal for a wide range of marine applications including:

• SOLAS mandated vessels over 300GRT
• Workboats and rescue services
• Inland waterways vessels
• Rigid Inflatable Boats (RIBs)
• Large yachts seeking premium AIS performance and safety features

Enhanced Safety Features

The CLA2000 is equipped with specialized software to detect AIS SART (Search and Rescue Transponder) and MOB (Man Overboard) devices. Key safety features include:

• Dedicated AIS Icons: Visual indicators for SART and MOB targets.
• Automatic Alarms: Immediate alerts upon detection of SART beacon activation.
• Relative Bearing Calculation: Assists in quickly locating and rescuing the detected target.

Connectivity and Integration

Seamlessly integrate the CLA2000 into your existing marine systems with its extensive connectivity options:

• NMEA 0183 & NMEA 2000 Interfaces: Connect to plotters, ECDIS, radar, and other marine electronics.
• Wireless Interface: Share AIS and position data with smartphones, tablets, PCs, and Macs using native or third-party navigation apps.
• SD Card Support: Perform software updates, log AIS data, and utilize C-Map MAX detailed charting.

User-Friendly Design

The CLA2000 features a user-centric design with:

• Easy Mounting Options: Choose between bracket or flush mounting based on your vessel’s layout.
• Intuitive Interface: Navigate through features quickly with a responsive touch screen.
• Remote Controls: External alarms and remote silence switches for enhanced operational flexibility.

Download the Quick Guide (PDF)
