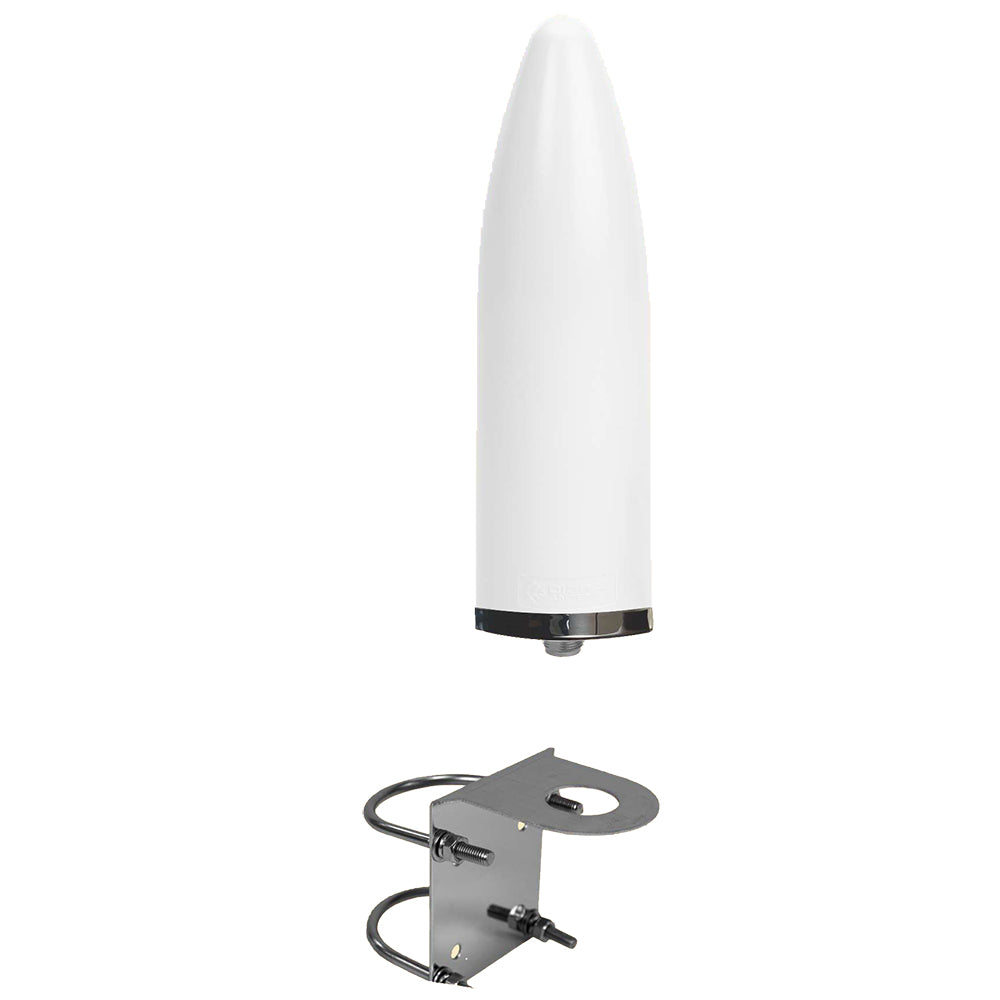

Digital Antenna Wideband Cellular Antenna 4G/5G/LTE/WiFi 9dBi Omni w/Bracket

Enhance your marine communication and connectivity with our high-performance Wideband Cellular Antenna, specifically designed for boating and marine environments. This 9dBi omni-directional antenna ensures robust 4G, 5G, LTE, and WiFi signals, keeping you connected on the water.

Key Features

• Optimized for marine use with a rugged stainless steel base
• 9dBi omni-directional gain for maximum signal strength
• Wide frequency range: 600-3000 MHz for versatile connectivity
• Low-profile design reduces wind resistance and enhances aesthetics
• UV-stable polyurethane finish withstands harsh marine environments
• Foam-filled construction resists extreme vibrations
• Includes L bracket and U-bolts for secure mounting
• Weatherproof N female connector ensures reliable connections
• Hand-soldered copper elements for superior performance
• Designed and manufactured in the USA by Digital Antenna
• Comes with a 5-year warranty for peace of mind

Technical Specifications

Parameter	Details
Radiation Pattern	Omni-Directional
Gain	9dBi
Bandwidth & VSWR	<1.5:1 from 614-3000 MHz (3G, 4G, 5G, WiFi)
Impedance	50 Ohms
Max Input Power	50 Watts
Exterior Finish	White polyurethane high gloss, UV stable
Dimensions	8.875" L x 2.375" OD (225 x 60 mm)
Weight	15 oz
RF Connector	N Type Female
Installation	Stainless Steel L bracket for pole/wall mounting
Elements	Copper - Hand soldered
Polarization	Vertical
Wind Rating	>160 KPH
Operating Temperature	30º F to +175º F
Compliance	RoHS compliant
Warranty	5 Years

Applications

• Marine vessels and boats
• Commercial ships
• Recreational boating
• Government marine operations
• Land-based installations for marine facilities
• Machine-to-Machine (M2M) communication
• Utility and fixed marine locations

Mounting Options

Choose the mounting solution that best fits your vessel:

• L-Bracket
• 1" x 14 Threads
• Deck Mount
• Raised Deck Mount

Note: The antenna comes with an L bracket and U-bolts for installation. Ensure you have the appropriate mounting hardware for your specific setup.

Installation Requirements

A 50 Ohm coaxial cable is required to connect the antenna to your cellular device, booster, modem, or WiFi router. Please note that the cable is not included with the antenna.

Why Choose Our Wideband Cellular Antenna?

Our antenna is engineered to deliver exceptional performance in the demanding marine environment. The stainless steel base and UV-stable finish ensure longevity, while the 9dBi gain provides strong signal reception and transmission. Whether you're navigating the open waters or stationed at a marina, our antenna keeps your connectivity reliable and efficient.

Download the Quick Guide (PDF)
