Digital Antenna 758-MW-S 8' 8' 6dBi Gain Advanced Multi-Band Marine Antenna

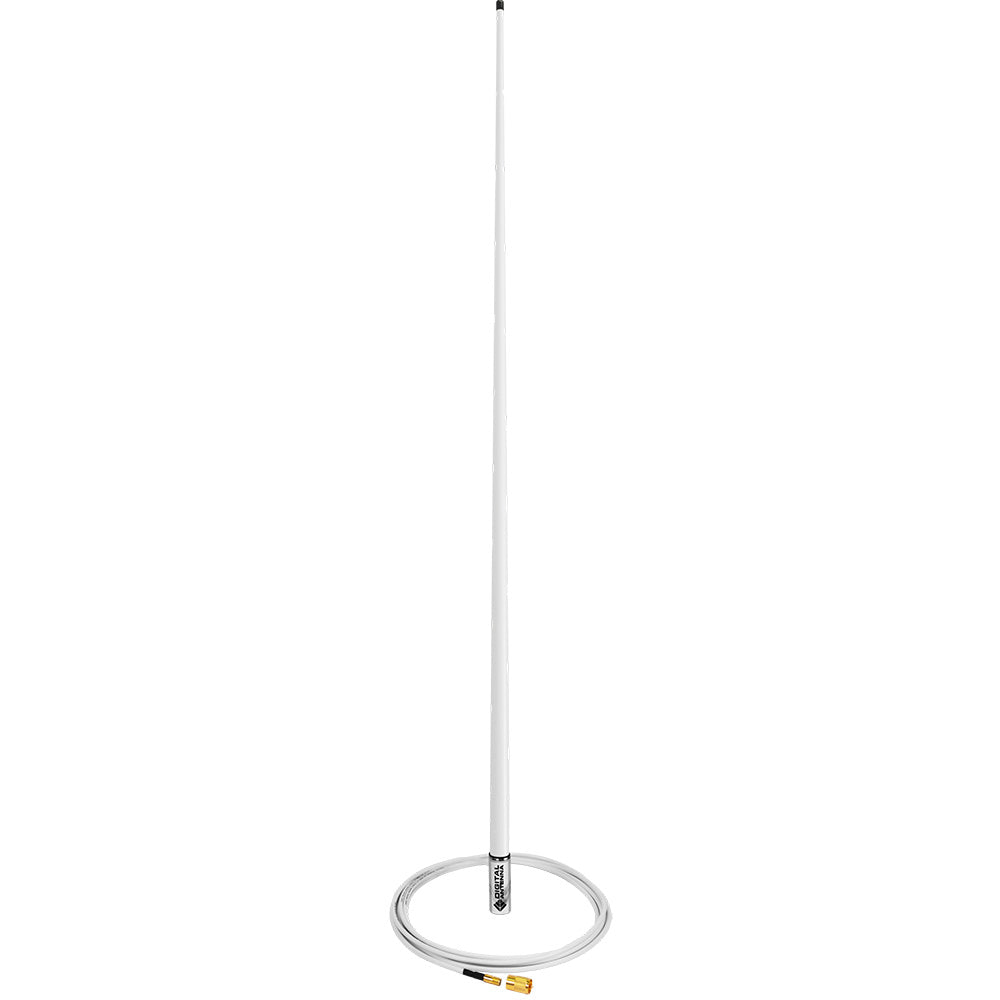

758-MW-S 8' 8' 6dBi Gain Advanced Multi-Band Marine Antenna

Digital Antenna's Model 758-MW-S is the first marine antenna designed for seamless multi-band communication, ensuring powerful signals across various frequency bands. Whether you're offshore, navigating busy harbors, or relying on emergency communication, this high-performance antenna delivers unmatched reliability.

Designed to withstand the rigors of offshore communication, the 758-MW-S sets a new standard in marine antenna technology, delivering unparalleled performance, longevity, and signal stability across critical frequency bands.

Features:

• Seamless multi-band operation on VHF, UHF, and 800/900 MHz frequencies
• 20' premium low-loss DA195 cable for maximum signal strength
• Factory-installed mini-UHF connector with PL259 adapter for quick and secure connection to the radio
• Marine-grade durability, featuring a 316 stainless steel ferrule for corrosion resistance
• UV-stable polyurethane-coated rod protects against harsh marine conditions
• 5-year manufacturer warranty, ensuring long-term reliability

Specifications:

• Radiation Pattern Omni-Directional: Gain 6dBi
• Frequencies: 134-176 MHz, 403-470 MHz, 450-512 MHz,851-870 MHz
• Cable: 20’ Digital Antenna, exclusive low-loss DA195
• Impedance: 50 ohms
• Max Input Power: 50 watts
• Exterior Finish: White polyurethane high gloss UV stable
• Dimensions: 8’ length x 1” OD taper
• Weight: 2.3 lbs.
• RF Connector: Mini-UHF female with included PL259 adapter
• Installation: 1”x14tpi female threaded base
• Elements: Copper - Hand soldered
• Polarization: Vertical
• Wind Rating: >160KPH
• Operating Temp: 30º F to +175º F
• Attaches to 1" x 14 threaded base (not included)
• Factory-installed mini-UHF Connector & PL259 adapter
• Use with all DMR radios using VHF, UHF Band 1, UHF Band 2, 800/900 MHZ
• Warranty: 5 Years

Applications:

• Commercial
• Recreational
• Government Vessels

Quick Guide (pdf)
