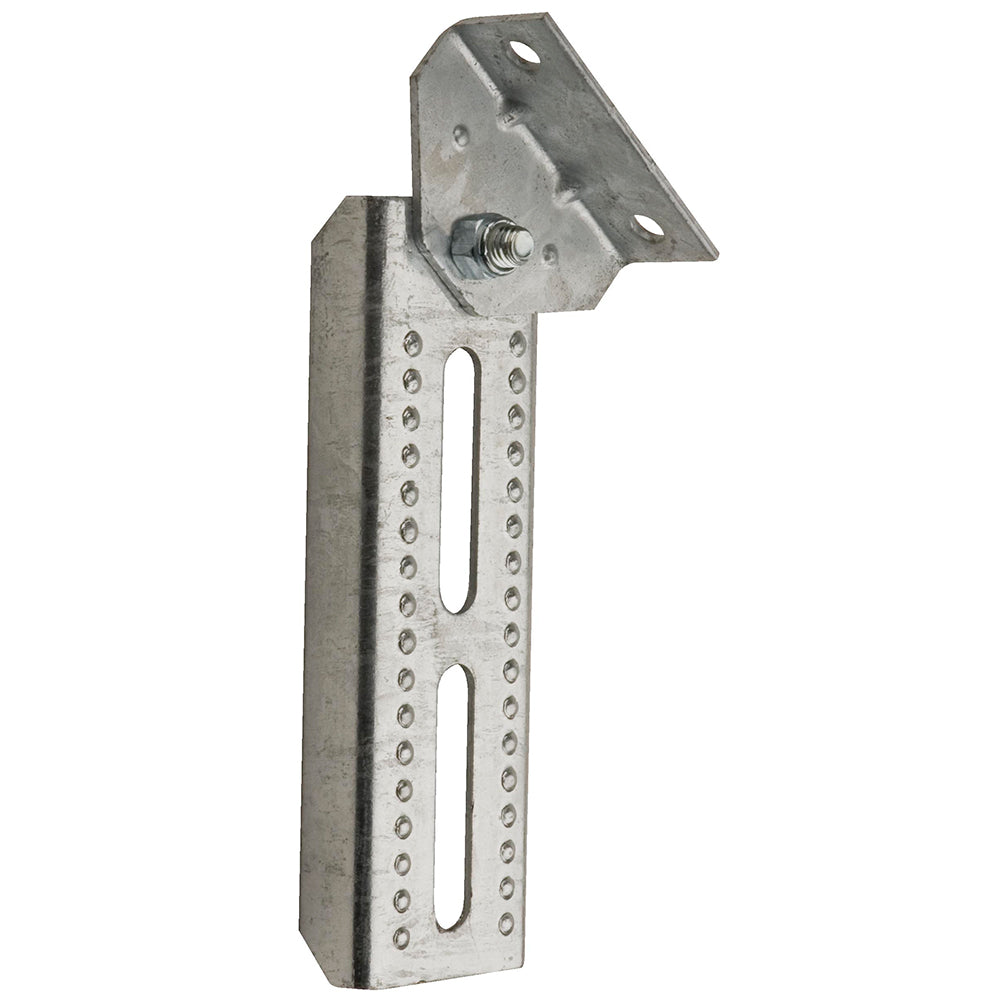

C.E. Smith Swivel Bracket Assembly - 8" Bracket

Enhance the stability and functionality of your marine vessel with our premium Swivel Bracket Assembly. Specifically designed to support bunk boards, this assembly ensures secure and adjustable placement, perfectly suited for the demanding conditions of marine and boating environments.

Product Overview

The Swivel Bracket Assembly features robust construction with hot-dip galvanizing, providing exceptional resistance against corrosion and wear. This ensures long-lasting performance, even in the harshest marine settings. The assembly comprises the Bolster Bracket model 10100G and the Swivel Bracket model 10200G, seamlessly working together to deliver reliable support for your bunk systems.

Key Features

Component	Specifications
Bolster Bracket	Length: 8 inches Material: 11 gauge steel Width: 2-1/2 inches Slot Dimensions: 2-3/4 inches with 1/2 inch wide slots Swivel Hole Diameter: 1/2 inch
Swivel Bracket	Material: 11 gauge steel Bunk Flange Size: 1-3/8 inches x 3-1/2 inches Bunk Flange Holes: 3/8 inch diameter Swivel Flange Dimensions: 2 inches tall x 3-1/2 inches Swivel Flange Hole Diameter: 1/2 inch Hole Centers: 2-1/2 inches apart
Overall Assembly	Length: 9 inches

Why Choose Our Swivel Bracket Assembly?

• Durability: Crafted from high-quality 11 gauge steel and treated with hot-dip galvanizing to withstand corrosive marine environments.
• Adjustability: The design allows for easy adjustment of bunk boards, providing flexibility to accommodate different setups.
• Easy Installation: Thoughtfully designed with precise dimensions and hole placements for straightforward mounting on your vessel.
• Compatibility: Compatible with a variety of bunk systems, ensuring versatile use across different marine applications.

Installation Instructions

1. Position the Bolster Bracket at the desired location on your vessel's structure.
2. Secure the bracket using appropriate marine-grade fasteners.
3. Attach the Swivel Bracket to the Bolster Bracket, aligning the swivel holes.
4. Ensure all connections are tight and secure to maintain stability.
5. Adjust the bunk boards as needed to achieve the optimal configuration.

Specifications

• Material: 11 gauge steel
• Finish: Hot-dip galvanized
• Bolster Bracket Dimensions: 8 inches length, 2-1/2 inches width
• Swivel Bracket Dimensions: 9 inches overall length
• Compatibility: Suitable for various marine bunk systems

Customer Support

We stand behind the quality of our Swivel Bracket Assembly. If you have any questions or need assistance with installation, our dedicated support team is here to help ensure your marine projects are successful.
