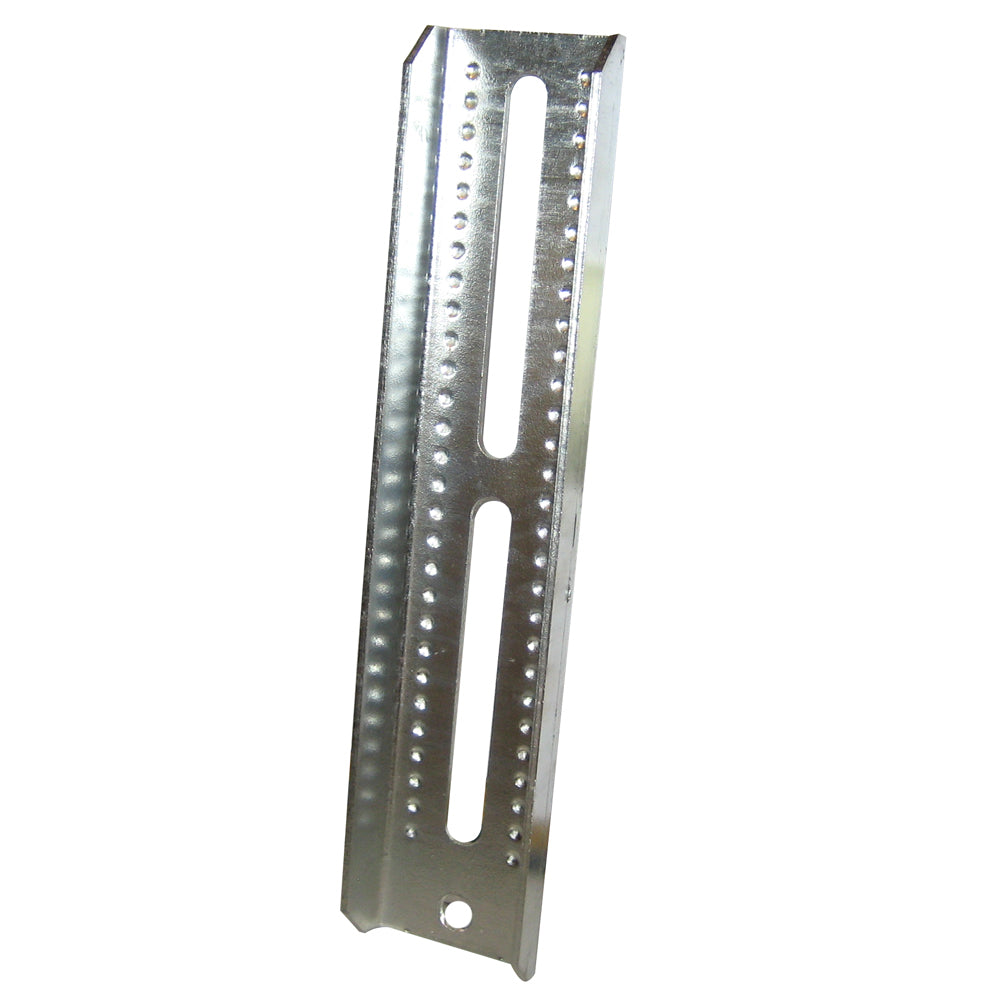

C.E. Smith Double Slot Swivel Bolster Bracket Assembly - 12"

The Double Slot Swivel Bolster Bracket Assembly - 12" is engineered specifically for marine and boating applications, providing robust support and enhanced maneuverability for your roller bunks. Designed to endure the demanding conditions of the marine environment, this assembly ensures long-lasting performance and reliability on your vessel.

Product Overview

C.E. Smith's adjustable bracket assembly integrates the bolster bracket-10102G and swivel bracket-10200G to deliver a seamless support system for roller bunks. Hot-dip galvanized to resist corrosion, this assembly guarantees durability and consistent performance even in the harshest marine settings.

Key Features

• Durable Construction: Made from 11 gauge material with hot-dip galvanizing, ensuring longevity and resistance to rust and corrosion.
• Adjustable Design: Features double slots and swivel capabilities for versatile installation and alignment with various bunk setups.
• Precision Engineering: Carefully designed dimensions to fit standard marine roller bunks, providing secure and stable support.
• Easy Installation: Simplifies the mounting process with pre-drilled holes and compatible dimensions for seamless integration.

Specifications

Component	Specifications
Overall Assembly Length	12 inches
Bolster Bracket	Length: 12" Material Gauge: 11 Width: 2-1/2" Slot Width: 1/2" Swivel Hole Diameter: 1/2" Slot Length: 4-3/4"
Swivel Bracket	Material Gauge: 11 Bunk Flange Dimensions: 1-3/8" x 3-1/2" Bunk Flange Hole Diameter: 3/8" Swivel Flange Dimensions: 2" tall x 3-1/2" Swivel Flange Hole Diameter: 1/2" Hole Centers: 2-1/2"

Compatibility

This bracket assembly is compatible with most standard marine roller bunks. Ensure to verify the dimensions and mounting requirements of your specific bunk model for optimal fit and performance.

Installation Instructions

1. Position the bolster bracket at the desired location on your vessel's structure.
2. Align the swivel bracket with the bolster bracket slots.
3. Secure both brackets using appropriate marine-grade fasteners, ensuring all holes are properly aligned.
4. Adjust the swivel tension to achieve the desired range of motion for your roller bunks.
5. Verify all connections are tight and the assembly operates smoothly.

Maintenance Tips

To maximize the lifespan of your Double Slot Swivel Bolster Bracket Assembly:

• Regularly inspect all bolts and connections for signs of wear or corrosion.
• Clean the brackets with fresh water to remove salt and debris after each use.
• Apply a marine-grade lubricant to moving parts to ensure smooth operation.
• Store your vessel in a dry environment when not in use to minimize exposure to harsh conditions.

Why Choose C.E. Smith?

C.E. Smith is a trusted name in marine hardware, committed to delivering high-quality, reliable products tailored for boating enthusiasts. Our Double Slot Swivel Bolster Bracket Assembly exemplifies our dedication to excellence, combining superior materials with thoughtful design to meet the unique demands of the marine environment.
