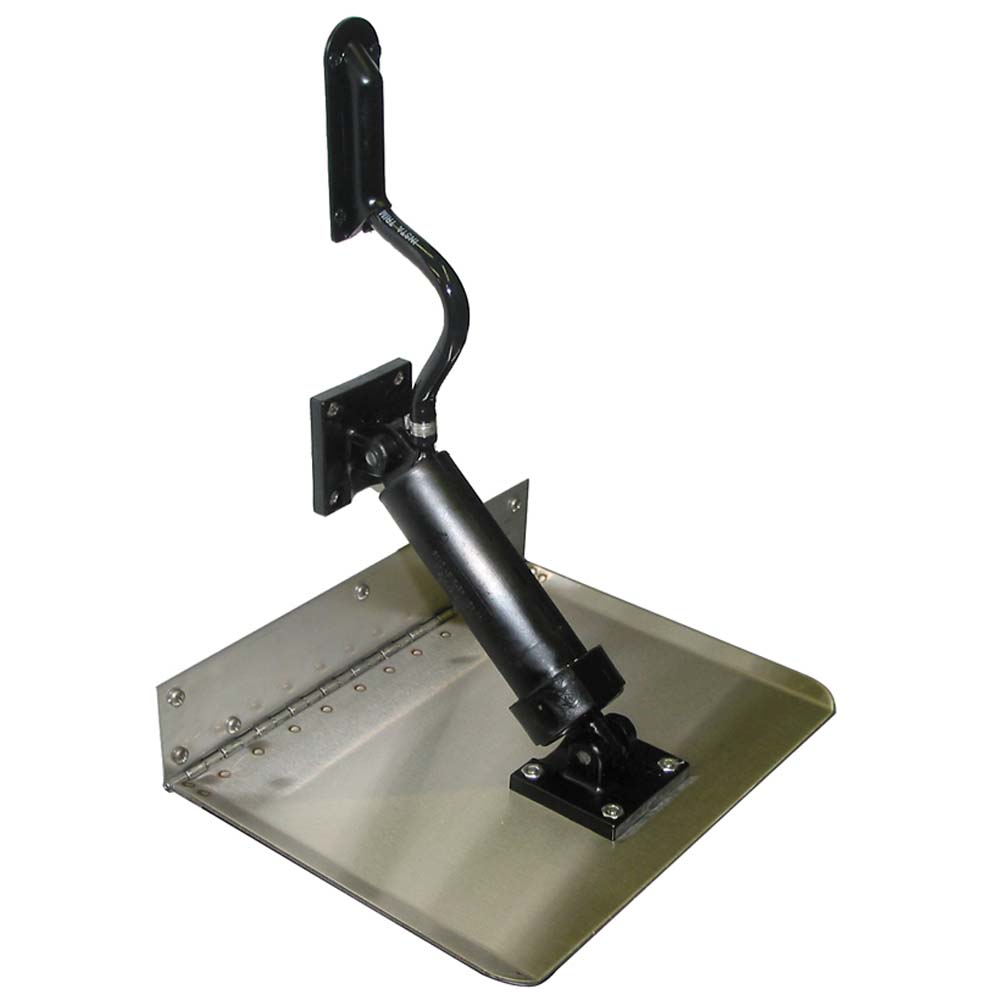

Boat Leveler 12" x 8" Trim Tab Set

Enhance your boating experience with our top-of-the-line hydraulic actuator system, expertly engineered for optimal performance and reliability on the water. Designed specifically for marine applications, this comprehensive kit ensures smooth and precise trim tab adjustments, providing unparalleled stability and control for your vessel.

Features

Wiring

• Color-coded wiring available in 25' to 40' lengths, featuring quick connect fittings for easy installation.
• Meets federal standards for heat, pull, and insulation, ensuring durability and safety in marine environments.

Solenoids

• Custom designed for Insta-Trim Boat Leveler Co., epoxy sealed for humidity resistance to prevent shorting.
• Locks tabs in any position, eliminating driftback for consistent performance.
• Barb-type hose fittings provide tight, secure connections ensuring reliability.

Motor

• Powerful motor with coated wiring and a thermal overload feature to resist temperature and amperage build-up.
• 1 3/4" stack windings and top mounting prevent oil leakage.
• Mounted with stainless steel nuts and bolts for easy disassembly and maintenance.

Brackets

• Swivel-type brackets allow for adjustable cylinder mounting at any angle.
• Knockout pins act as shear pins, engaging when the tab strikes an object for added protection.

Pump

• Exclusively designed and engineered by Insta-Trim for superior performance.
• Built-in bypass set at 400 P.S.I. tolerance, maintained to .00025 precision.
• Consistently circulates oil without exceeding 16 amperage, preventing stalling or over-pressurization.

Motor Cover

• Dimensions: 4 1/2" D x 6" W x 11" H, made from high-impact ABS plastic.
• Includes a built-in oil reservoir and mounts easily with two screws.
• Front-placed filler for easy access and protection from occasional washdowns.

Cylinders

• Impact-resistant, fiberglass-reinforced nylon cylinders that eliminate expansion and resist UV rays.
• Equipped with two expanding type seals and an O-ring to prevent high and low-pressure leaks.
• Barbed cylinder fittings and inserted tubular rods prevent hose blow-off and breakage.
• Stainless steel springs retract the cylinder when the boat is not in motion.

Trim Tabs

• Constructed from 12 gauge 304 stainless steel for maximum durability and resistance to electrolysis.
• Available in standard and custom lengths to fit various marine applications.
• Insta-Trim's hinges minimize spray and are suitable for both transom and bottom mounting.

Hose

• Exclusively designed and manufactured for Insta-Trim with nylon-reinforced webbing and protective PVC coating.
• Rated at 2000 lb. burst pressure, with 15' of hose included for your system setup.
• Hoses enter the transom 6" above the waterline and are securely held with hose trim.
• Stainless steel clamps ensure a secure connection to the barb fittings at the solenoids.

Rocker Type Controls

• Mounted conveniently on the dash for easy and intuitive operation while underway.

Included with your purchase:

• One pint of Insta-Trim biodegradable transmission oil
• Funnel
• Mounting hardware

Specifications

Construction	Stainless Steel
Actuator Type	Hydraulic
Box Dimensions	9"H x 12"W x 19"L
Weight	21.8 lbs
