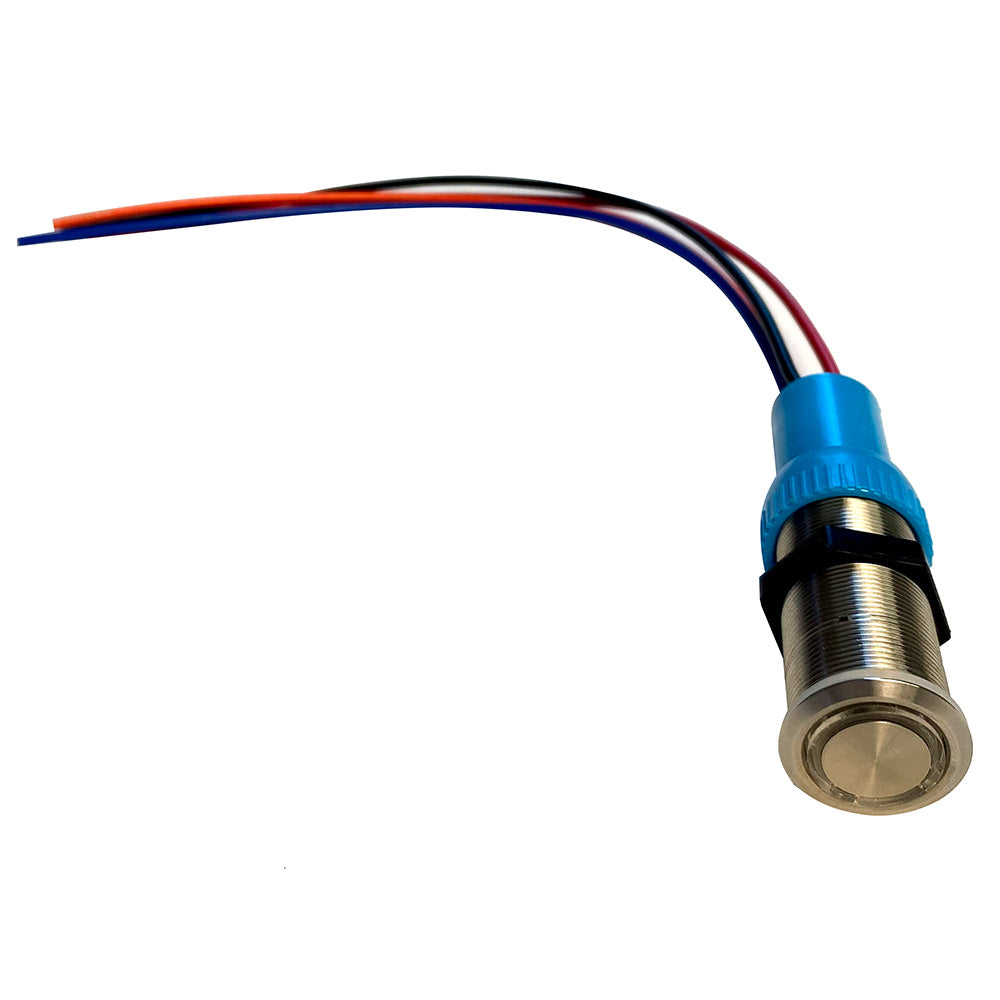

Bluewater 22mm Push Button Switch - Off/(On) Momentary Contact - Blue/Red LED - 1' Lead

Enhance your vessel's dashboard with our premium 22mm Push Button Switch, designed specifically for marine and boating applications. This robust switch not only adds a sleek, modern aesthetic but also ensures reliable performance in the harshest maritime environments.

Product Features

• Durable stainless-steel plated construction
• Waterproof rating of IP69K for superior protection against water and dust
• Backlit LED indicators for clear visibility in low-light conditions
• Momentary contact functionality for precise control
• Color-coded LEDs: Blue for Off and Red for On status
• 1-foot lead for flexible installation
• High mechanical and electrical life cycles for longevity

Technical Specifications

Attribute	Details
Function	Off/(On) Momentary Contact
LED Indicators	Blue (Off) / Red (On)
Rear Mark Page	Green dot
Switch Rating	15A / 12 – 24VDC
Material	Stainless Steel
Mechanical Life	50,000 cycles
Electrical Life	10,000 cycles

Marine-Grade Durability

Built to withstand the demanding conditions of marine environments, this push button switch features a stainless-steel plated body and an IP69K waterproof rating. Whether exposed to saltwater spray or submerged, the switch maintains its integrity and functionality, ensuring dependable operation on your boat.

Enhanced Visibility

Navigate your controls effortlessly even in the darkest settings. The integrated LED lights offer clear visual feedback, with blue indicating the Off position and red signaling when the function is active. This distinction helps prevent accidental activations and enhances overall safety on board.

Easy Installation

Installing the 22mm Push Button Switch is straightforward:

1. Drill a 22mm hole into any material up to 6mm thick.

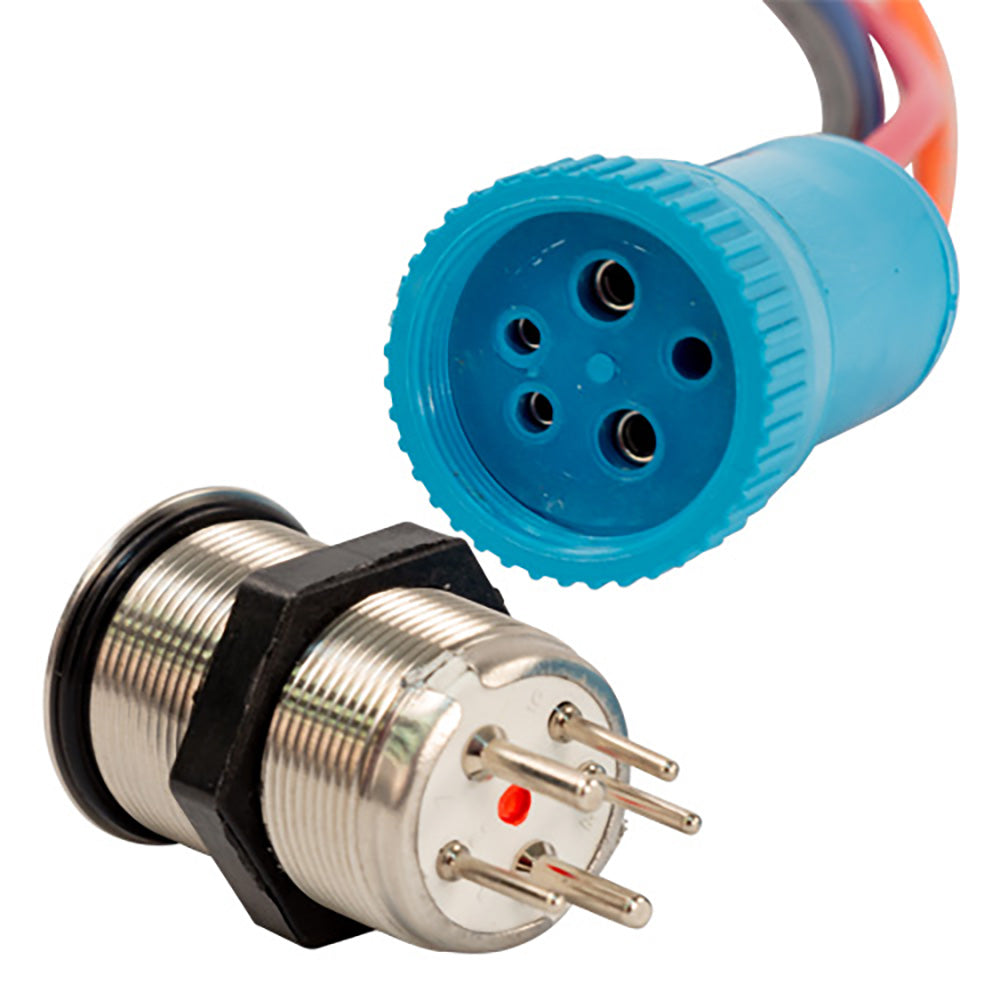

2. Connect the three color-coded contacts for the button to ensure safe and proper wiring.
3. Attach the two contacts for the LED indicators to complete the setup.

Designed with marine enthusiasts in mind, the 1-foot lead provides the flexibility needed for various installation scenarios on your vessel.

Download the Quick Guide (PDF) for detailed installation instructions and additional information.
