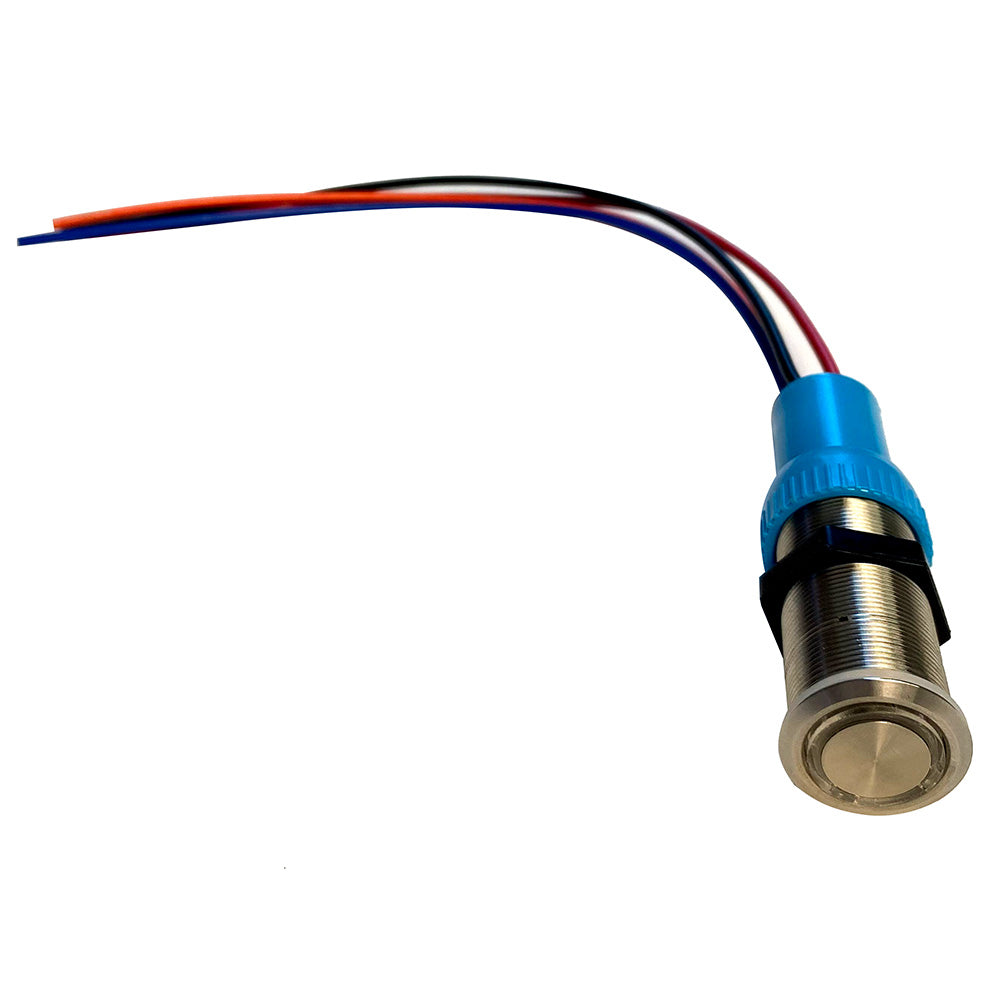

Bluewater 22mm Push Button Switch - Off/On Contact - Blue/Red LED - 1' Lead

The 22mm Push Button Switch is an essential component for marine and boating applications, offering reliable performance and enhanced visibility even in challenging maritime environments. Designed with stainless-steel plating and equipped with blue/red LEDs, this switch seamlessly integrates into any vessel's dashboard, providing both functionality and aesthetic appeal.

Features

• 1 ft. lead for flexible installation
• Durable stainless-steel construction
• Waterproof rating of IP69K for marine use
• Backlit LEDs with blue and red indicators for clear status visibility
• Long-lasting mechanical and electrical life cycles

Specifications

Waterproof and Durable Design

This push button switch is engineered to withstand the harsh conditions of marine environments. The stainless-steel plated body, combined with an included gasket, ensures a waterproof rating of IP69K, protecting the switch from water ingress and corrosion. This makes it ideal for use on boats, yachts, and other marine vessels where reliability and durability are paramount.

Enhanced Visibility

Equipped with backlit LEDs, the 22mm Push Button Switch offers unparalleled visibility in low-light conditions. The blue LED provides clear illumination during standard operation, while the red LED indicates when the function is active, ensuring that users are always aware of the switch's status, even at night.

Easy Installation

Installing the 22mm Push Button Switch is straightforward and requires minimal tools. Follow these steps:

1. Drill a 22mm hole into the desired material up to 6mm thick.

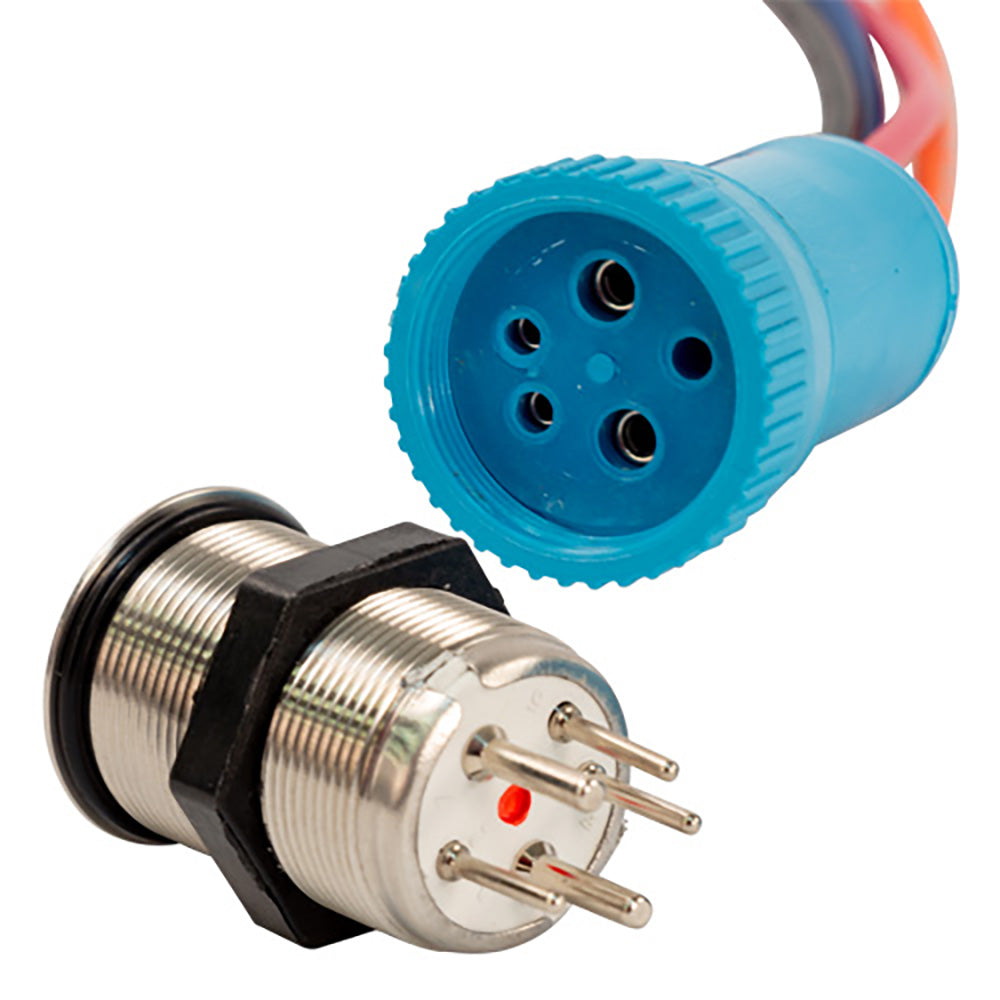

2. Connect the three color-coded contacts for the switch to ensure safety and ease of use.
3. Attach the two contacts for the LED to enable proper illumination.

For detailed instructions, refer to the Quick Guide (PDF).
