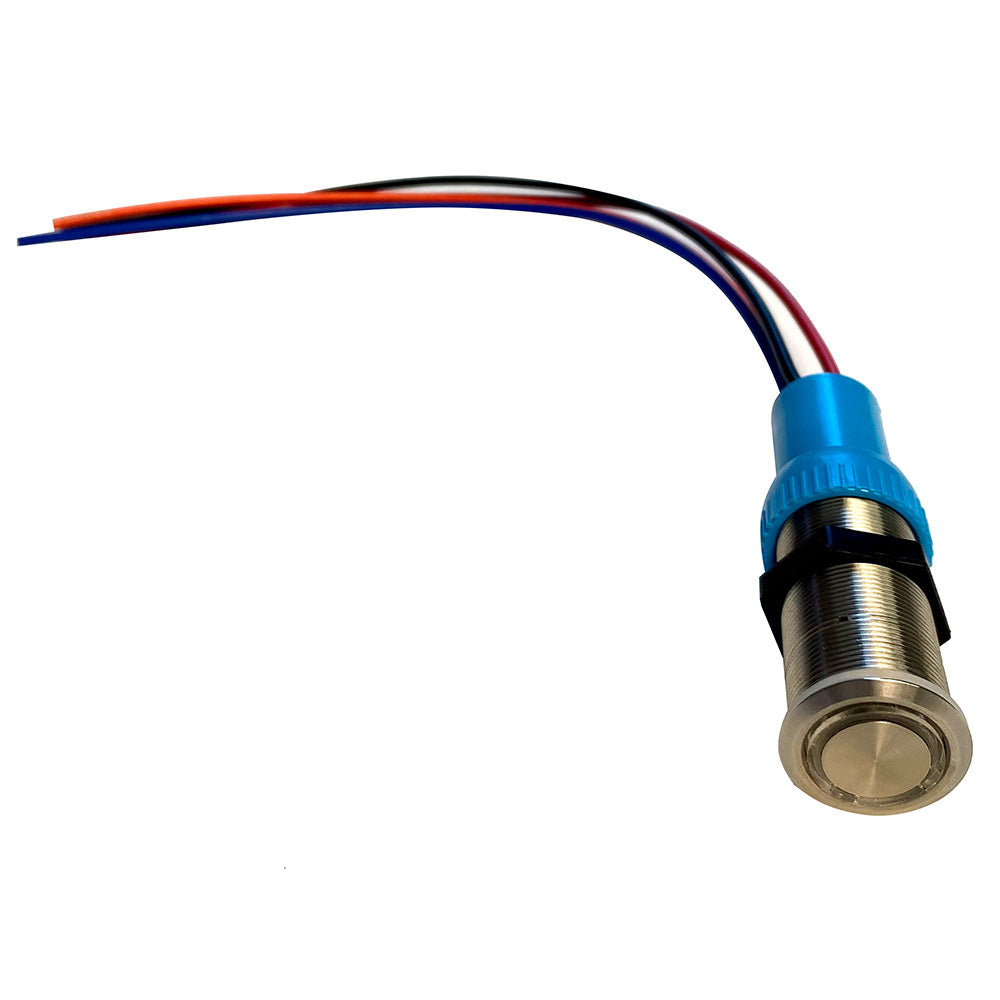

Bluewater 19mm Push Button Switch - Off/(On)/(On) Double Momentary Contact - Blue/Green/Red LED - 4' Lead

This robust 19mm Push Button Switch is the perfect addition to any marine dashboard, offering both functionality and a contemporary aesthetic. Engineered for boating environments, it ensures reliable performance and durability, even in challenging conditions.

Key Features

• Double momentary contact with Off/(On)/(On) functionality
• Stainless-steel plated metal construction for enhanced durability
• Waterproof rating of IP69K, ideal for marine applications
• Backlit LED indicators for clear visibility in low light conditions
• Changeable LED colors: Blue/Green for standard operation and Red to indicate active functions
• 4-foot lead for flexible installation
• Designed to withstand harsh marine environments with a mechanical life of 50,000 cycles and electrical life of 10,000 cycles

Technical Specifications

Installation Instructions

1. Drill a 19mm hole into any material up to 6mm thick, suitable for your marine dashboard or control panel.

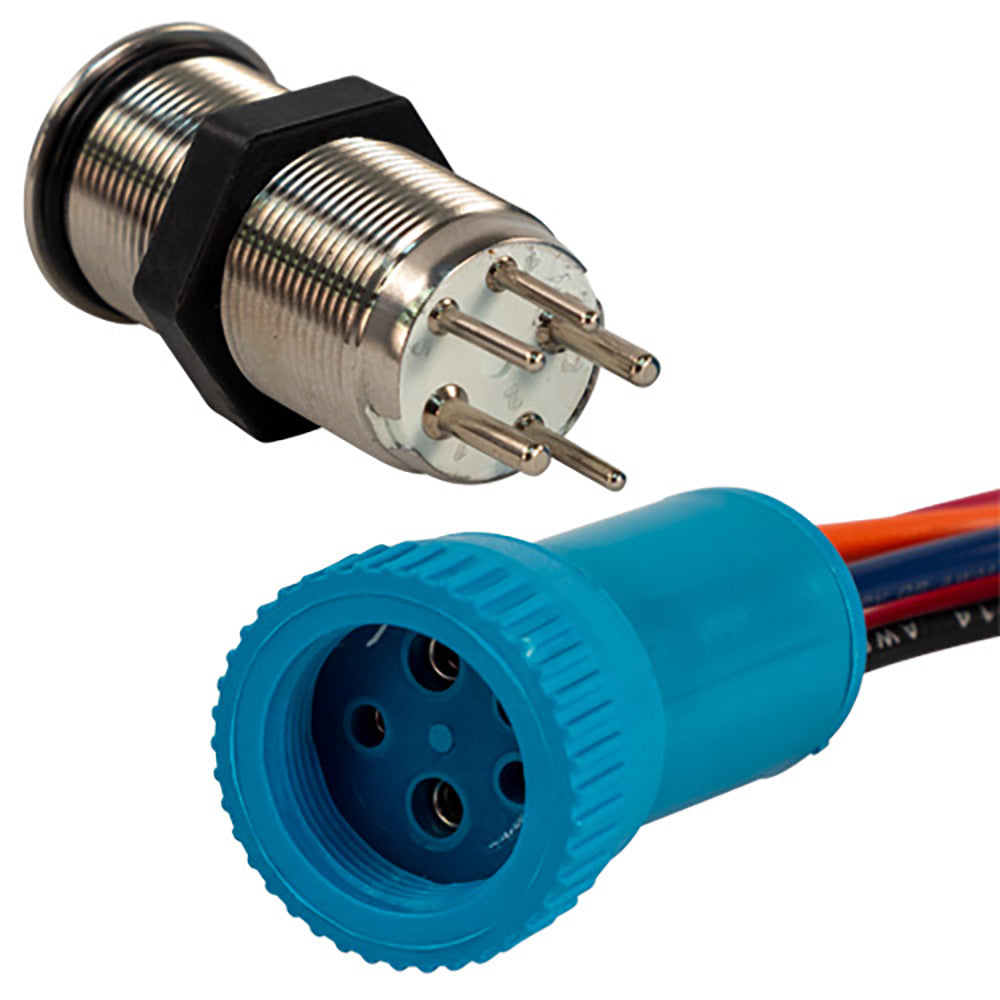

2. Connect the three contacts of the button, ensuring they are color-coded for safety and ease of installation.
3. Attach the two LED contacts to ensure proper backlighting functionality.
4. Secure the switch in place and ensure all connections are tight and waterproof.

Download the Quick Guide (PDF) for detailed instructions and additional information.
