Blue Sea Systems  |  SKU: LOS-63011  |  Barcode: 632085021368

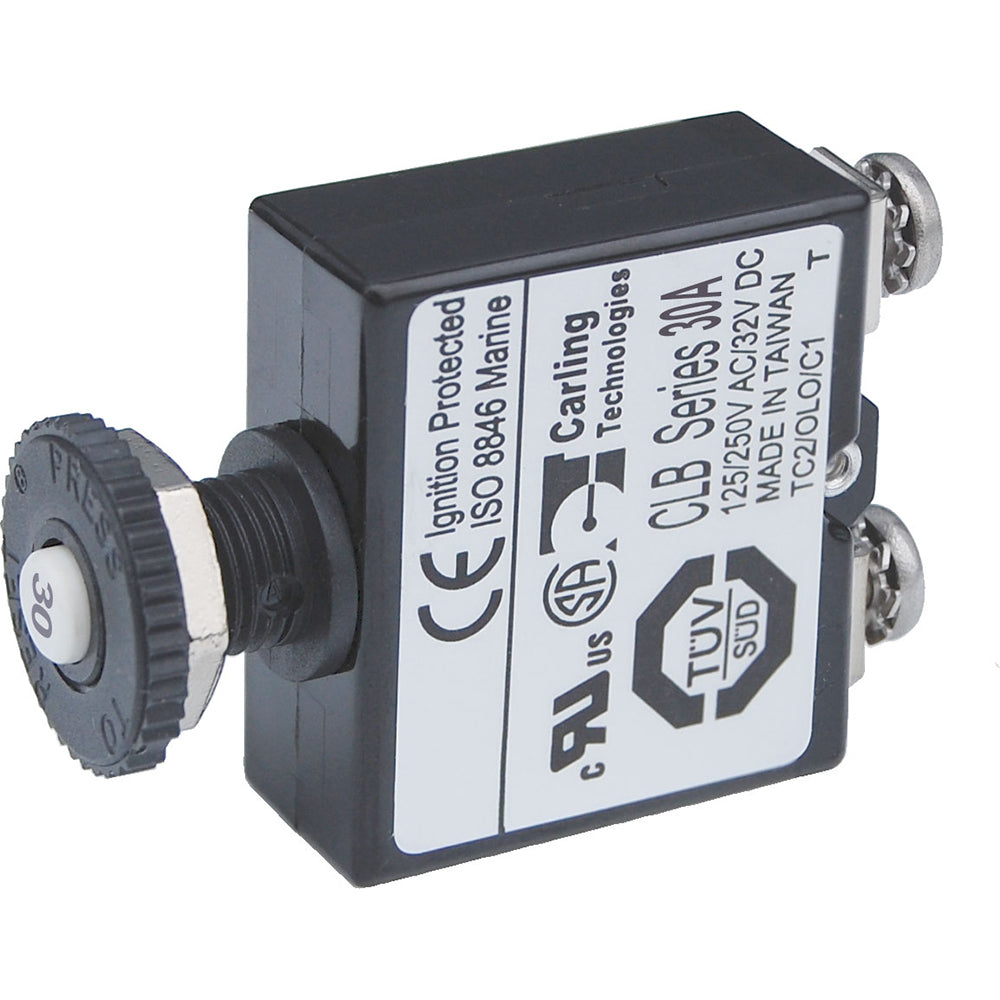

Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker - 30 Amps

$7.99 USD $11.99

Product Description

Ensure your marine electrical systems are safeguarded with our 30 Amp Push Button Reset Screw Terminal Circuit Breaker. Engineered specifically for marine and boating applications, this robust circuit breaker provides reliable protection against overcurrent scenarios while maintaining ease of operation and enduring performance in challenging marine environments.

Features

  • Versatile branch circuit protection suitable for 24-hour operations, ensuring continuous safety for your marine electrical systems.
  • Seamlessly integrates with Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels through quick connect terminal style connections.
  • Compact and space-efficient design allows for high-density circuit protection configurations, optimizing your panel space.
  • Convenient push-to-reset operation simplifies manual reset after a trip, enhancing user experience onboard.
  • "Trip Free" design ensures the circuit breaker cannot remain in the "ON" position during a fault current condition, enhancing safety.
  • Ignition protected, making it safe for installation aboard gasoline-powered boats by preventing ignition sources near wiring assemblies.
  • Optional Push Button Waterproof Boot provides additional protection for circuit breakers in wet environments, replacing traditional dress nut mounting, and offering resistance against discoloration and cracking.

Specifications

Amperage 30A
Maximum Voltage 32V DC
Mounting Panel Mount 3/8-27 UNS
Circuit Breaker Type Thermal trip, manual push-button reset only
Terminal Type #8 Screw
Interrupt Capacity 3000A @ 14.7V / 2500A @ 28V
Operating Temperature -10° C to 60° C
Screw Terminal Torque 6 in-lb (0.68 Nm)
Weight 0.09 lb (0.04 kg)
Box Dimensions 1"H x 3"W x 5"L
UPC 632085021368

Safety Information

Warning WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
