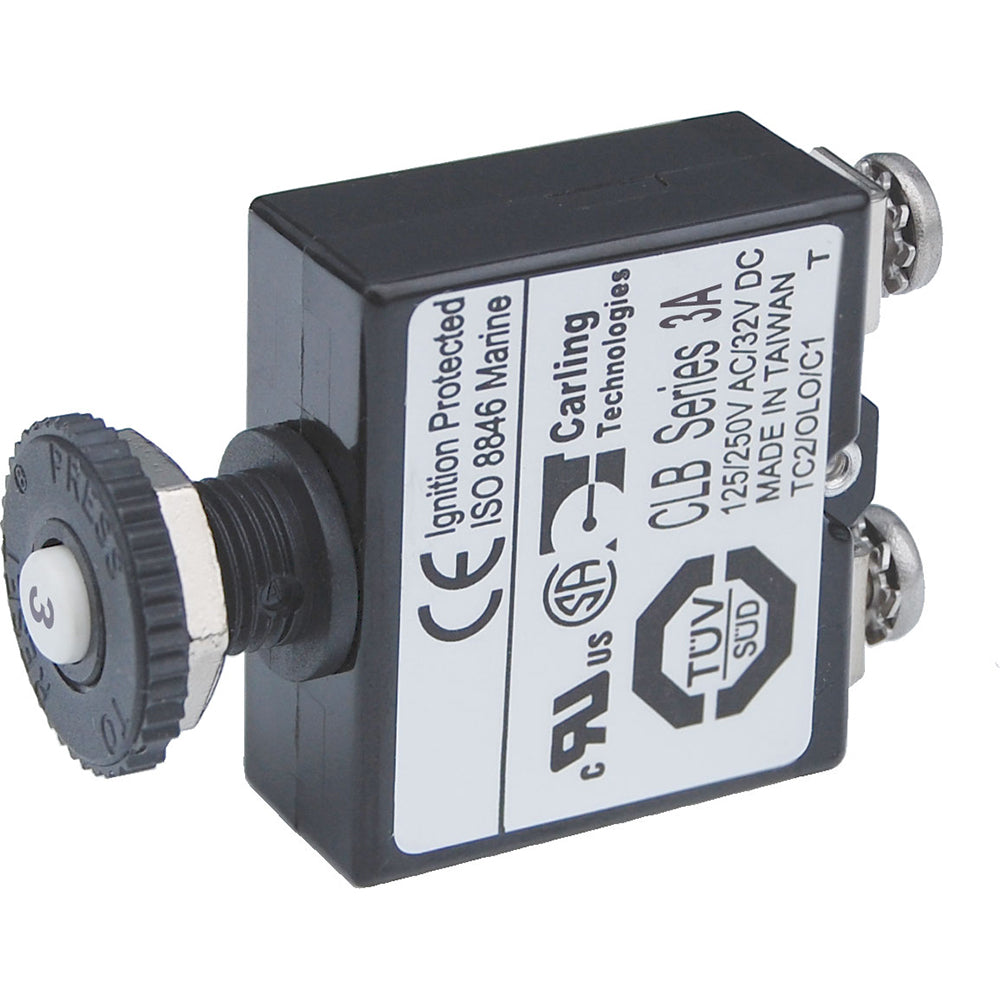

Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker - 3 Amps

The Push Button Reset Only Screw Terminal Circuit Breaker - 3 Amps is an essential component for marine electrical systems, providing reliable protection for your boat’s electrical circuits. Designed specifically for the harsh marine environment, this circuit breaker ensures safe and efficient operation of your vessel's electrical infrastructure.

Features

• Suitable for branch circuit protection and 24-hour circuit monitoring
• Compatible with Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels through quick connect terminal style
• Compact design allows for high-density circuit protection configurations, maximizing panel space
• Easy push-to-reset operation for swift troubleshooting and maintenance
• "Trip Free" mechanism ensures the breaker cannot remain in the "ON" position during fault conditions, enhancing safety
• Ignition protected, making it safe for installation on gasoline-powered boats
• Optional Push Button Waterproof Boot available to protect the circuit breaker in wet environments. This replaces the dress nut mounting and is resistant to discoloration and cracking

Specifications

Amperage	3A
Maximum Voltage	32V DC
Mounting	Panel Mount 3/8-27 UNS
Circuit Breaker Type	Thermal trip, manual push-button reset only
Terminal Type	#8 Screw
Interrupt Capacity	3000A @ 14.7V / 2500A @ 28V
Operating Temperature Range	-10°C to 60°C
Screw Terminal Torque	6 in-lb (0.68 Nm)
Weight	0.09 lb (0.04 kg)
Box Dimensions	1"H x 3"W x 5"L
UPC	632085021290

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
