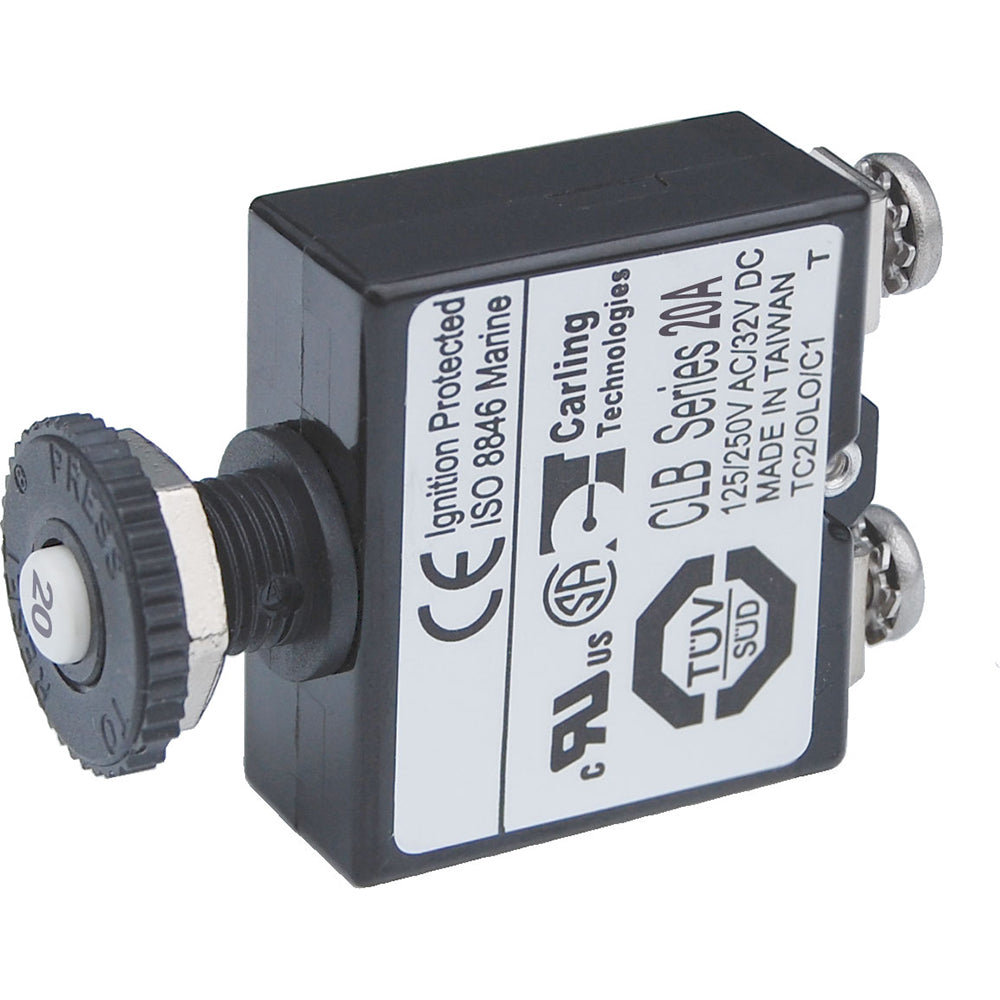

Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker - 20 Amps

The 20 Amp Push Button Reset Screw Terminal Circuit Breaker is an essential component for marine electrical systems, offering reliable protection and ease of use for your vessel's electrical circuits. Designed specifically for the demanding marine environment, this circuit breaker ensures continuous safeguarding and enhances the safety and efficiency of your boat’s electrical setup.

Key Features

• Provides robust branch circuit protection suitable for 24-hour continuous operation, ensuring your marine electrical systems remain secure.
• Seamlessly integrates with Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels via quick connect terminals.
• Compact design facilitates high-density circuit protection arrangements, maximizing space within your boat’s electrical panels.
• User-friendly push-to-reset feature allows for quick and effortless resetting after a trip event, minimizing downtime.
• Equipped with an innovative "Trip Free" mechanism that prevents the breaker from staying in the "ON" position during fault conditions, significantly enhancing safety.
• Ignition protected construction ensures safe installation on gasoline-powered vessels, preventing the ignition of flammable vapors.
• Optional Push Button Waterproof Boot available to protect the circuit breaker in wet environments, offering superior resistance to discoloration and cracking for long-term durability.

Technical Specifications

Specification	Details
Amperage	20A
Maximum Voltage	32V DC
Mounting Type	Panel Mount with 3/8-27 UNS thread
Circuit Breaker Type	Thermal trip with manual push-button reset only
Terminal Type	#8 Screw terminals for secure connections
Interrupt Capacity	3000A at 14.7V DC / 2500A at 28V DC
Operating Temperature Range	-10°C to 60°C
Screw Terminal Torque	6 in-lb (0.68 Nm)
Weight	0.09 lbs (0.04 kg)

Additional Specifications

Specification	Details
Box Dimensions	1" H x 3" W x 5" L
Weight	0.1 lbs
UPC	632085021344
