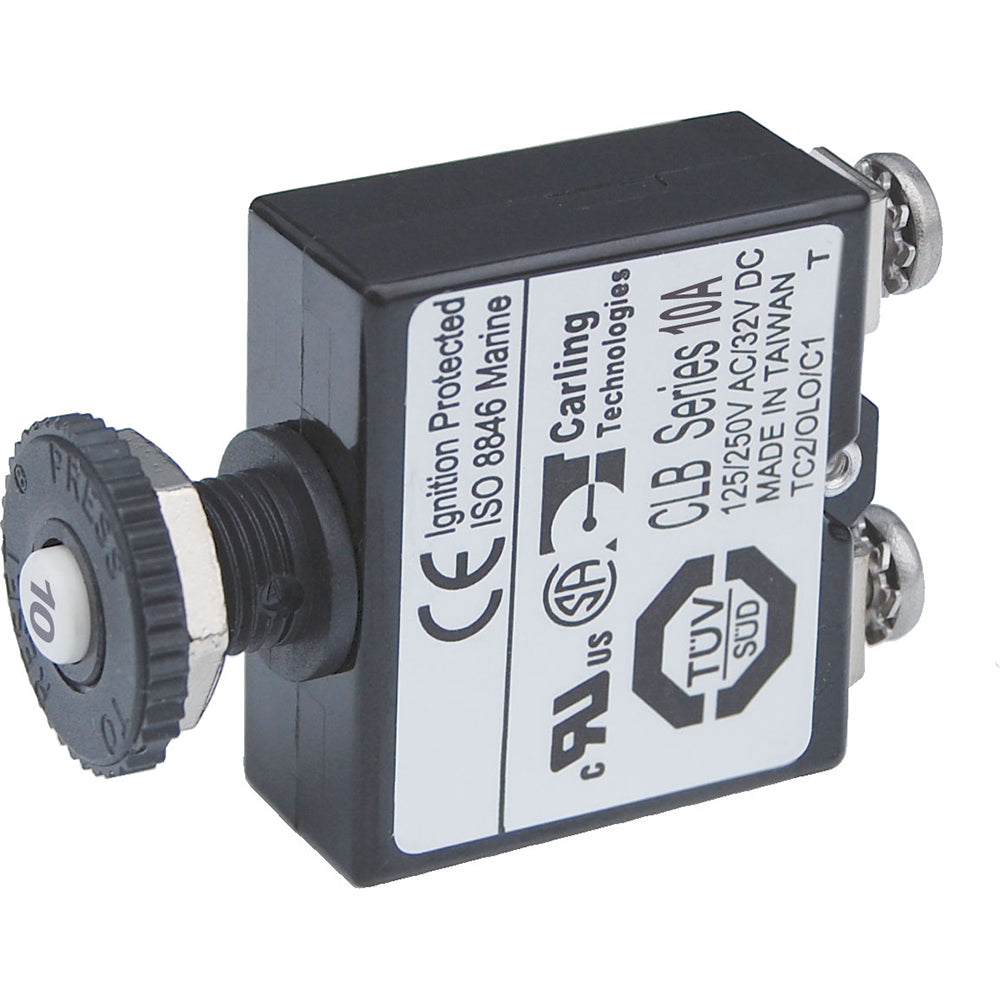

Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker - 10 Amps

Enhance your marine electrical system with our Push Button Reset Only Screw Terminal Circuit Breaker - 10 Amps. Designed for reliability and ease of use, this circuit breaker is perfect for protecting your boat’s electrical circuits and ensuring safe operation in demanding marine environments.

Features

• Ideal for branch circuit protection and 24-hour circuit safeguarding
• Compatible with Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels featuring quick connect terminal style
• Compact design allows for high-density circuit protection configurations, maximizing your panel space
• Easy push-to-reset operation for swift circuit restoration
• "Trip Free" mechanism ensures the breaker cannot remain "ON" during fault current conditions, enhancing safety
• Ignition protected, making it safe for installation on gasoline-powered boats
• Optional Push Button Waterproof Boot available to protect the circuit breaker in wet environments, replacing dress nut mounting and resisting discoloration and cracking

Specifications

Attribute	Details
Amperage	10A
Maximum Voltage	32V DC
Mounting	Panel Mount 3/8-27 UNS
Circuit Breaker Type	Thermal trip, manual push-button reset only
Terminal Type	#8 Screw
Interrupt Capacity	3000A @ 14.7V / 2500A @ 28V
Operating Temperature Range	-10°C to 60°C
Screw Terminal Torque	6 in-lb (0.68 Nm)
Weight	0.09 lb (0.04 kg)
Box Dimensions	1"H x 3"W x 4"L
Weight (Box)	0.3 lbs
UPC	632085021320
