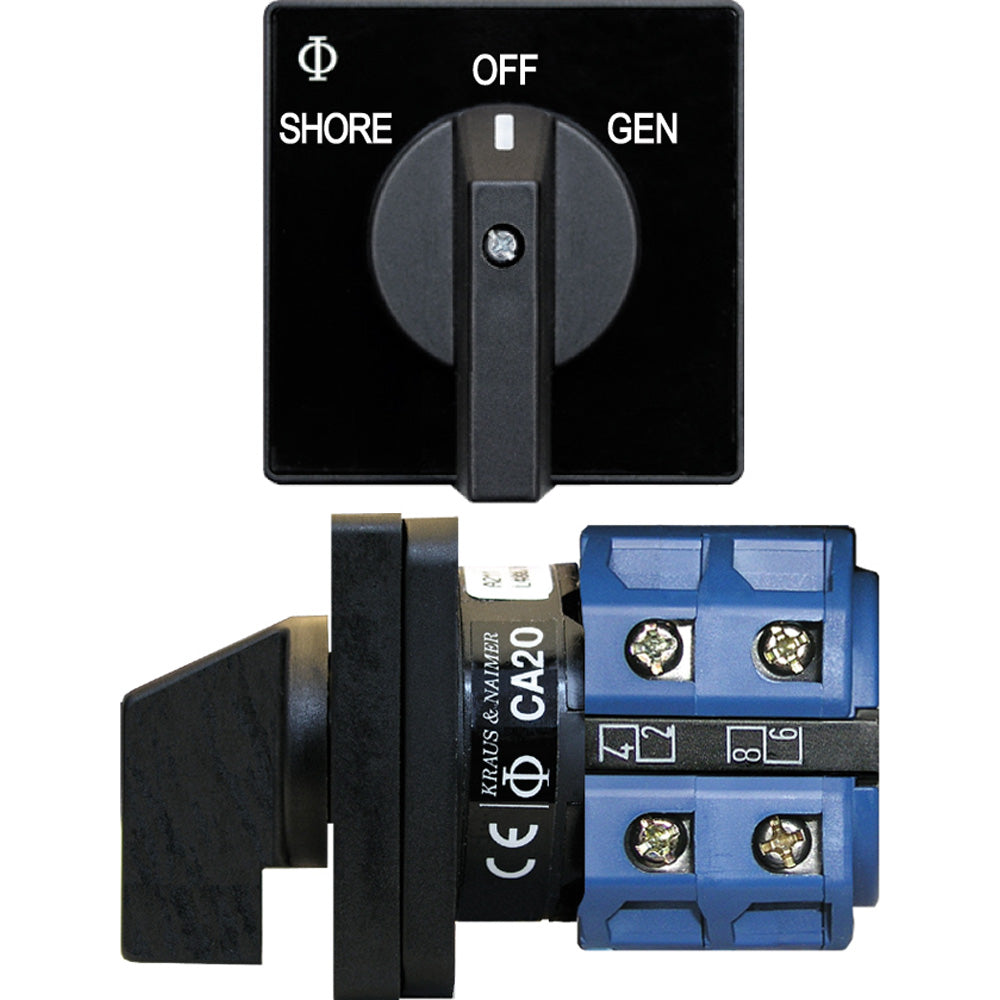

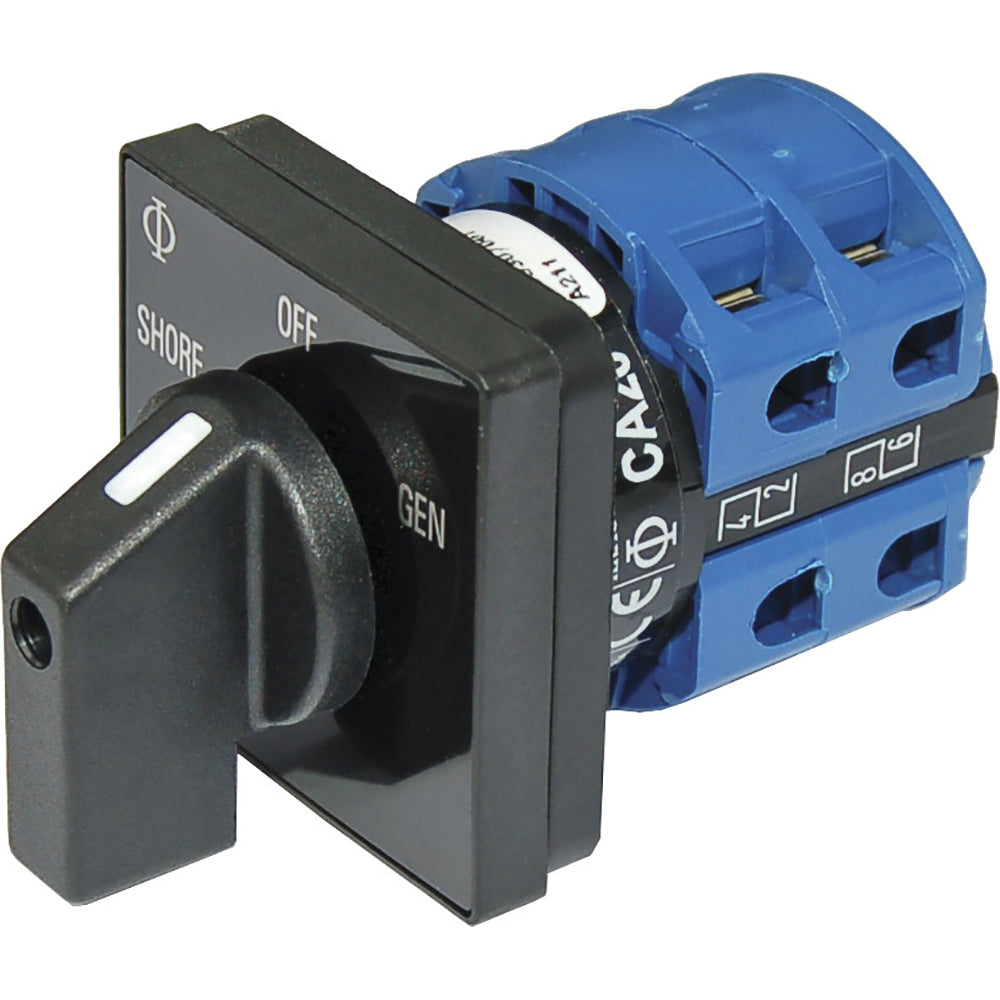

Blue Sea 9009 Switch, AC 120VAC 32A OFF +2 Position

Upgrade the electrical management on your vessel with our robust 9009 AC Switch, specifically designed for marine and boating applications. This heavy-duty switch ensures reliable performance and seamless control over multiple AC power sources, making it an essential component for your boat's electrical system.

Key Features

• Dual AC Source Switching: Effortlessly switch between two 120 or 230 Volt AC sources, providing flexibility and reliability for your boat's electrical systems.
• Compact Design: Easily mounts in panels up to 0.16" (4.00mm) thick, making it ideal for tight and space-constrained marine electrical enclosures.
• Heavy Duty Construction: Industrial-rated for demanding marine environments, ensuring long-lasting performance even in harsh conditions.
• Intuitive Operation: Designed for one-hand operation, allowing you to switch power sources quickly and safely while navigating your vessel.
• Safety Certified: UL listed for compliance with industry safety standards, providing peace of mind for your marine electrical installations.
• High Voltage Capacity: Capable of handling up to 600 Volt AC, suitable for a wide range of marine electrical applications.

Technical Specifications

Amperes	32
Positions	2+OFF
Poles	2
Voltage Rating	120VAC
Maximum Voltage	600VAC
Color	Black
Box Dimensions	4" H x 5" W x 7" L
Weight	0.5 lbs
UPC	632085090098

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

Owner's Manual (PDF)
