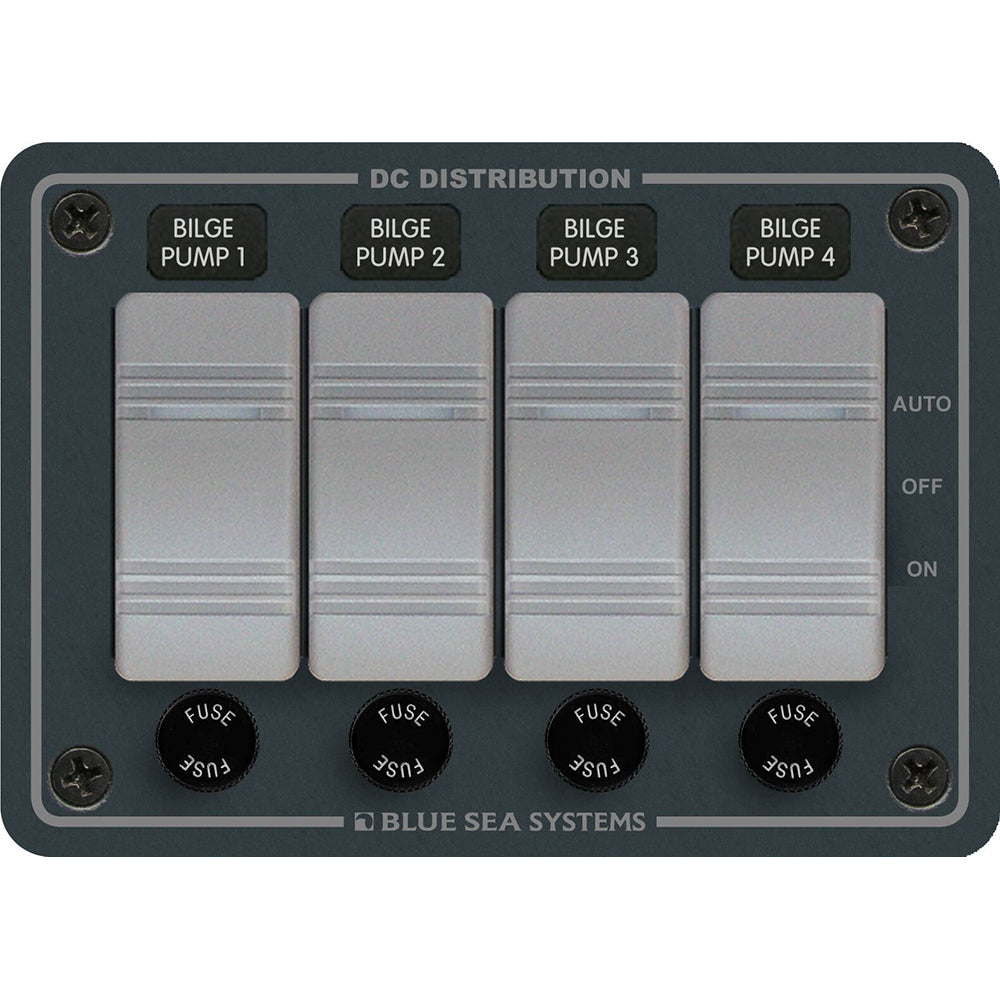

Blue Sea 8666 Contura 4 Bilge Pump Control Panel

The 8666 Contura 4 Bilge Pump Control Panel by Blue Sea Systems offers a robust and water-resistant solution for effectively managing your boat's bilge pumps. Engineered for both 12V and 24V DC systems, this control panel provides seamless control and monitoring for up to four bilge pumps, ensuring your vessel remains safe and dry.

Key Features

• Compatible with 12V or 24V DC electrical systems, providing versatile installation options.
• Equipped with an ON - OFF - AUTO Contura rocker switch for intuitive pump control.
• Includes a watertight mounting gasket to protect against moisture and corrosion.
• Fuse holders accommodate widely available AGC and MDL glass fuses, supporting up to 20 amps.
• Integrated "ON” LED indicator within the switch signals active pump operation.
• Pre-wired and ready for straightforward installation, minimizing setup time.

Technical Specifications

Feature	Details
Weather Protection	Water Resistant
Number of Bilge Pumps	4
Nominal Voltage	12/24V DC
Panel Cumulative Rating	45A
Switch Rating	20A @ 12V DC / 15A @ 24V DC
Dimensions (H x W x D)	3.75" x 5.25" x 3"
Action	ON - OFF - AUTO
Color	Black/Grey
Throw/Pole	SPDT
Box Dimensions	5"H x 7"W x 9"L
Weight	0.75 lbs
UPC	632085086664

Included Components

• Four (4) Panel Mount AGC/MDL Fuse Holders (P/N 5021)
• Four (4) Contura III Switch SPDT - On - OFF - (ON) (P/N 7944)
• Black 60 Label Set (P/N 8214)

Please note: This control panel is sold individually.

Installation and Usage

The 8666 Contura 4 Bilge Pump Control Panel is designed for easy installation on your vessel. The watertight mounting gasket ensures secure and moisture-resistant placement, while the pre-wired setup allows for quick connection to your existing bilge pumps. The SPDT Contura switches provide reliable control with clear LED indicators, making it simple to monitor pump activity and maintain optimal bilge conditions.

Additional Resources

Download the Owner's Manual (PDF)
