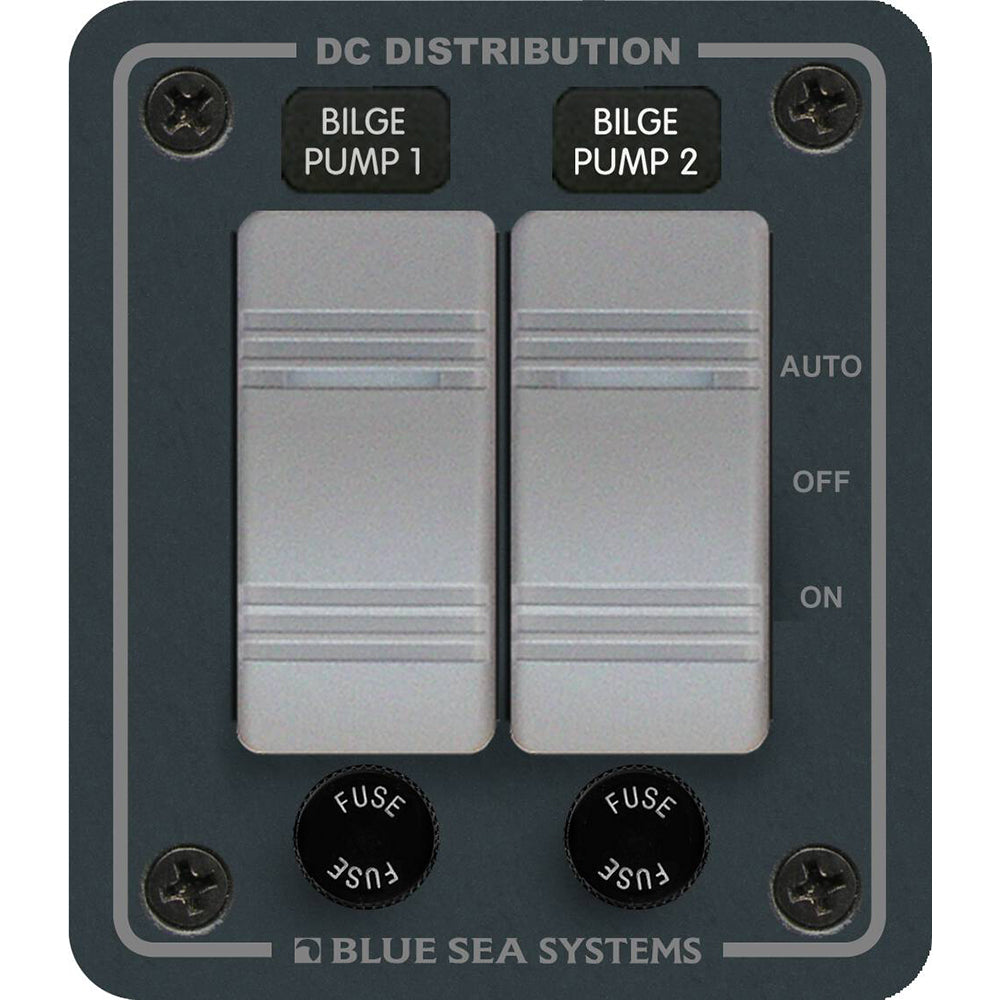

Blue Sea 8664 Contura 2 Bilge Pump Control Panel

The 8664 Contura 2 Bilge Pump Control Panel by Blue Sea Systems is a robust and reliable solution designed to manage your boat's bilge pumps efficiently. Engineered for marine environments, this control panel ensures optimal performance and safety for your vessel's bilge system.

Key Features

• Compatible with both 12V and 24V DC marine electrical systems
• Contura III rocker switch with ON, OFF, and AUTO settings for versatile control
• Water-resistant construction with a watertight mounting gasket for enhanced durability
• Secure fuse holders accommodating standard AGC and MDL glass fuses up to 20A
• Integrated "ON” LED indicator provides real-time status of the bilge pump operation
• Pre-wired and ready for straightforward installation on your vessel

Technical Specifications

Specification	Details
Power Supply	12V/24V DC
Number of Bilge Pumps	2
Panel Cumulative Rating	45A
Switch Rating	20A @ 12V DC / 15A @ 24V DC
Action	ON - OFF - AUTO
Color	Black/Grey
Throw/Pole	SPDT
Dimensions (H x W x D)	3.75" x 3.34" x 3"
Box Dimensions	5" H x 7" W x 8" L
Weight	0.5 lbs
UPC	632085086640
Weatherproof	Yes, Water Resistant

Included Components

• Two (2) Panel Mount AGC/MDL Fuse Holders (P/N 5021)
• Two (2) Contura III SPDT Switches with On, Off, and Anchor (P/N 7944)
• Black 60 Label Set for easy identification and labeling (P/N 8214)

Note: Sold as an individual unit.

Installation & Usage

The 8664 Contura 2 Bilge Pump Control Panel comes fully wired, simplifying the installation process on your boat. Whether you're upgrading your existing bilge system or installing a new one, this control panel offers seamless integration with minimal effort.

Support & Resources

For detailed installation instructions and operational guidelines, please refer to the Owner's Manual (PDF).
