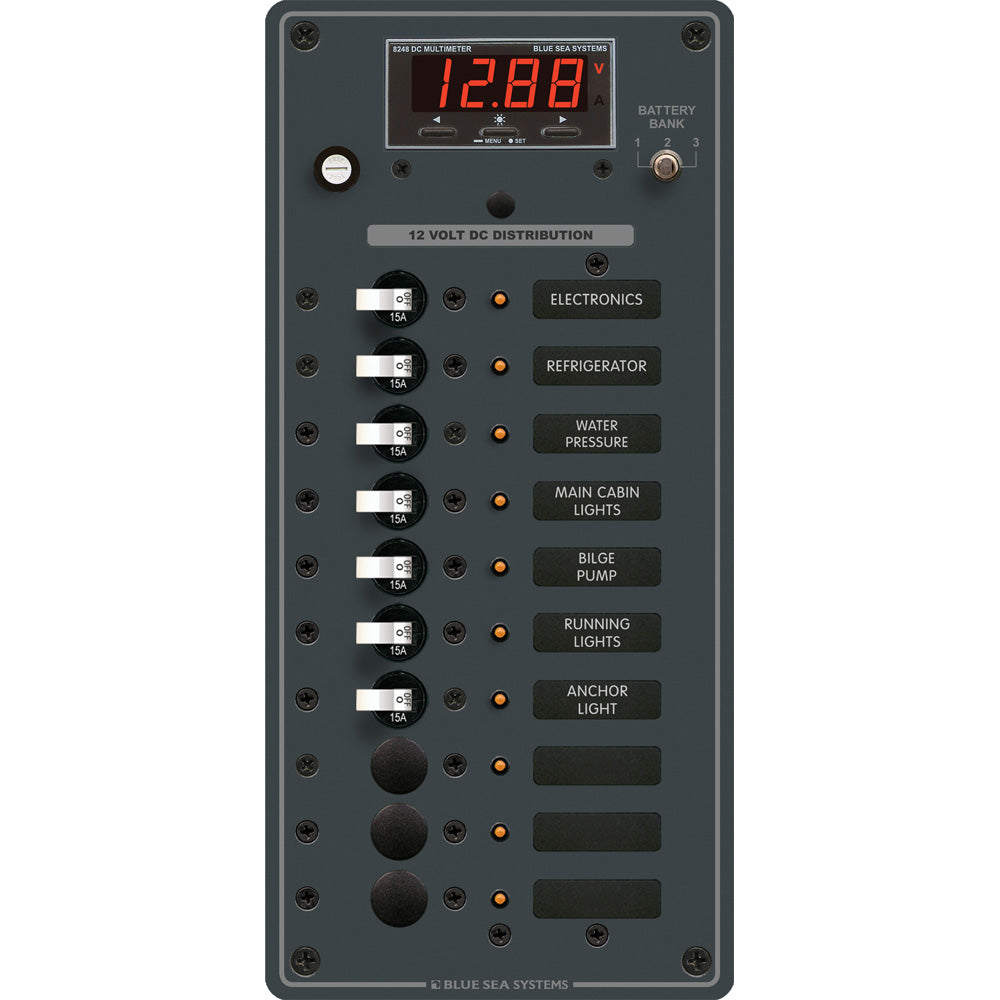

Blue Sea 8402 DC 10 Position w/Multi-Function Meter

The 8402 DC 10 Position with Multi-Function Meter is an essential component for marine electrical systems, offering precise monitoring and control for your boat's power setup. Designed for durability and ease of installation, this meter ensures your marine electrical circuits are efficiently managed and protected. ### Features

• Voltage Compatibility: Operates on 12 VDC and 24 VDC systems.
• Amperage Capacity: Supports up to 100A.
• Pre-Wired Installation: Includes all positive, negative, and grounding buses for a hassle-free setup.
• Battery Bank Support: Equipped with toggle switches to manage up to 3 battery banks.
• Upgradable Meters: Analog meters can be upgraded to 24 Volts using 8240 or 8243 (18-32V DC meters).
• Backlit Labels: All circuit label positions are backlit on standard panels—no additional kit required.
• Indicator LEDs: "ON" LEDs installed in all circuit positions for easy monitoring.
• Corrosion Resistant: Finished with MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance.
• Durable Finish: Two-part polyurethane in slate gray for a sleek, marine-grade appearance.
• Robust Construction: Made from heavy 1/8" aluminum 5052 alloy for durability.
• Standard Sizing: Industry-standard height and width for compatibility with most marine panels.
• Easy Mounting: Features countersunk mounting holes throughout for secure installation.
• Comprehensive Documentation: Includes detailed installation instructions and a cutout template.
• Label Sets: Comes with a set of 30 common Large Format Panel Labels, with over 500 individual labels available.

### Specifications

Parameter	Details
Voltage	12V / 24V DC
Max Breaker Quantity	10
AC/DC	DC
Box Dimensions	6" H x 10" W x 12" L
Weight	4 lbs
UPC	632085084028

### Downloads

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)
