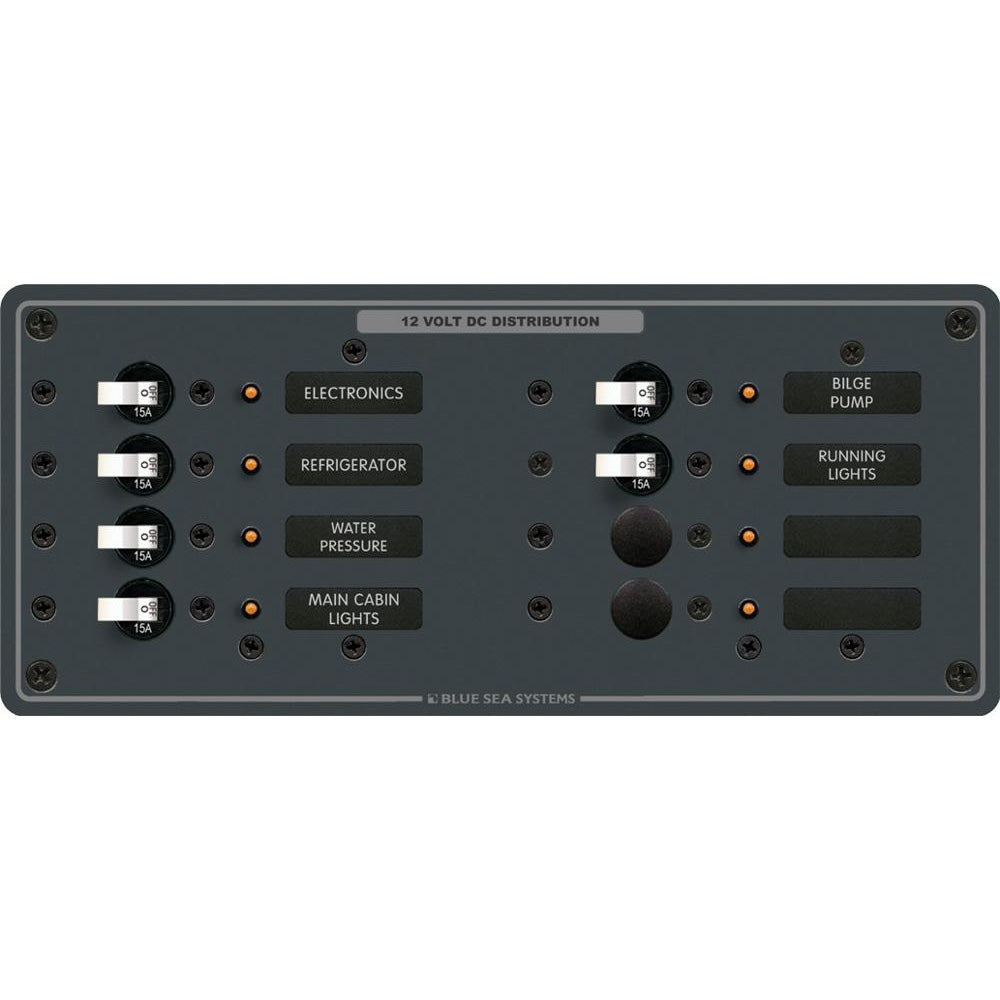

Blue Sea 8385 DC 8 Position Horizontal

The 8385 DC 8-Position Horizontal Panel is a highly reliable electrical distribution solution tailored for marine and boating applications. Engineered for durability and efficiency, this panel ensures optimal management of your vessel’s electrical systems with ease and precision.

Key Features

• Voltage: 12 VDC / 24 VDC
• Amperage: 100A
• Fully pre-wired with all positive, negative, and grounding buses installed
• Equipped with toggle switches for mounting up to 3 battery banks
• Panels with analog meters are upgradeable to 24 Volts using 8240 or 8243 (18-32V DC meters)
• Backlit circuit label positions on standard panels – no additional kit required
• "ON" indicating LEDs installed in all circuit positions for easy monitoring
• MIL-C-5541C or equivalent immersion undercoating provides lifetime corrosion resistance
• Finished with a two-part polyurethane slate gray coating for a sleek look
• Constructed from heavy 1/8" aluminum 5052 alloy for enhanced durability
• Industry-standard height and width for seamless integration into your marine setup
• Countersunk mounting holes throughout for secure and easy installation
• Includes detailed installation instructions and a precise cutout template
• Comes with a set of 30 common Large Format Panel Labels for immediate use
• Access to over 500 individual labels for customized configurations

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Technical Specifications

Max Breaker Quantity	8
AC/DC	DC
Voltage	12/24V
Box Dimensions	5"H x 9"W x 12"L
Weight	3 lbs
UPC	632085083854

Additional Resources

Quick Guide (PDF)
Owner's Manual (PDF)
