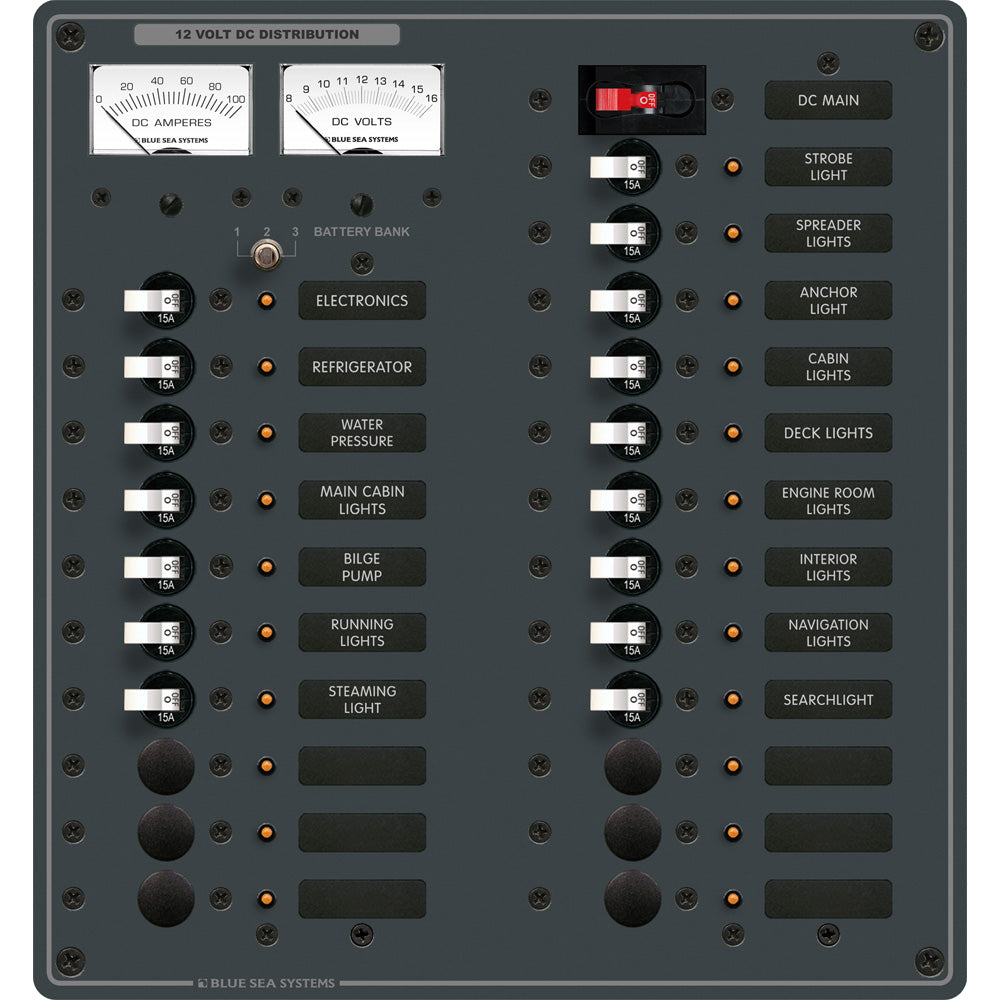

Blue Sea 8380 DC Main + 22 Position

The Main + 22 Position Marine Electrical Panel is the ultimate solution for managing your vessel's electrical systems. Designed specifically for marine and boating applications, this robust panel ensures reliable power distribution, enhanced safety, and effortless installation, making it an essential component for any serious boat owner.

Included Components

• (16) 15A Single Pole Circuit Breakers
• (1) 100A C-Series Main Circuit Breaker
• (1) 8028 DC Micro Voltmeter
• (1) 8250 DC Analog Micro Ammeter
• White Switches

Features

• Pre-installed positive, negative, and grounding buses for streamlined setup
• Fully pre-wired panels for quick and easy installation
• Toggle switch included for mounting up to three battery banks
• Owner-upgradable to 24 Volts with 8240 or 8243 (supports 18-32V DC meters)
• Backlit circuit label positions on standard panels - no additional kit required
• Integrated "ON" LEDs in all circuit positions for clear status indication
• MIL-C-5541C or equivalent immersion undercoating ensures lifetime corrosion resistance
• Durable two-part polyurethane slate gray finish for a sleek appearance
• Constructed from heavy-duty 1/8" aluminum 5052 alloy for superior strength
• Conforms to industry-standard height and width for compatibility
• Countersunk mounting holes throughout for secure and flush installation
• Comprehensive installation instructions and cutout template included
• Includes a set of 30 common Large Format Panel Labels for easy identification
• Access to over 500 individual labels for customized labeling needs

Specifications

Maximum Breaker Quantity	22
Power Type	DC
Voltage	12V
Box Dimensions	7" H x 14" W x 22" L
Weight	8.3 lbs
UPC	632085083809

Compliance Notice

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Downloadable Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
