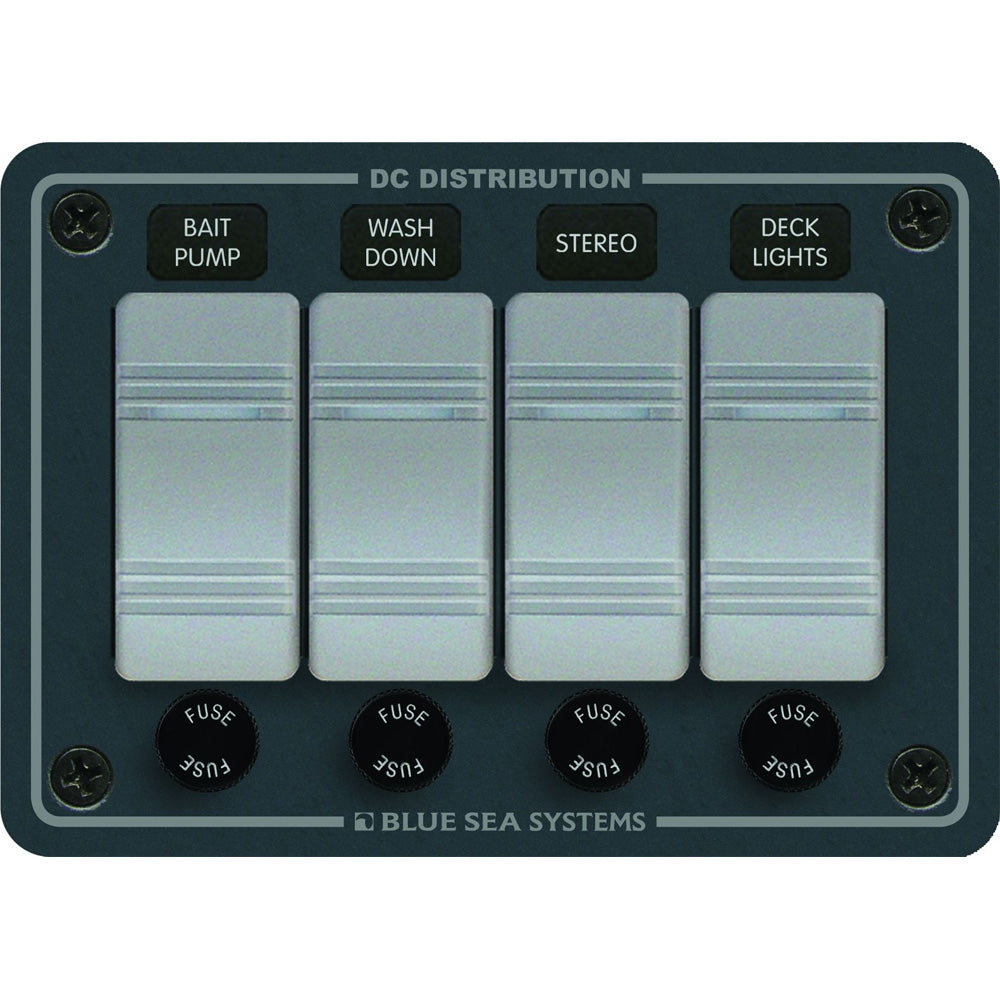

Blue Sea 8262 Waterproof Panel 4 Position - Slate Grey

The 8262 Waterproof Panel 4 Position in Slate Grey is the perfect addition to your marine vessel, offering robust performance and reliable control in demanding marine environments. Engineered to withstand harsh weather conditions, this panel ensures seamless operation for all your above deck applications.

Key Features

• Durable construction designed to resist salt spray, rain, hose washdowns, and momentary immersions common in marine settings.
• Optimized for flybridge and open cockpit applications, providing versatile installation options.
• Equipped with ON-OFF Contura switches for intuitive control.
• Embedded ON-indicating LEDs in switches for clear operational status.
• Includes a watertight mounting gasket to ensure secure and leak-free installation.
• Countersunk mounting holes throughout for a sleek, flush fit.
• Finished with a two-part polyurethane slate gray coating for enhanced durability and aesthetic appeal.
• Meets industry standard height and width for compatibility with a wide range of marine equipment.
• Protected with Mil-Spec chemical treatment via immersion, safeguarding all surface details from corrosion.
• Completely wired and ready for immediate installation, simplifying the setup process.

Technical Specifications

Feature	Details
Waterproof	Resistant
Application	DC
Positions	4
Voltage	12V / 24V
Panel Cumulative Rating	45A
Switch Rating	20A @ 12V DC / 15A @ 24V DC
Dimensions	Height: 3.75" | Width: 5.25" | Depth: 3"
Box Dimensions	5"H x 7"W x 9"L
Weight	0.8 lbs
UPC	632085082628

What's Included

• 4 x 5021 Panel Mount AGC/MDL Fuse Holders
• 1 x 8214 Black 60 Label Set
• 4 x 8230 Contura Switch SPST Gray - Off-On

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

Owner's Manual (PDF)
